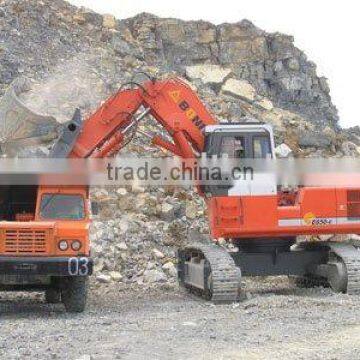

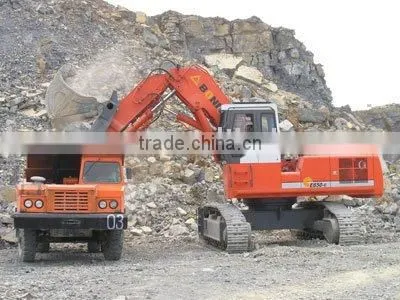

Face Shovel ExcavatorCED650-5

Main Technology Data of Hydraulic Excavator CED650-6

No.        Item       Unit        Date

                              Face shovel        Backhoe

1     Machine weight     t     65   63

2     Bucket capacity     Standard        m 3        4.0 3.0

              Range     m 3        3.5~5.0 2.7~4.0

3     Electromotor Model       Y315L2-4

              Power /Speed        kW/rpm 200/1480

              Voltage   V    380

4     Hydraulic system   Type        Crossing power variable system with two pumps and two loops

              Max. pressure of main oil circuit MPa       30

              Max. flow of main oil circuit        L/min     2×400

              Operating style        Pilot control

              Hydraulic oil tank capacity    L     650

5     Performance Swing speed r/min      6.0

              Travel speed km/h      3.0

              Max. pulling force        kN 460

              Gradeability    %   70

              Ground pressure    MPa       0.096

              Circulating time of operation        s     24

6     Working date Boom length   mm        4200      7100

              Stick length    mm        2800      3000

              Max. digging radius      mm         9061     11950

              Max. digging depth       mm        3200       7704

              Max. digging height      mm        9521       10542

              Max. unloading height   mm         7911     7158

              Max. digging force of stick   kN 174        174

              Max. breakout force of bucket     kN 214        214

Main Components of Hydraulic Excavator CED650-6

No.        Component    Type      Manufacturer

1     Electromotor Y315L2-4      Chongqing Electromotor/ China

2     Main pump    A11VO260     Rexroth /Germany

3     Main Valve     8M8       Rexroth /Germany

4     Double join valves MO/2MO       Rexroth /Germany

5     Swing motor A2FE125       Rexroth /Germany

6     Swing reduction gear    GTB80   Rexroth /Germany

7     Travel motor A2FE125       Rexroth /Germany

8     Travel reduction gear    GFT110 Rexroth /Germany

9     Armrest pilot valve        4TH6E   Rexroth /Germany

10   Foot pedal pilot valve    2TH6R   Rexroth /Germany

11   Logical valve 026710   Rexroth /Germany

12   Solenoid valve       4WE      Rexroth /Germany

13   Driver’s seat DS-85H Grammer

14   Hydraulic hose + System seal         Parker/America

15   Cylinder seal   Trelleborg/America

16   Automatic lubricating system         BEKA/Germany orLINCOLN/America

17   Track assembly       ITM or Berco/Italy

18   Air-condition system       Wuhan Jindong /China
