Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Yuchai YC15-8 Mini Excavator/1.5 Ton Crawler Excavator
US$ 15,000 - 19,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
yuchai
Model Number:
yuchaI15-5
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangxi, China
Brand Name
yuchai
Model Number
yuchaI15-5
Condition
New
Moving Type
Crawler Excavator
Operating Weight
1.5 ton
Bucket capacity
0.04m3
Maximum Digging Height
2.4
Maximum Digging Depth
1.5
Machine Weight
1650kg
Max Digging Radius
2.2
Certification
CE
After-sales Service Provided
Overseas service center available
CHINA BEST MINI EXCAVATOR BRAND YUCHAI
CHINA NO.1 THERE ARE NO NO 2
weight: 1625kg Canopy/1725kg Cabin(3582lbs Canopy/3803lbs Cabin)
rated power: 14.7KW/2200rpm(19.7hp/2200rpm)(Perkins) 14.2KW/2200rpm(19.03hp/2200rpm)((Kubota)
standard bucket capacity: 0.04m3(1.41cu.ft.)
standard bucket wide: 400mm(1'4''in)

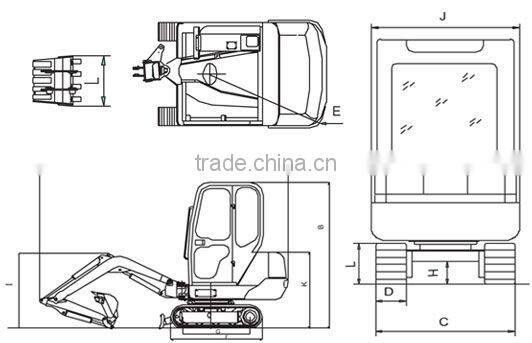

Principal dimension
| A Overall Length (trans pos) | 3670mm(12'in) |
| B Overall Height (trans pos) | 2245/2310 |
| C Width of Undercarriage | 980mm(3'3''in) |
| D Width of Track | 230mm(9.06inch) |
| F Length Of Track | 1405mm (0.8'in) |
| H Dist. Between Undercarriage And Ground | 188mm(0.6'in) |
| J Width Of Platform | 1010mm (3'4''in) |
| L Dist. Between Platform And Ground | 414/453mm ext.chassis (1'4''/1'6''in ext.chassis) |
| E Maximum Platform Tail Turning Radius | 1193mm(3'11''in) |
| I Dist. Between Boom And Ground | 1050mm(3'5''in) |
| G Sprocket To Idler Centres | 1045mm(3'5''in) |
Characteristic
| Operation Hydraulic Pressure | 16Mpa(2320PSI) |
| Maximum Digging Force | ≥11 KN (2474lbs) |
| Maximum Gradeadility | ≥58%(30°) |
| Travelling Speed | ≥2 km/h (1.2mph) |
| Maximum traction | 8.8 KN (1979lbs) |
| Swing Speed of Platform | 10~12rpm |
| Variable displacement pump capacity | |
| Fixed displacement pump capacity | 8.2+8.2+3.2ml/r(0.0018+0.0018+0.0007gallon/r) |
| Swing Angularity of the Digging Arm(left/right) | 60°/48 |

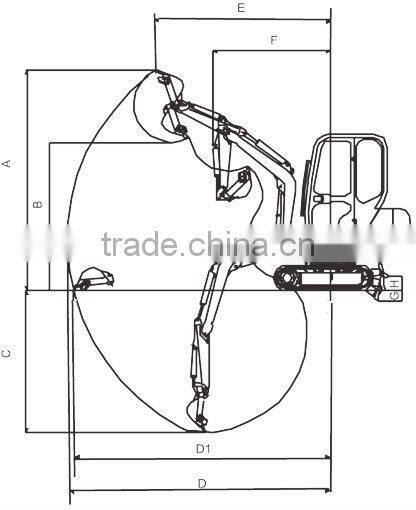

Operating envelope
| A Maximum Digging Height | 2910mm(9'6''in) |
| B Maximum Dumping Height | 2050mm(6'9''in) |
| C Maximum Digging Depth | 1800mm(5'11''in) |
| D Maximum Digging Radius | 3520mm(11'6''in) |
| D1 Maximum Digging Dist.of Ground | 3451mm(11'4''in) |
| E Maximum Height Digging Radius | 2650mm(8'8''in) |
| F Maximum Platform Tail Turning Radius | 1700mm(5'7''in) |
| G Maximum Depth for Bulldozing | 166mm(0.5'in) |
| H Maximum Height for Bulldozing | 201mm(0.7'in) |
