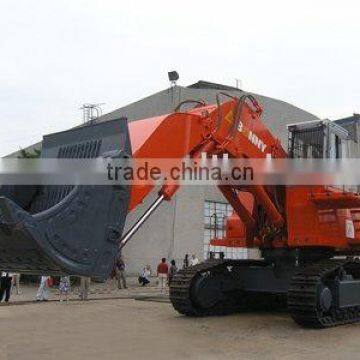

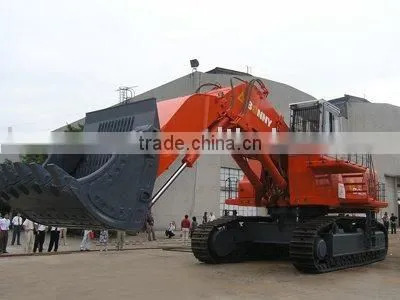

Main Technology Data of Hydraulic Excavator CED1250-7
No. | Item | Unit | Date | ||
Face shovel | Backhoe | ||||
1 | Machine weight | t | 125 | 116 | |
2 | Bucket capacity | Standard | m 3 | 6.5 | 5.0 |
Range | m 3 | 6.0~8.0 | 3.5~7.0 | ||
3 | Electromotor | Model |
| YJK4004-4 | |
Power /Speed | kW/rpm | 450/1485 | |||
Voltage | V | 6000 | |||
4 | Hydraulic system | Type |
| Three pumps and three loops, limit load variable system | |
Max. pressure of main oil circuit | MPa | 32 | |||
Max. flow of main oil circuit | L/min | 2×522 | |||
Swing type |
| Independence open type | |||
Flow of swing oil |
| 1×522 | |||
Operating style |
| Pilot control | |||
Hydraulic oil tank capacity | L | 1300 | |||
5 | Performance | Swing speed | r/min | 5.8 | |
Travel speed | km/h | 2.4 | |||
Max. pulling force | KN | 713 | |||
Gradeability | % | 70 | |||
Ground pressure | MPa | 0.127 | |||
Circulating time of operation | s | 22 | |||
6 | Working date | Boom length | mm | 5450 | 7800 |
Stick length | mm | 3700 | 3400 | ||
Max. digging radius | mm | 11332 | 13405 | ||
Max. digging depth | mm | 3330 | 7315 | ||
Max. digging height | mm | 11870 | 12529 | ||
Max. unloading height | mm | 9400 | 8958 | ||
Max. digging force of stick | KN | 505 | 416 | ||
Max. breakout force of bucket | KN | 470 | 550 | ||
