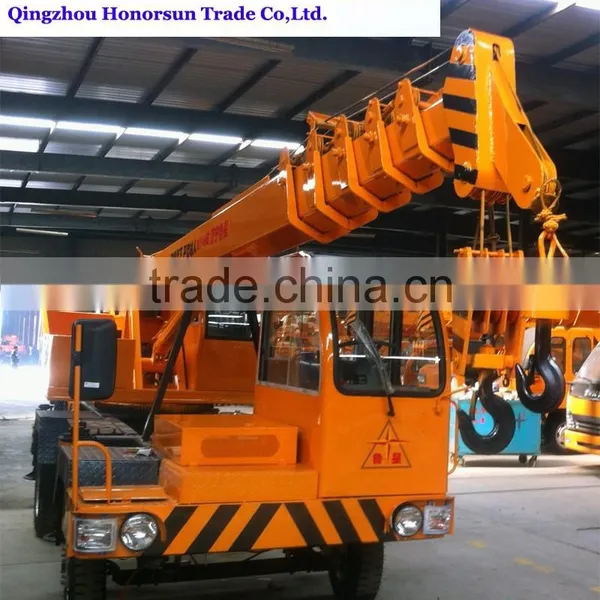

China better truck mounted mobile crane (QGMC-6T)

6 ton mini wheel truck crane

Self-made  special chassis crane , continuous 360 degree steering, five-sided boom patented technology center gyrator full hydraulic telescopic legs, large span web w font the outrigger large frame, Vice the hook fast lifting design, hydraulic system uses servo control, the lowest level of the international industry. Motor pumping station can be mounted directly to a 380V power for power, and environmental conservation. Light and flexible, low price, suitable for rural and urban fringe. Investment in low-cost, high-end product returns.
In order to reduce the risk of customers, the company vehicle to each product into the year with the product with the value of quality liability insurance to China Life Property and Casualty Company Limited.

QLY6WB crane configuration:
 chassis using: homemade high-strength chassis: 28-horsepower diesel engine (brand: when the wind), NJ130 with vice box, the handbrake drum (parking brake), to aggravate 1041 before and after the bridge (oil, brake service brakes), mechanical machine direction steering
hydraulic system: the operation of hydraulic servo control system, integrated hydraulic valve block single group operate independently (compound action)
 Swing System: 50 manganese calcined hit track Sui fire quenched and tempered Slewing central gyrator (360 ° continuous unlimited rotation)
winch system: cycloid motor, hydraulic winch (normally closed hydraulic brake system support quick release rope)
the jib system: pentagon boom section 5.5 m X4
 outrigger system: hydraulic cylinder automatically frog legs
expand configuration: ISUZU chassis can expand the front and rear axles, the engine can expand the 2100 or 480 diesel engine, lifting system to expand oil and electricity dual-use (11KW motor or motor pump station)
Dimensions (L x W x H): 680cm x 210cm x 248cm
Luxing crane characteristics:
Full hydraulic transmission, electromechanical dual-use, safe and reliable, high efficiency, low labor intensity;
Each hydraulic system is equipped with a balancing valve and hydraulic lock, security, reliability and higher;
Lifting winch normally closed hydraulic brake, optional hydraulic lifting winches;
The boom and important structural parts are made of low-alloy steel plate production, reduce crane weight, improve the performance of crane;
Slewing bearings used in all the 50 manganese forged material produced;
6 tons and above crane accessories all to adopt the Xugong / Dongyue original accessories, such as: the main Fazhu pump, winch system, swing system, slewing ring ... and so on!
Boom cold forming, rectangular, 50-prism structure, and give full play to the mechanical properties of the material;
Boom hydraulic cylinder telescopic work more safe and reliable;
The installation of lights at night, extended working hours;
Boom telescopic limit using the flag line and alarm double insurance;
Optional front and rear cab, negative arm and three-phase operation;
Crane optional torque display, height limiter;
The cranes are equipped with radiators, more conducive to summer work;
Hydraulic oil line rubber tube used in all double into wire ultra-high pressure tubing, steel pipes used in all electroplating treatment;
