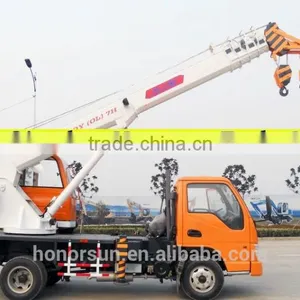

truck crane /Construction engineering machinery/Aerial work machinery

Total mass                    kg

7110

Overall dimension              mm

7785*2070*2920

Rated elevating capacity         kg

7000

Max. Lifting Height             m

24

Main hook single load            kg

1170

Main hook single elevating speed   m/min

50

Auxiliary hook single load         kg

500

Auxiliary hook single elevating speed  m/min

100

Engine model

SD 490#

Derailleur model

MW525 auxiliary box

Tires

7.00-16 with spare tires

Braking form

Vacuum booster

Steering form

The steering wheel circulation ball type

Crane jib structure

Category five hexagon box-type, hydrocylinder telescopic boom

Main Lifting Mechanism

Category two planet wheel with a brake inside

Auxiliary Lifting Mechanism

Category one gear brake motor

Swing Bearing

GB Φ1000 Tooth, material 50Mn intermediate frequency

Vertical hydraulicleg

Double-acting engineering oil cylinder

Horizontal hydraulicleg

Double-acting engineering oil cylinder

Platform

Anti-skidding and big

Protective Screening

Two-way

Night light

3 lamps control

Dynamic Motor

Y YB160M-6

Crane Cab

Tailor-made

The central axially symmetrical

Four oil ways

Crane Start

Tailor-made

Throttle

Hydraulic

Warning Horn

Mono snail

Pressure gage and switch

Shockproof component

Power Takeoff

Driving indoor operation zip type

Hydraulic Oil Tank

Turntable rearmounted, counter weight combined type, special four-layer filters
