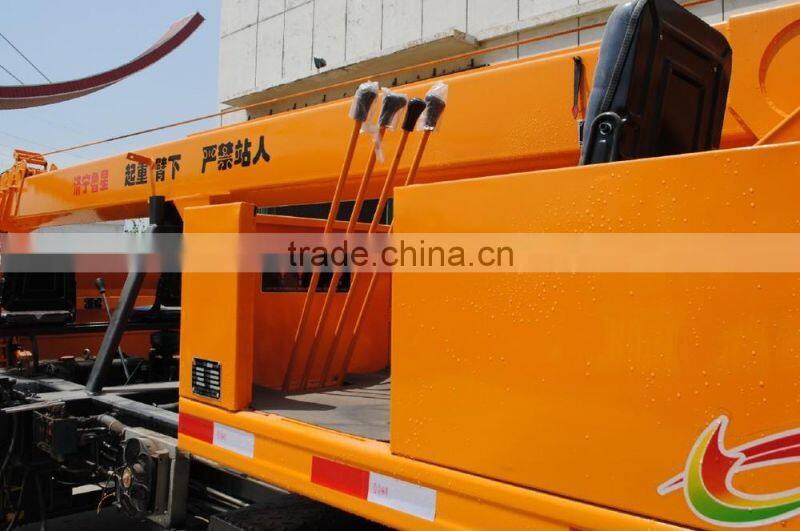

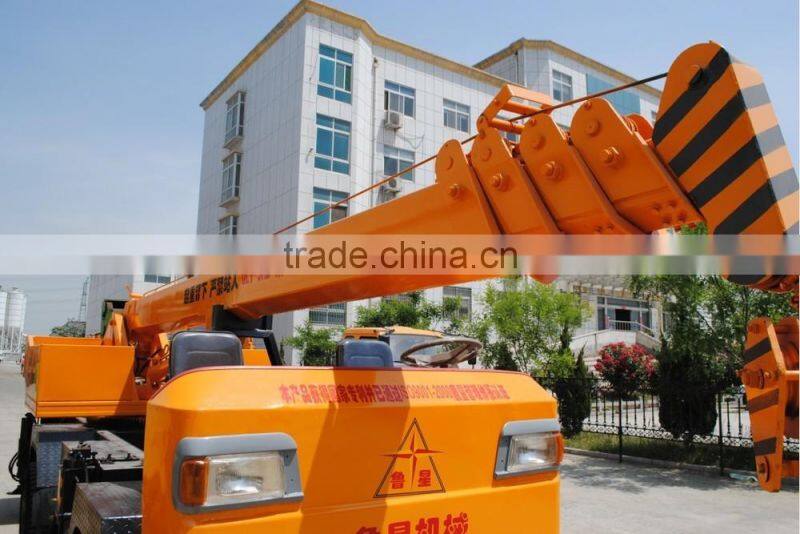

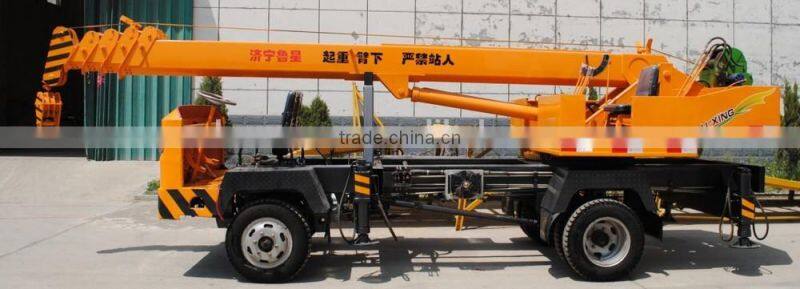

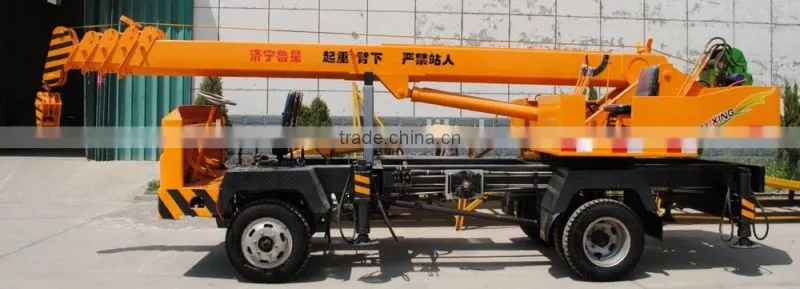

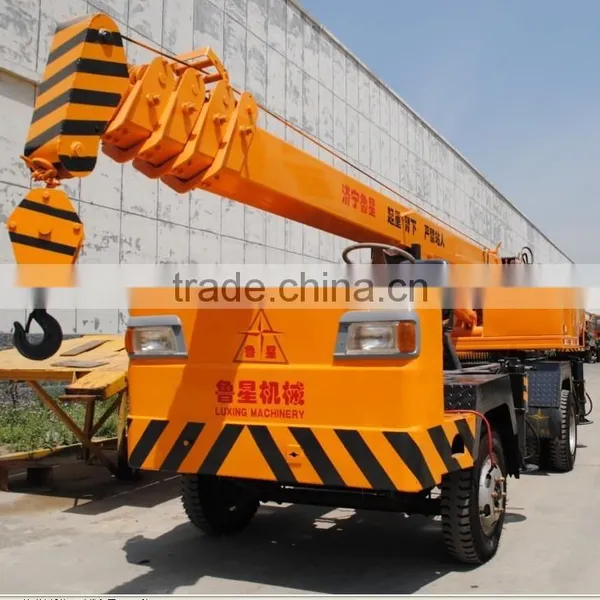

Help CenterMini 5T HSY5B (four Section Boom) Truck Crane/mobile Truck Crane
Related Products
-
Hydraulic Mobile Crane,truck Mounted Crane,truck Crane With ceUS$ 10,000 - 12,000MOQ: 1 Unit -
6 Tons 7ton 8ton 9ton 10ton 12s Ton Hydraulic Truck Mounted Crane With Telescopic BoomUS$ 8,000 - 16,000MOQ: 1 Unit
-
China Better Truck Mounted Mobile Crane (QGMC-6T)US$ 8,000 - 16,000MOQ: 1 Unit
-
Chinesetruck With Crane, Truck Mounted Crane, Mobile Crane(HONORSUN Mechanical)US$ 64,000 - 85,000MOQ: 1 Unit
-
Mobile Crane HONORSUN/HONORSUN 10t Truck Crane/ Camion GrueNegotiableMOQ: 1 Unit
1,MAIN STRUCTURE
HSY5B Crane is a mini model crane with self-made chassis, suitable for working in factories, ports, garages, construction sites and other places of lifting operations and lifting equipment installation works etc...
This Crane is mainly composed with chassis, boom system, hydraulic system, electrical system and lifting mechanism and other components.
specification
dimension | length | 7300mm |
width | 1900mm | |
height | 2800mm | |
outrigger span | horizental | 3550mm |
Lengthways | 3550mm | |
Turntable end Rotary semi-diemeter | 2000mm | |
weight | 5000Kg | |
Contraction Length for main boom | 6200mm | |
Outspread for main boom | 23000mm | |
Max lifting height for basic boom | 7800mm | |
Max lifting height for outspread boom | 23600mm | |
Lifting boom changing angle | 0°— 80° | |
Wheel base | 1480/1110mm | |
Minimum clearance | 215mm | |
approach angle | 25.43° | |
departure angle | 10° | |
fule | diesel | |
Chassis | Self-made chassis | |
Engine model | SD4W58-3U | |
Engine power | 58Kw | |
Max speed | 30KM | |
Loading scale
Working range (m) | Length of main boom(m) | |||||
6.2m | 14.4m | 23m | ||||
loading (Kg) | Lifting height(m) | loading (Kg) | height (m) | Loading (Kg) | height (m) | |
2.5 | 5000 | 6.51 |
|
|
|
|
3.0 | 4500 | 6.10 | 2200 | 15.56 |
|
|
3.5 | 4200 | 5.61 | 2100 | 15.41 | 1000 | 23.76 |
4.0 | 3700 | 4.97 | 2000 | 15.24 | 800 | 23.66 |
4.5 | 2500 | 4.00 | 1900 | 15.11 | 700 | 23.55 |
5.0 |
|
| 1800 | 14.82 | 600 | 23.41 |
6.0 |
|
| 1700 | 14.33 | 530 | 23.12 |
7.0 |
|
| 1550 | 13.74 | 420 | 22.77 |
8.0 |
|
| 1400 | 13.00 | 360 | 22.36 |
9.0 |
|
| 1150 | 12.13 | 330 | 21.90 |
10.0 |
|
| 850 | 11.10 | 280 | 21.37 |
11.0 |
|
|
|
| 240 | 20.78 |
12.0 |
|
|
|
| 180 | 20.12 |
13.0 |
|
|
|
| 140 | 19.37 |
14.0 |
|
|
|
| 110 | 18.54 |
15.0 |
|
|
|
| 80 | 17.60 |
ratio | 6 |
| 4 |
| 2 |
|
