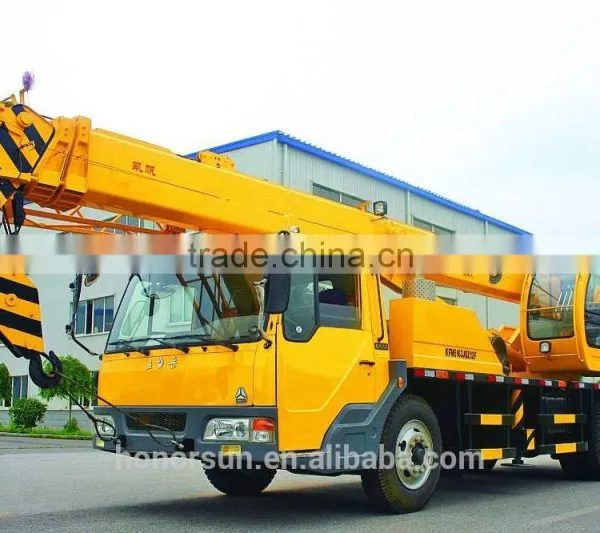

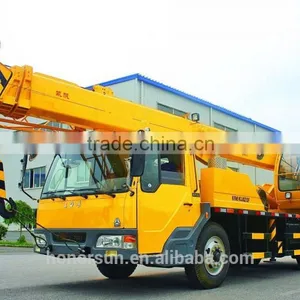

(QY16G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 16t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Main Parameters
|
Items |
Unit |
Value |
|
|
Working Performance Parameters |
Max. Rated lifting weight |
kg |
16000 |
|
Max. Rated lifting force |
Kn.m |
588 |
|
|
Max. Height of the basic boom |
m |
10.4 |
|
|
Max. Height of the main boom |
m |
31.4 |
|
|
Max. Height of the boom and jib |
m |
38.8 |
|
|
Max. Speed of the single rope |
m/min |
120 |
|
|
Working Speed |
|
s |
80 |
|
Lifting time of the lifting boom |
s |
53 |
|
|
Turning speed |
r/min |
0~2.5 |
|
|
Traveling Parameters |
Max. Traveling speed |
km/h |
75 |
|
Max. Grade ability |
% |
26 |
|
|
Min. Turning radius |
m |
11 |
|
|
Min. Ground clearance |
mm |
270 |
|
|
Approaching angle |
° |
16 |
|
|
Departure angle |
° |
12 |
|
|
Weight Parameters |
Proper weight in traveling mood (the whole weight) |
kg |
24960 |
|
Load of the front axle |
kg |
6960 |
|
|
Load of the middle-rear axle |
kg |
18000 |
|
|
The whole weight |
kg |
24765 |
|
|
Dimension Parameters |
External dimension(length×width×height) |
mm |
12130×2494×3330 |
|
Vertical span of outrigger |
m |
4.9 |
|
|
Horizontal span of outrigger |
m |
5.6 |
|
|
Length of main boom |
m |
9.8~30.5 |
|
|
Elevation of main boom |
° |
-2~80 |
|
|
Length of vice boom |
m |
7.5 |
|
|
Chassis |
Model |
— |
TAZ5253J |
|
Engine model |
— |
WP6-240 |
|
|
Rated power/speed |
kw/(r/min) |
176/2500 |
|
|
Max. Torque/rotate speed |
n.m/(r/min) |
800/1300~1600 |
|
Standard Equipments
1. WUYUE TAZ5253J
2. Main boom assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Windlass assembly
6. Slewing system
7. Electric system
8. Hydraulic system
9. Outrigger
10. Superstructure control system
11. Chassis control system
