Specifications
China Supplier River Submersible Pump Dredge Boat For Sale1.ISO 9001 centrificate
2.We are factory
3.Famous brand sparepart
River Submersible Pump Dredge Vessel With Cutter Head
1.Submersible Pump Dredge Boat Specification is as follows:
1.Economic and high sand dredging efficiency
2.Easy movable
3.We are factory,without middle link,the quality and price have guarantee.
4.Famous spare part can be available in short time.
5.Operation by one man from spacious and low noise operating cabin
2.Submersible Pump Dredge Boat Parameter:
| Model | KDQSB200-5 |
| Dredger Body | |
| Dimension (m) L*W*H | 12*4.7*1.2m |
| Pontoon | |
| Side pontoons 2sets | 11*1.25*1.2m |
| Main pontoon 1set | 8*2.25*1.2m |
| Material | CCSA |
| Total weight T | 20T |
| Pump model | ZJQ300-20-37 |
| Rotation speed(r/m) | 980rpm |
| Dredging data | |
| Standard dredging depth | 5m |
| Standard discharge distance | 50m |
| Max.dredging depth(m) (optional) | 8m |
| Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) | 70m |
| Max.standard dredging capacity m3/h | 50-70m3/h |
| Min.clean water flows(standard dredging depth and Max.discharge distance) | 300m3/h |
| Discharge pipe diameter(mm/inch) | 200mm |
| Devices KW | Generator |
| Total power KW | 65kw |
| Pump power(kw/hp) | 1500 |
| Winch(electric) | |
| Ladder winch | 4kw 1set |
| Anchor winch | 4kw 3set |

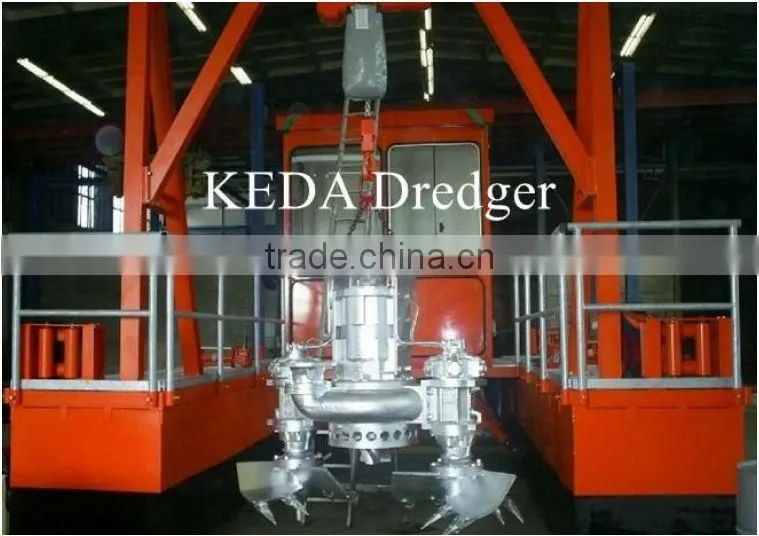

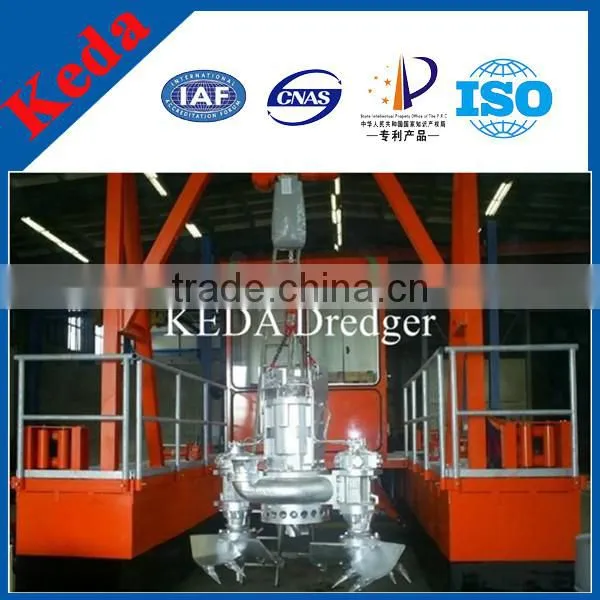

3.Submersible Pump Dredge Boat Picture
4.Submersible Pump Dredge Boat Pump With Cutte Head
5.Our company-- Submersible Pump Dredge Boat Manufacturer:
1)We are one professional manufacturer and exporter of hydraulic cutter suction dredger and some related products.
2)we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.
3)The dredger has passed ISO quality system certification and Chinese Classification Management System Certification with good quality and low price.
6.Contact Person:
