Submersible Pump Dredging Machine For River Sand Mining

Specifications

Submersible Pump Dredging Machine For River Sand Mining
1.ISO 9001
2.With patent
3.Good aftersale service
4.Low fuel cost

China Supplier Submersible Pump Dredging Equipment For Sale







1. Submersible Pump Dredging Machine Specification is as follows:

1. Economic and high sand dredging efficiency

2.Portable to move

3.Easy to operate with reliable quality

4.Operation by one man from spacious and low noise operating cabin



5.We are original factory,without middle link,the high quality and reasonable price will be guaranteed.

2. Submersible Pump Dredging Machine Parameter:

Model	KDSX200-10	KDQSB200
Dredger Body
Dimention (m) L*W*H	14*4.2*1.4m	12*4.7*1.2
Float
Pontoon
Side pontoons 2sets	11.5*1.0*1.4m	11*1.25*1.2
Main pontoon 1set	8.5*2.25*1.4m	8*2.25*1.2
Material	CCSA	CCSA
Total weight T	30	20
Pump model	6/4”D-G	ZJQ300-20-37
Rotation speed(r/m)	1150	980
Dredging data
Standard dredging depth	8-10m	5m
Standard discharge distance	500m	50m
Max.dredging depth(m) (optional)	10m	8m
Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows)	600m	70m
Max.standard dredging capacity   m3/h	50m3/h	50-70m3/h
Min.clean water flows(standard dredging depth and Max.discharge distance)	250m3/h	300m3/h
Suction pipe diameter(mm)	200
Discharge pipe diameter(mm/inch)	200	200mm

.

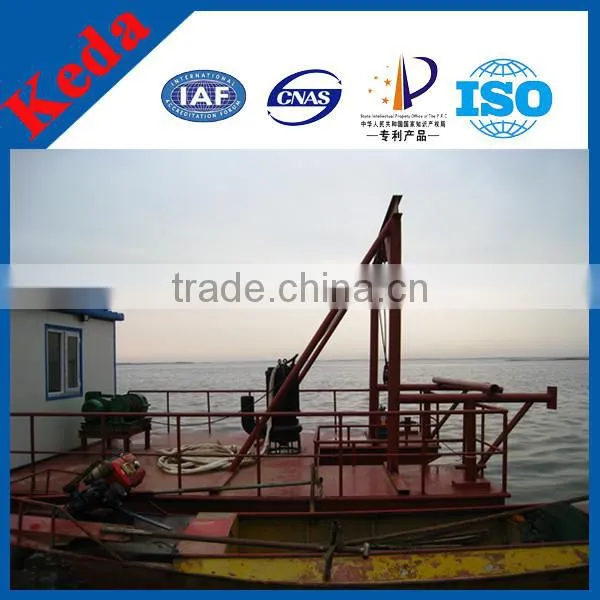

3. Submersible Pump Dredging Machine show

Other Types Submersible Pump Dredging Machine

Submersible Pump Dredging Machine Pump



4.About our company-- Submersible Pump Dredging Machine Manufacturer:



1)We are one professional manufacturer and exporter of hydraulic cutter suction dredger and some related products.



2)we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.



3)The dredger has passed ISO quality system certification and Chinese Classification Management System Certification with good quality and low price.



4)We have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,

5.Contact Person:
