Wheel Type Sand Washer Equipment
1.Basic Parameter:
Type | KDSSJ15-28 | KDSSJ18-30 |
Dimension(L*W*H) | 3600x2800x2900 | 3800x3100x3100 |
Water wheel dimension | φ2800x1500double | φ3000x1800triplex |
Material | 8mm | 10mm |
Feeding hopper dimension | 3600x1600 | 3800x1900 |
Material | 4mm | 5mm |
Working capacity m³/h | 80-100 | 120-150 |
Max.approval grain size (mm) | ≤12 | ≤12 |
Main Power (kw) | 11kw-4 | 15kw-4 |
Submersible pump |
|
|
Power | 7.5kw | 7.5kw |
Clean Water Flow m³/h | 65 | 65 |
Conveyor |
|
|
Length mm | 10000 | 10000 |
Belt width mm | 800 | 1000 |
Frame material | 12#channel steel | 12#channel steel |
Electromotor kw | 7.5 | 11 |
2.Feature:
1. High efficiency, reasonable structure, high capacity and low consumption
2. The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand and powder is minimized, and the grade and fineness can meet the required standard
4. This machine is with long service life and low maintenance costs.
3.Detail Images:

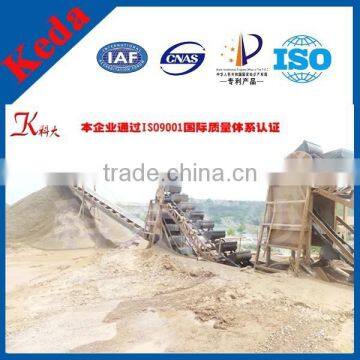

4.The machine in the worksite:
In bulk:
Customers visited our company:
Company certificate:
Website:www.miningmachine.en.china.cn
