Specifications
Mini Gold Dredger1.Low investment & high income
2.High processing capacity:5m3/h
3.Reliable performance
4.ISO9001

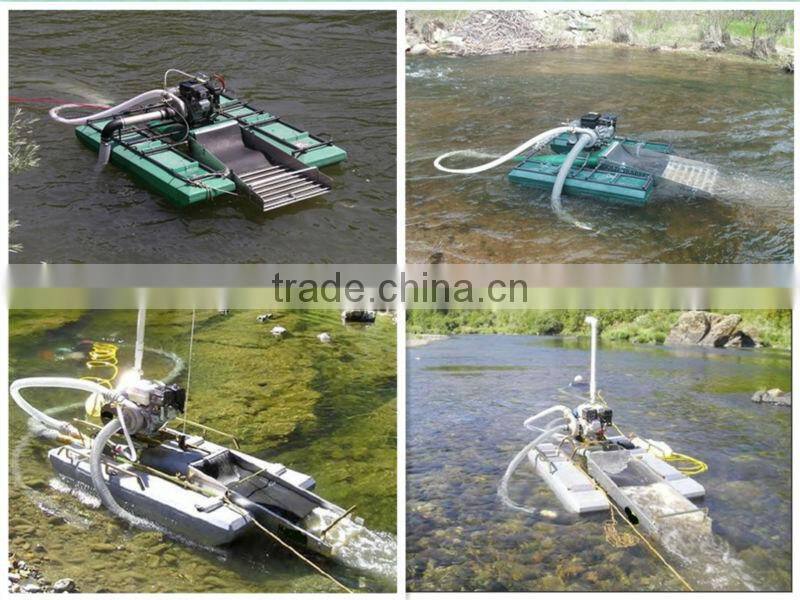

Low Investment & High Income Mini Gold Dredger
1. Characteristics
1).ISO9001
2).High processing capacity:5m³/h
3).Reliable performance
4).Low investment & high income
2.Parameter
Mini Gold Dredger | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate Speed | 3600rpm | 3600rpm | 3600rpm |
Fuel Consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel Capacity | 2.65L | 3.3L | 5.5L |
Pump | 1 set | 1 set | 2 sets |
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump Diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
Water Flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m |
Work Capacity | 5m³/h | 8m³/h | 13m³/h |
Gold Chute | |||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction Pipe | 3inch | 4inch | 5inch |
| |||
1.We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to engineering design, producing installation, commissioning and providing high quality after-sales service.
2.All our products have been certified by ISO9001 and many of our products have been exported to Ghana, Bangladesh, Sultan, Korea and so on.
Certificate
Recent Success Cases
1.Mining project consulting.
2.Testing sample in laboratory.
3.Providing whole production line equipments.
4.Dispatching engineer overseas guidance for equipments installation and testing.
5.Training your local first batch workers.
6.Help you to solve the problems during the equipment operation.
1.Is our company a direct or indirect producer? — Our company is a direct producer.
2. What's the main product of our company? — Our main product is gold extracting equipment. 3. Are our products certified or patented? — Yes.
You are invited to create a bright future with us. Please contact!
Contact: Chance Ji
E-mail: sales07 at
Mobile: +86 13793620699
Skype: kedamachinery07
