Specifications
Gold Mining Equipment1.ISO9001, CCS
2.High processing capacity:5m3/h
3.Reliable performance
4.Low investment & high income
River Sand Alluvial Gold Mining Equipment
1.Characteristics
1).ISO9001, SGS
2).High processing capacity:5-13m³/h
3).Reliable performance
4).Low investment & high income
2.Parameter
Mini Gold Dredger | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate Speed | 3600rpm | 3600rpm | 3600rpm |
Fuel Consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel Capacity | 2.65L | 3.3L | 5.5L |
Pump | 1 set | 1 set | 2 sets |
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump Diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
Water Flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m |
Work Capacity | 5m³/h | 8m³/h | 13m³/h |
Gold Chute | |||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction Pipe | 3inch | 4inch | 5inch |
3.Product Display
4.Component
Float

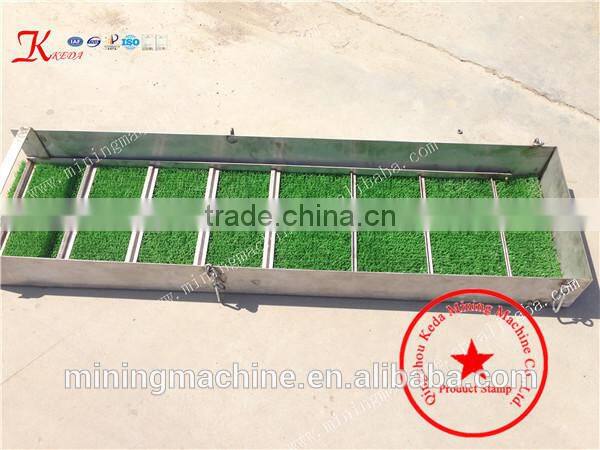

Chute
1.We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to engineering design, producing installation, commissioning and providing high quality after-sales service.
2.All our products have been certified by ISO9001 and many of our products have been exported to more than fifteen countries such as Ghana, Bangladesh, Sultan, Korea, USA, Russia, India and so on.
Certification
Clients Visiting Workshop
Recent Success Cases
1.Mining project consulting.
2.Testing sample in laboratory.
3.Providing whole production line equipments.
4.Dispatching engineer overseas guidance for equipments installation and testing.
5.Training your local first batch workers.
6.Help you to solve the problems during the equipment operation.
1. Is our company a direct or indirect producer?— Our company is a direct producer.
2. What's the main product of our company? — Our main product is gold extracting equipment.
3. Are our products certified or patented? — Yes, we only provide certified products.
4. Can we offer good after sale service? — Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.
You are invited to create a bright future with us. Please contact!
Contact: Chance Ji
Mobile: +86 13793620699
Skype: kedamachinery07
E-mail: sales07 at
