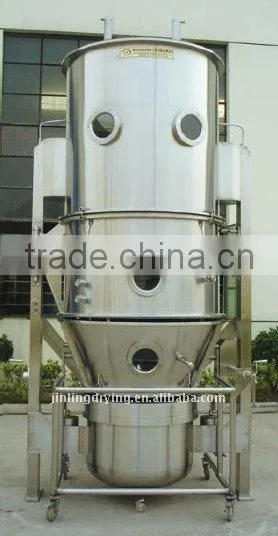

FL Fluid Bed Granulating Processor (one Step Granulator)
- Shanghai port and others
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Changjin | |
| Model Number | FL | Application | Granules | |
| Type | Other, Granulator, 3-500 |
Product Description
Specifications
1.FL fluid bed Granulating Processor2.Granulating and drying in one step
3.Widely used
4.No dead corner
Applications
FL fluid bed Granulating Processor is mainly used for the operations of granulating and drying of granule Top Spraying, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment
Principle
The powder material is in a boiling state in fluid bed, heated and mixed by filtered hot air. Then spray binder into fluid bed, make the dry powder material agglomerate and become granules. The moisture in granule is evaporated by hot air and binder is solidified. Finally, the ideal, uniform and porous finished granule will be got.
Features
Because of powder granulating, the flow property is improved and the dust is reduced.
Because of powder granulating, its solving property is improved.
The mixing, granulating and drying could be completed in one machine.
Being adapted anti static filter bag, the operation is safe.
There is explosion releasing hole to keep the people’s security when explosion.
The equipment has no dead corner, easy for feeding, discharging and clean. It could meet the requirement of GMP.
Technical Parameters
| Item | Specification | ||||||||||||||
| name | unit | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | All sizes are used for reference only. According to the condition of material our factory has the right to change but not notice, pardon. | |
| container Volume | L | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 550 | 670 | 1000 | 1500 | ||
| capacity | kg/ batch | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | ||
| steam | pressure | Mpa | 0.4-0.6 | ||||||||||||
| consum ption | kg/h | 10 | 18 | 35 | 60 | 99 | 120 | 130 | 140 | 161 | 180 | 310 | 400 | ||
| power of fan | kw | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22 | 30 | 45 | ||
| power of electricity heater | kw | 6 | 9 | ||||||||||||
| noise | dB | No more than 75dB separated of fan | |||||||||||||
| comp ressed air | pressure | Mpa | 0.6 | ||||||||||||
| consum ption | m3/ min | 0.3 | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | ||
| installation size for reference | H1 (mm) | 2600 | 2600 | 2100 | 2250 | 2250 | 2850 | 2850 | 2850 | 2850 | 3300 | 3500 | 3850 | ||
| H2 (mm) | 250 | 320 | 420 | 490 | 490 | 590 | 640 | 690 | 790 | 890 | |||||
| H3 (mm) | 1900 | 2050 | 2050 | 2600 | 2600 | 2600 | 2600 | 3000 | 3280 | 3630 | |||||
| B1 (mm) | 1550 | 1650 | 1010 | 1160 | 1320 | 1460 | 1560 | 1660 | 1760 | 1860 | 2060 | 2260 | |||
| B2 (mm) | 1650 | 1800 | 2060 | 2460 | 2660 | 2800 | 3060 | 3260 | 3660 | 4060 | |||||
| 1 (mm) | 300 | 400 | 550 | 700 | 860 | 1000 | 1100 | 1200 | 1300 | 1400 | 1600 | 1800 | |||
| 2 (mm) | 150 | 180 | 180 | 180 | 250 | 280 | 280 | 280 | 280 | 280 | 315 | 355 | |||
| L (mm) | 850 | 1000 | 1100 | 1250 | 1530 | 1530 | 1530 | 1650 | 1650 | 1650 | 1750 | 1 | |||
