Home > Manufacturing & Processing Machinery > Machine Tools > Special Machine Tools > Water Tank Wire Drawing Machine
US$ 12,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wet Drawing MachineUS$ 12,000 - 19,000MOQ: 1 Set -
Fine Wire Drawing MachineUS$ 12,000 - 19,000MOQ: 1 Set
-
Low Carbon High Speed Wire Drawing MachineUS$ 13,000 - 23,000MOQ: 1 Set
-
High Speed Water Tank Wire Drawing MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
Fine Wire Wet Drawing MachineUS$ 15,000 - 23,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LT13-350
Voltage
380v/220
Power(W)
37KW
Dimension(L*W*H)
2000X1600X1500mm
Weight
2800kg
Certification
CE or SGS or other third parts
Warranty
one year
After-sales Service Provided
Overseas service center available

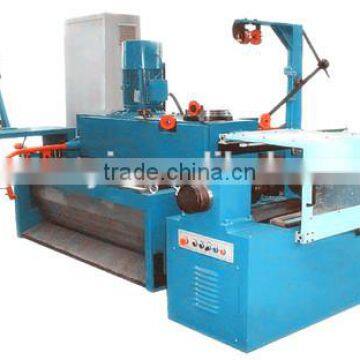

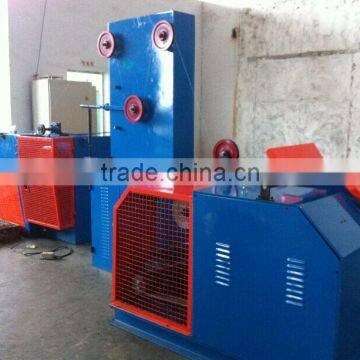

Wet wire drawing machine
product type: wet drawing 2 groups of capstan
product materials: high carbon steel wire
No.of drafts: 13
Max. speed: 10m/s
Inlet wire diameter: φ 2mm
outlet wire diameter: φ0.78mm
Reduction perdraft: 13.49%
ou perdraft: 84.79%
Inlet wire strenght: 1250MPa

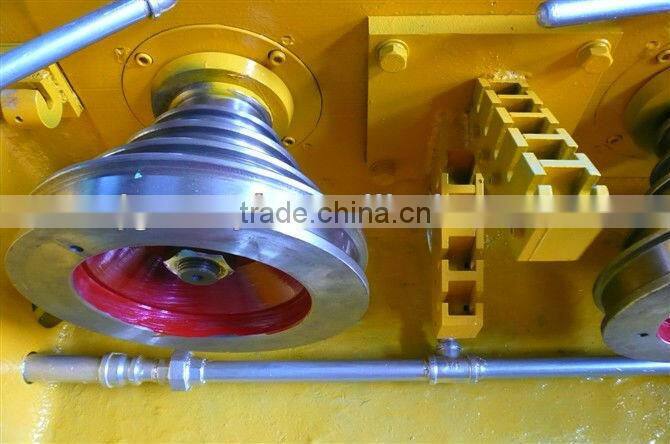

Capstan surface status: WC
Rigidity of capstan surface: 62-64HRC
Motor power: 37KW
Noises: ≤85dB
