UN-2 Wire Pointing Machine

UN-2 Wire Pointing Machine photo-1

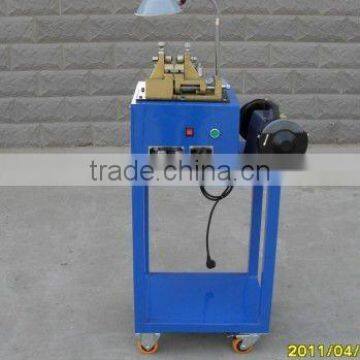

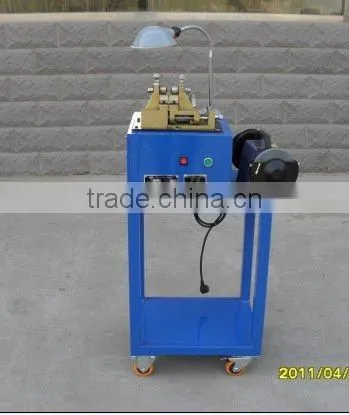

UN-2 Wire Pointing Machine photo-2
US$ 500 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
wanyi
Model Number:
UN
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number UN
After-sales Service Provided Engineers available to service machinery overseas

UN-2 wire pointing machineUN-2 wire pointing machineUN-2 wire pointing machineUN-2 wire pointing machine

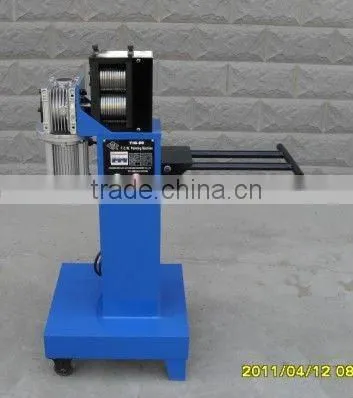

POINTING MACHINE



 1 Device name Pointing machine



2 Device compose 1,roller 2,bracket 3,bottom plate 4,motor 5,transimission system

3 Operating scope ,max inlet:10mm 2,min outlet:0.1mm two sets

4 Speed Design speed:10 m/s Working speed:5-9m/s

5 Motor 2.2KW-0.75KW

6 Rotating speed 50 r/min

7 Roller Diameter of roller 81mm Length of roller 140mm Numbers of bath roller 10 Material strength of roller≤115Kg/mm2

8 Electric Air switch

9 Transimission type Narrow V belt or  gear box ..

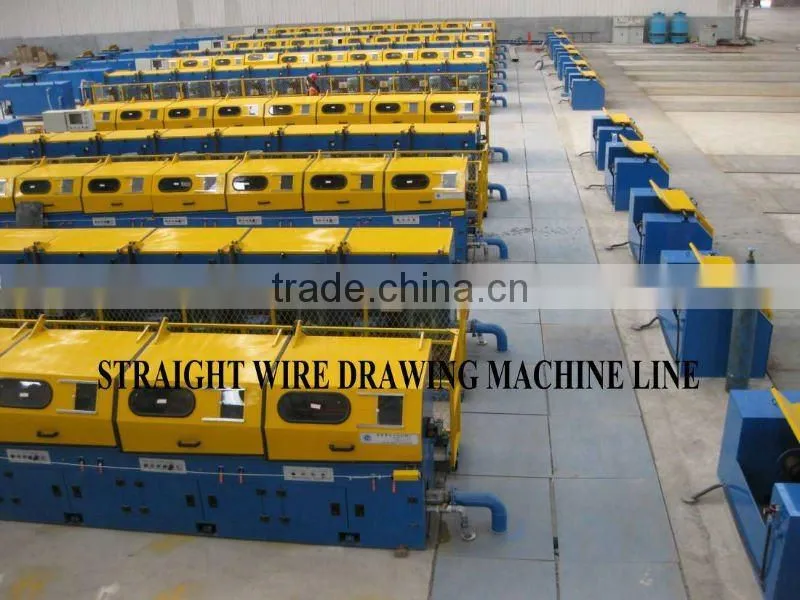

Specification







Items Unit LZ9-12/1200 LZ10/800 LZ9/700 LZ10/560 LZ10/400
Reel diameter mm 900 800 700 560 400
Draw passage time 9-12 10 9 10 10
Incoming dia mm Φ14-8 Φ10-8 Φ8-6.5 Φ6.5-5.5 Φ14-8
Outgoing dia mm Φ5-3 Φ4-3 Φ3-2.5 Φ2-1.8 Φ1-0.8
Wire darwing line m/min 300 360 480 720 840
Incoming strength Mpa ≤1300 ≤1300 ≤1300 ≤1300 ≤1300
Total compressibility % 87.24-85.94 84-85.94 85.94-85.21 90.53-89.29 87.24-84
Average compressibility % 20.48-19.58 18.42-19.58 19.58-19.13 21.00-20.02 18.61-16.74
Single motor power Kw 110-90 90-55 75-55 37-22 15-7.5







Note: We can design the wire drawing machine according to customers' requirement..
