Reliability 2.Energy saving
3.Safety 4.Convenient
5.Low noise 6.High efficiency
7.Environmental protection

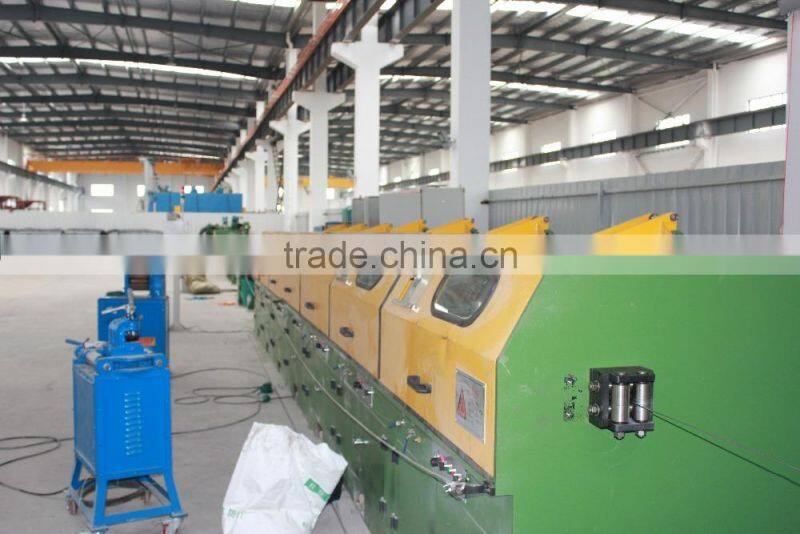

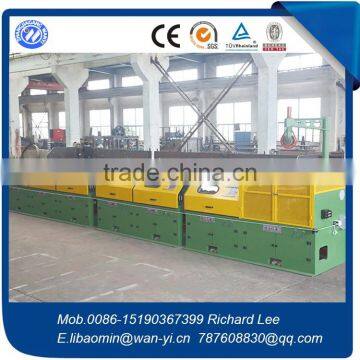

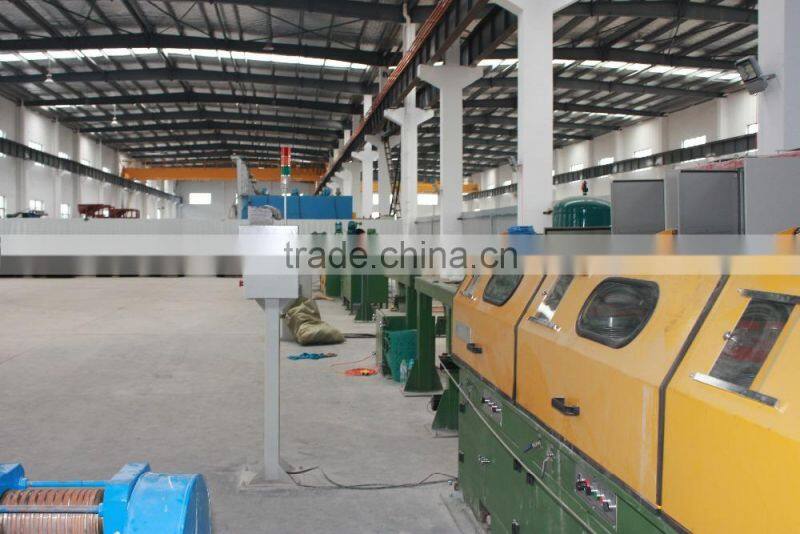

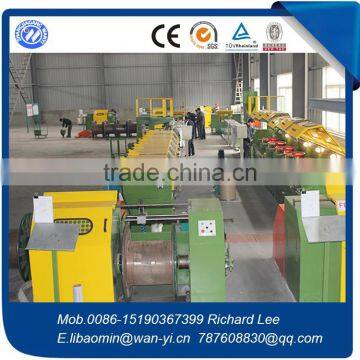

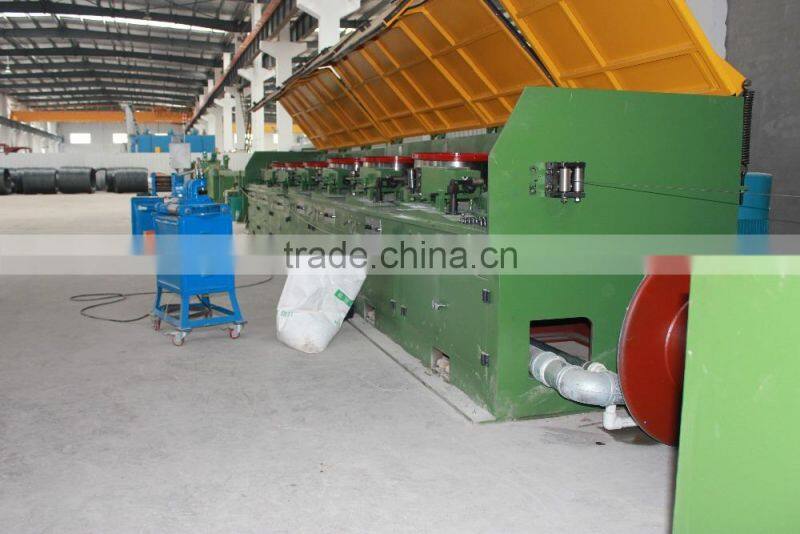

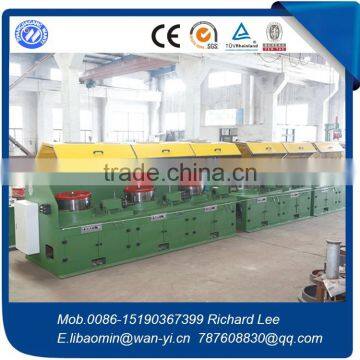

Straight feeding wire drawing machine technical parameter
Sr. | Name | Unit | Data |
1 | Drawing machine name |
| LZ13/600 |
2 | Drawing machine and pull mode |
| Straight line tuning type |
3 | Draft number |
| 13 |
4 | Coil diameter | mm | Φ600 |
5 | Speed adjustable mode |
| AC freq. Con. Speed Adjustable |

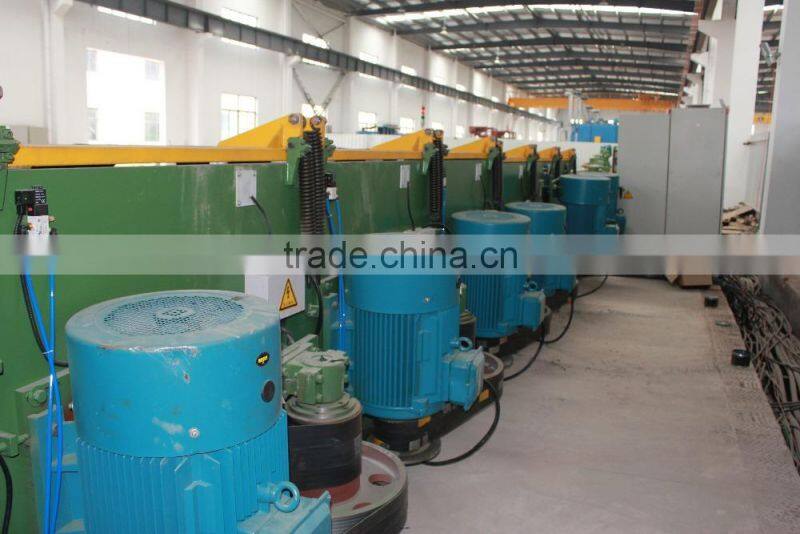

6 | Motor power | KW | 8X37+5×30+1X22 |
7 | Wire-in diameter | mm | Max Φ7.0 |
8 | End product diameter | mm | Min Φ1.5 |
9 | Average compression | % | ≤21.1% |
10 | Design drawing speed | m/s | max16(light load high speed, heavy load low speed) |
11 | Control mode |
| Fully digital |
12 | Logical control |
| PLC |
13 | Wire-in strength | MPa | ≤1250 |
14 | Carbon content in material |
| high and low carbon steel wire |
15 | Drum cooling |
| Self contaminant release narrow seam type water cooling + outer ring type fan cooling. |
16 | Die box |
| Direct water cooling |
17 | Cooling water pressure |
| 0.2~0.3Mpa |
18 | Pneumatic system |
| Air pressure≥0.5Mpa |
19 | Stop time | S | Normal stop≤50s,EMG stop≤5s |
20 | Pay-off mode |
| Duck bill type pay-off machine |
21 | Take-in mode |
| I-type take-in coil |
22 | Total length of production line | M | About 30M |
Model | No of drafts | Max.inlet wire(mm) | Min.outlet wire(mm) | Motor power (KW) | Production speed(M/S) |
LZ300 | 8-12 | 2.5 | 0.4 | 3-4.5 | 25 |
LZ350 | 8-12 | 3.5 | 0.6 | 5.5-11 | 25 |
LZ400 | 8-12 | 4.2 | 0.75 | 7.5-15 | 25 |
LZ450 | 8-12 | 4.5 | 0.96 | 15-22 | 218 |
LZ600 | 6-8 | 6.5 | 1.4 | 22-37 | 16 |
