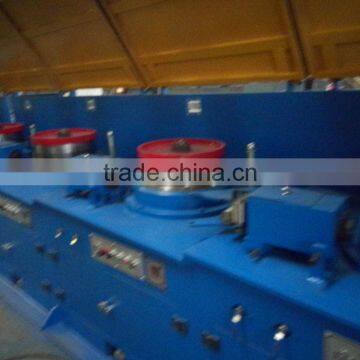

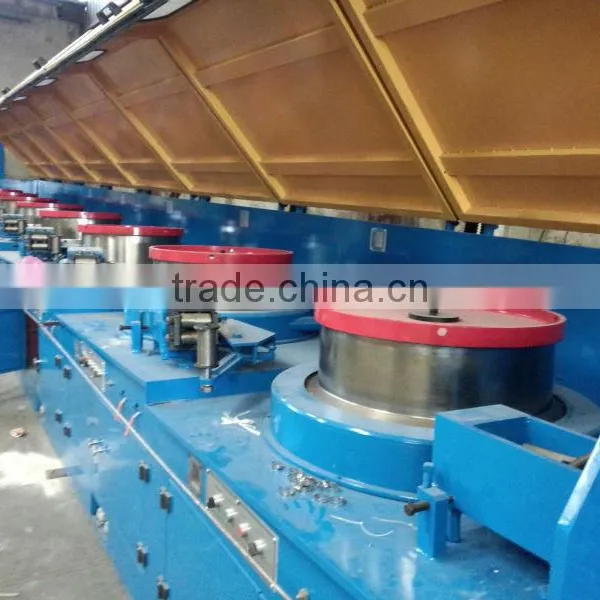

Factory Directly Sale Straight Line Wire Drawing Machine
US$ 20,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
WANYI
Model Number:
LZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SAW Welding Wire Drawing MachineUS$ 10,000 - 30,000MOQ: 1 Set -
Rope Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set
-
MIG Wire Drawing MachineUS$ 45,000 - 60,000MOQ: 1 Set
-
High Carbon Steel Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Submerged Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
WANYI
Model Number
LZ
After-sales Service Provided
Engineers available to service machinery overseas
Main technical parameter:
specification |
LZ200,LZ 350,LZ 400,LZ450,LZ500,LZ560,LZ600,LZ700 |
Capstan diameter |
200, 350, 400, 450, 500, 560, 600 , 700 |
Drafts |
2-12 |
Max. inlet diameter(mm) |
10 |
Min. outlet diameter(mm) |
0.2 |
speed |
According to customers’ requirements |
power |
7.5-90 KW |

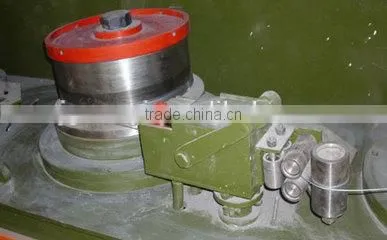

capstan |
Material is cast steel, coated with tungsten carbide. Surface hardness reaches 60-62HRC. Abrasive resistance is very good. |
Drive system |
Adopt 1st or 2nd grade strong narrow V belt; 1st grade strong narrow V belt+ 1st grade hard tooth surface wheel gear with little noise; 1st grade strong narrow V belt+ 1st grade hard tooth surface wheel gear |
Dies case |
Water cooling, reasonable installation, can be adjusted up and down, equipped with special device press the button. |
