low carbon wire drawing machine line turn key
Specifications
1.ISO 9001:2008 standard certification
2.main foreign markets: mid-east,southeast Asia,south Asia,Africa,etc.
Detailed Sell Lead Description:

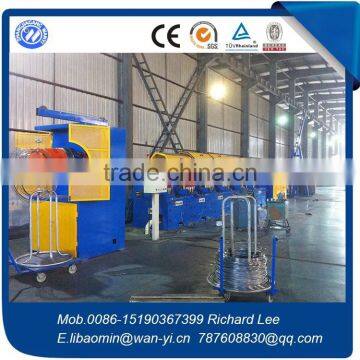

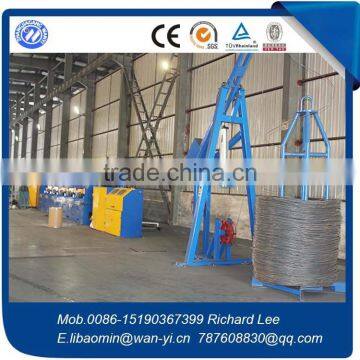

Description: LZ600 High speed straight wire drawing machine
Place Of Origin: Zhangjiagang City, Jiangsu, China
Company Published: 2009
Business type: Manufacturer
Number Of Employees: 50-100
Package: wooden case..
Feature: Applicable for drawing high, medium, low carbon steel wire/ alloy steel wire/ stainless steel wire,
with the feature of continuous pass drawing. The machine is controlled by PLC which is driven by frequency converter.
Specification:
Item |
LZ200 |
LZ300 |
LZ400 |
LZ500 |
LZ560 |
LZ600 |
LZ700 |
LZ750 |
LZ900 |
LZ1200 |
Dia. of Capstan |
200mm |
300mm |
400mm |
500mm |
560mm |
600mm |
700mm |
750mm |
900mm |
1200mm |
Capstan Nos. |
2~12 |
2~12 |
2~12 |
2~12 |
2~12 |
2~9 |
2~9 |
2~9 |
2~9 |
2~9 |
Inlet wire size |
2.5mm |
2.8mm |
4.2mm |
5.5mm |
6.5mm |
8mm |
10mm |
10mm |
14mm |
16mm |
Finished wire |
0.3mm |
0.6mm |
0.7mm |
1.2mm |
1.3mm |
1.6mm |
2.2mm |
2.2mm |
3mm |
3mm |
Max. Speed |
20m/s |
20m/s |
20m/s |
18m/s |
15m/s |
12m/s |
10m/s |
10m/s |
8m/s |
6m/s |
Power (Kw) |
5.5~7 |
7.5~11 |
7.5~22 |
22~45 |
22~55 |
45~75 |
45~90 |
55~90 |
90~132 |
90~160 |
