wire drawing machine
Main parameter of low carbon steel wire processing line
Wire pretreatment line
(1)up-draft type pay-off stand .steel weld-ment structure, and the staircase, safety fence is 5.5 meters high, with disorderly wire alarm parking device, the disorderly wire (when knot) pass throught alarm device system, stop after about six meters
(2) YCX08 non acid drawing derusting machine, steel structure, full closing no pollution. 4 shell (shell wheel 140mm) that make steel wire bending, omni-directional 360 ° shell derusting effect is good. total power 12KW, four derusting the diameter 420mm, the brushed steel brush the wire for friction derusting, normal use of certain time (as per the derusting effect) adjust rust steel brush, adjust once per round forwards 5mm in steel brush, the speed of the machine march with speed of drawing machine

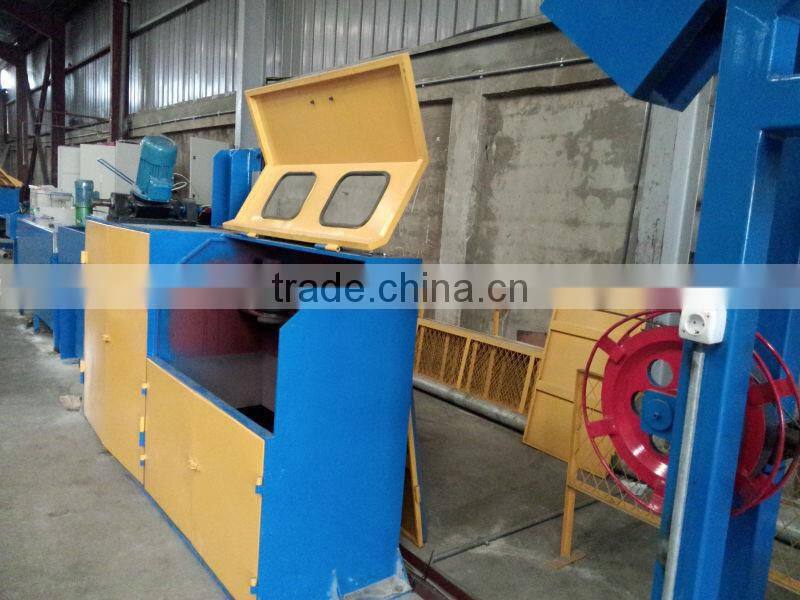

Rough drawing LZ9/560 drawing machine
1 Machine included:

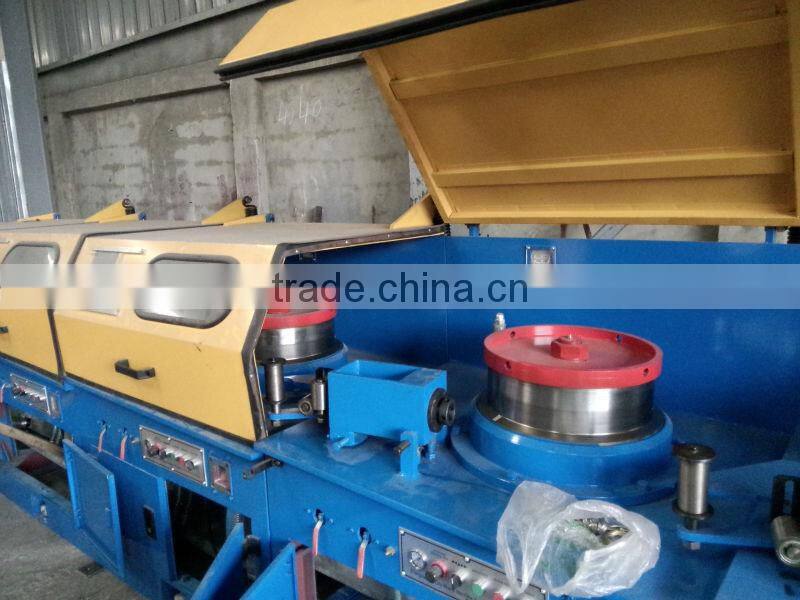

(1) LZ9/560 straight line drawing machine
(2) tensile rack devices
(3)1250mm h-wheel take-up machines
(4) with human-machine interface touch screen control work station
(5) complete electrical control cabinet
2main technical parameters and points:
(1) biggest inlet strength: 450MPa or less
(2) biggest inlet diameter: 5.5 mm
(3) minimum inlet line 1.8 mm
(4) max compression ratio: 89.2%
(5)the highest drawing speed 16m/s, normal speed: 12m/s
(6) water and water pressure: 8 m³/h water pressure 0.25 Mpa or more
(7)air and pneumatic: 2.0 m³/h Air pressure 0.6 Mpa or more
(8)motor :(1) the main motor: the first block 30KW, and the rest 22KW, ac conversion motor
(2)Take-up machine :22KW ac frequency conversion motor (1,250 h-wheel),
(9) block: straight line type: diameter is 560mm
