Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Note: We can produce according to your requirements.

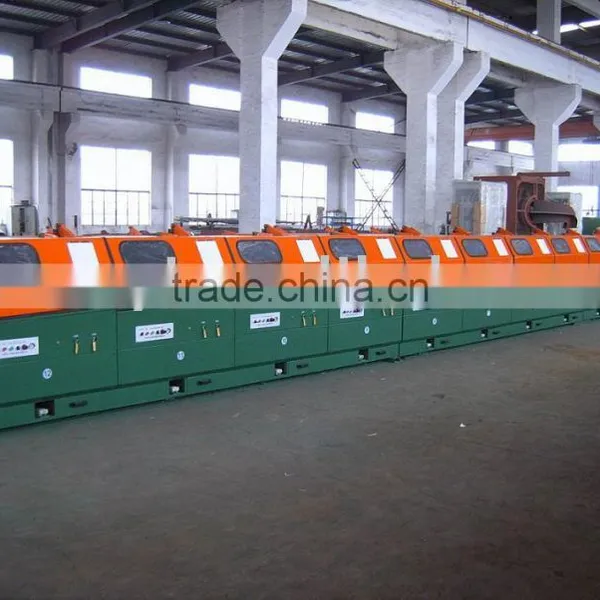

wire processing machine(5.5-1.5mm in usually)
1biggest inlet diameter: 5.5 mm
2minimum inlet line 1.5mm
3 max compression ratio: 89.2%
4the highest drawing speed 16m/s, normal speed: 12m/s
5water and water pressure: 8 m³/h water pressure 0.25 Mpa or more
6air and pneumatic: 2.0 m³/h Air pressure 0.6 Mpa or more
7motor :(1) the main motor: the first block 30KW, and the rest 22KW, ac conversion motor
(2)Take-up machine :22KW ac frequency conversion motor (1,250 h-wheel),
(9) block: straight line type: diameter is 560mm
8 block materials: stainless steel,ZG45 - 55,working surface,tungsten carbide spraying alloy powder, hardness more than HRC60 finish.32 Ra or less
9Using life:two years or more,since wear chamfer, free replacement.
10 block cooling way: inner by slit type water-cooling, The outer cooled by ring air
mould box adopts welded parts, surface of guide wheel or roller spraying tungsten carbide rod, using life is one year,since wear chamfer, free replacement.
(2) mode box body are two parties: lubrication powder body and the water body of indirect cooling
11mode box can be adjusted universally to ensure the angle of wire drawing.
