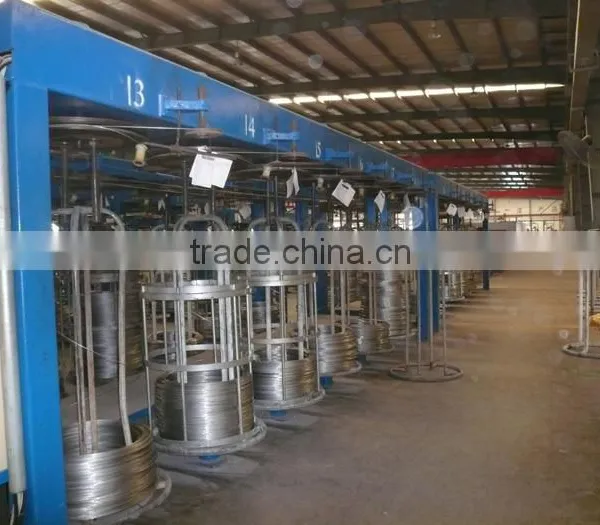

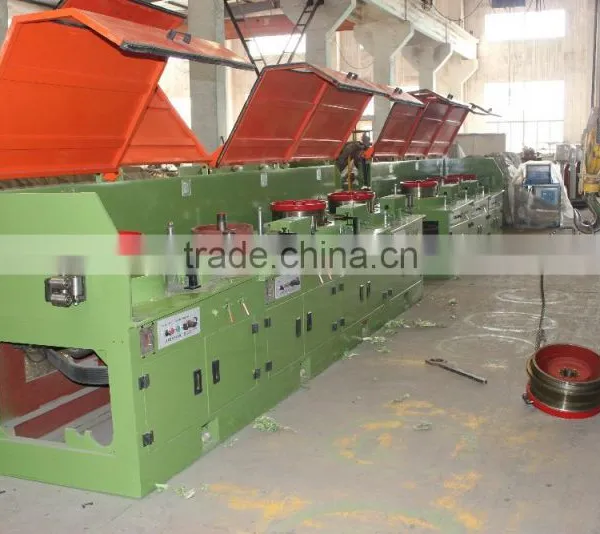

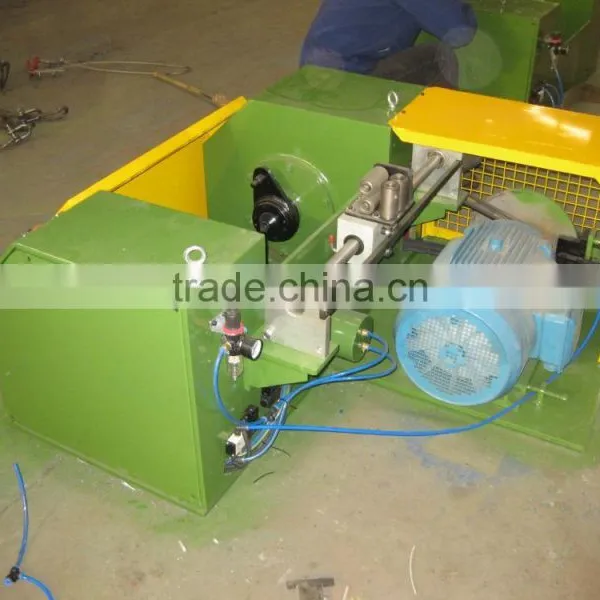

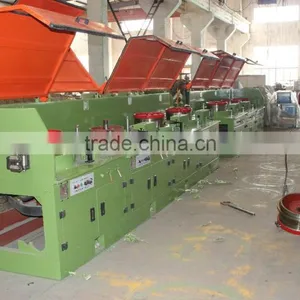

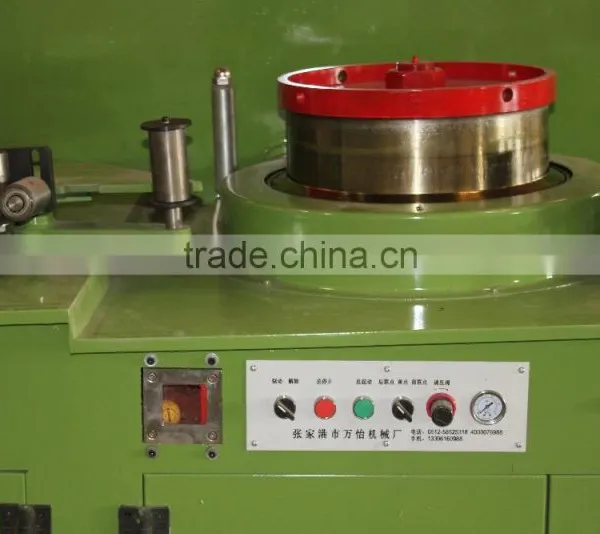

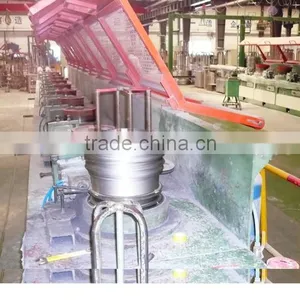

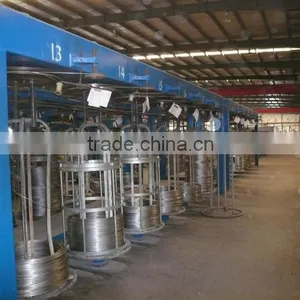

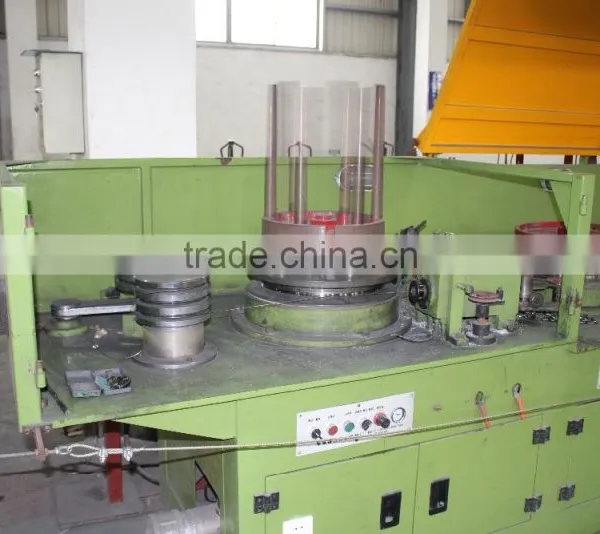

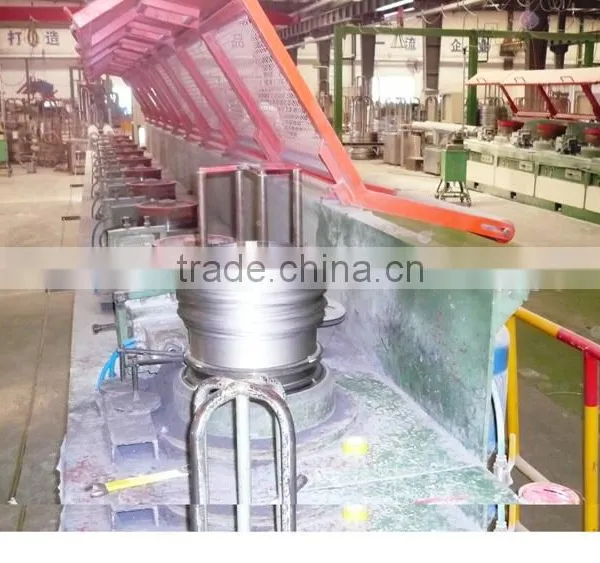

Stainless Steel Wire Drawing Machine
US$ 100,000 - 250,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Inlet Diameter:
4-6.5mm
Outlet Diameter:
0.8-1.6mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Spring Wire Drawing Machine With FurnaceUS$ 100,000 - 250,000MOQ: 1 Set -
Chinese Straight Line Wire Drawing MachineUS$ 40,000 - 88,000MOQ: 1 Set
-
Straight Line Stainless Steel Wire Drawing Machine FactoryUS$ 20,000 - 60,000MOQ: 1 Set
-
Stainless Steel Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Environmental Protectional Wire Drawing MachineUS$ 100,000 - 250,000MOQ: 1 Set
Inlet Diameter
4-6.5mm
Outlet Diameter
0.8-1.6mm
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ(Straight line)
Voltage
220V and 380V
Power(W)
1X22+18.5X8KW
Dimension(L*W*H)
9X1.5X1.5M
Weight
16 Tons
Certification
CE SGS CIQ, CE ISO
Warranty
one or two year
After-sales Service Provided
Overseas service center available
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
