Home > Products > Stainless steel wire drawing machinery > Chinese straight line wire drawing machine

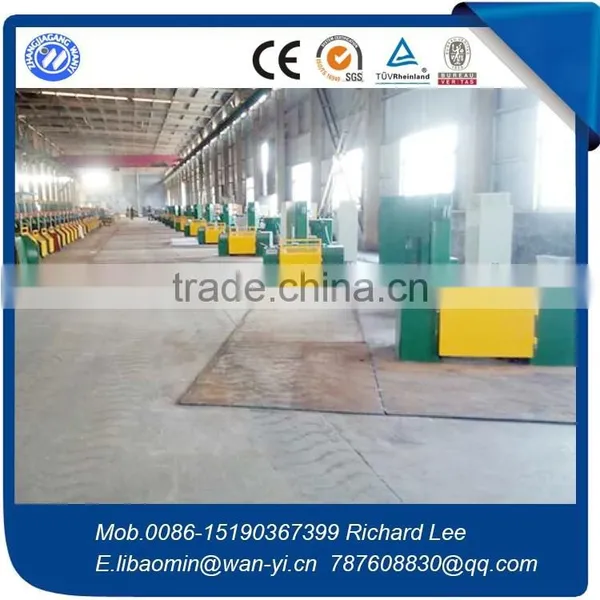

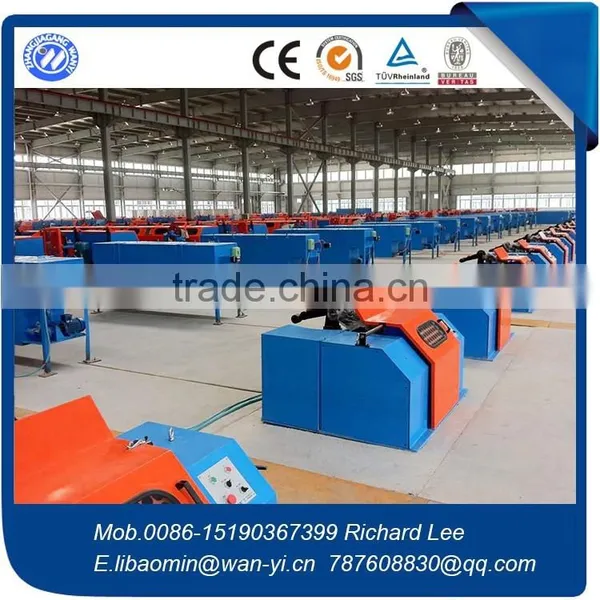

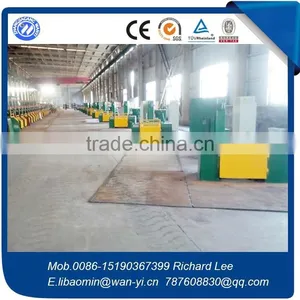

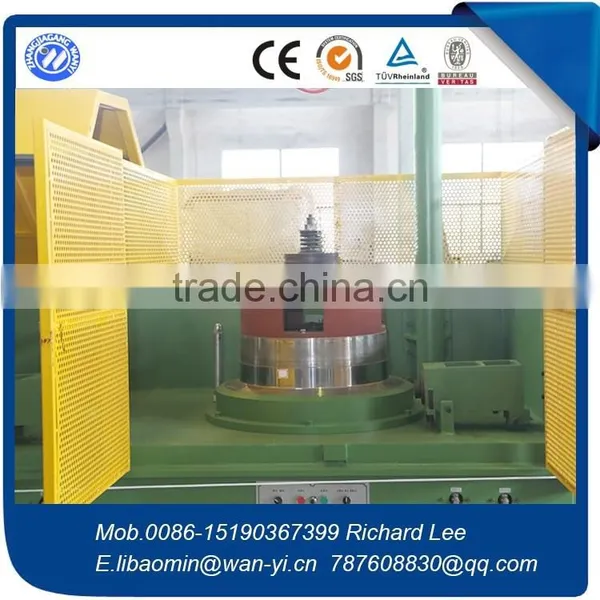

Chinese straight line wire drawing machine
USD $40,000 - $88,000
/ Set
1 Set(Min.Order)
- 5 Set / Sets per Month
- Shanghai or as u need
- T/T
You May Like
-
six axis CNC edm drilling machine five or six axis machine ZGDC406/506/806
-
EDM Wire Cut
-
electric discharge machine EDM electric spark machine electric spark erosion machine
-
edm drilling machine EDM electric drilling machine electric spark machine
-
edm wire cut machine electric spark wire cut machine electric spark machine
-
X199D297H02 M855 Mitsubishi Water Cover
Product Details
| Condition: | New | CNC or Not: | Normal | Place of Origin: | Jiangsu, China |
| Brand Name: | wanyi | Model Number: | LZ8/600 | Voltage: | 380V |
| Power(W): | 1X30+7X22KW | Dimension(L*W*H): | 8.5X1.4X1.45M | Weight: | 8000KG |
| Certification: | THIRD PARTS | Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Note: We can design the machine according to customers' requirement..
Contact Us
- Zhangjiagang City Wanyi Machine Factory
- Contact namelifeng zhang
- Phone86-512-58525956
- AddressNo. 10, Lefeng Road, Zhaofeng Industry Zone, Leyu Town
