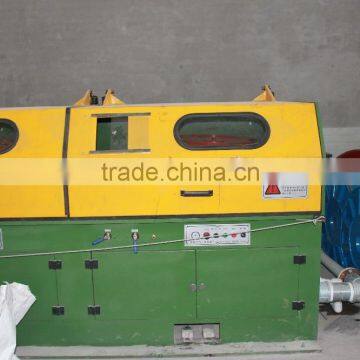

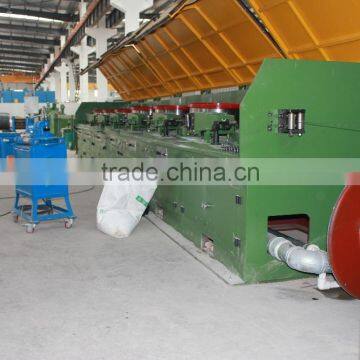

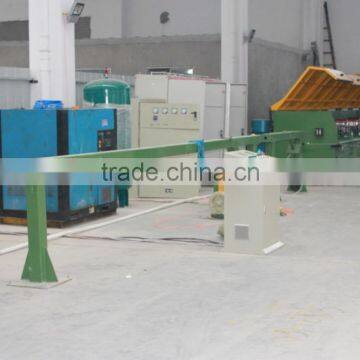

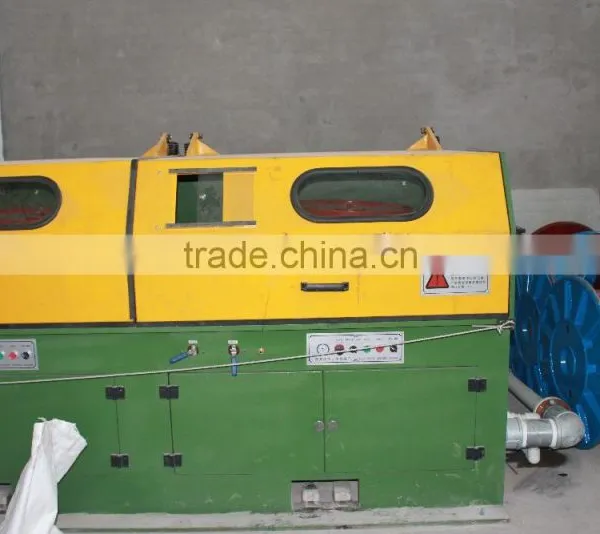

Iron LZ Straight Line Wire Drawing Machine
US$ 25,000 - 65,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR AS U NEED
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Carbon Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set -
Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Deformed Wire Straight Line Wire Drawing MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
Nail Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
High Quality Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ560
Voltage
220/380V
Power(W)
15KW-30KW
Dimension(L*W*H)
9000X1600X1560MM
Weight
8000KG
Certification
third parts
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
high speed wire drawing machine
(1) Maximum enter-wire strength: ≤700Mpa
(2) Maximum enter-wire diameter: 5.5mm or 6.5mm
(3) Minimum out-wire diameter: 2.2mm or 2.35mm
(4) Maximum compression rate: 84%
(5) Maximum drawing speed: 12m/s Normal drawing speed: 10m/s
(6) Water consumption and pressure: 5m3/h Water pressure≥0.25Mpa
(7) Gas consumption and air pressure: 1.0m3/h Air pressure≥0.6Mpa
(8) Motor: main unit:30KW of firt head,the left is 22KW AC frequency conversion motor
take up machine: 15KW AC frequency conversion motor(800 I spool)...
