LZ6/560 straight drawing unit performance parameters
Product name: LZ6/560 straight drawing machine
2 equipment:
(1) up-draft pay-off stand
(2) LZ6/560 straight line drawing machines

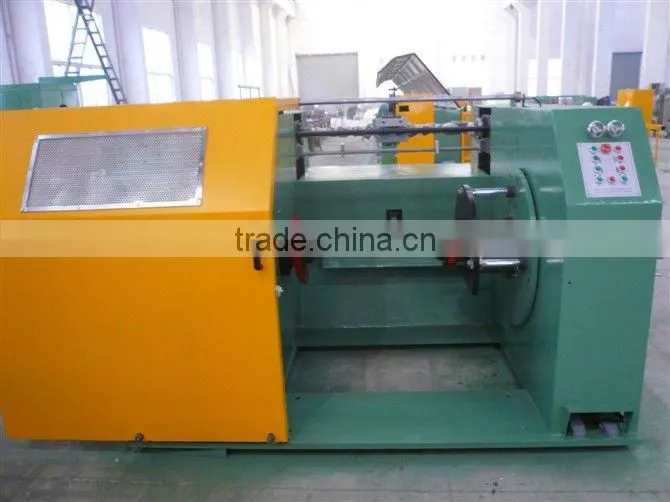

(3) SG740 h-wheel take-up machine
(4) man-machine interface screen
(5) set of control cabinets
3 work scope: (1) inlet diameter: 5.5 mm
(2) inlet line intensity: 700Mpa
(3) material: stainless steel wire, co2 wire ,carbon wire flux-cored wire etc
(4) outlet 2.8 mm in diameter. Qualifying
4 drawing speed: (1) the highest speed: 6 meters per second (2) commonly 5 meters/SEC speed:
5 (1) water vapor pressure > 0.2 Mpa
(2) pressure > 0.5 Mpa
6 motor specification: (1) the drawing machine 30KW: AC general motors
(2) take-up machine: 15KW ordinary ac motor
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Note: We can design the machine according to customers' requirement..
