Staple Wire Drawing Machine

Staple Wire Drawing Machine thumbnail-1
Staple Wire Drawing Machine thumbnail-2
Staple Wire Drawing Machine thumbnail-3
Staple Wire Drawing Machine thumbnail-4
Staple Wire Drawing Machine photo-1
Staple Wire Drawing Machine photo-2
Staple Wire Drawing Machine photo-3
Staple Wire Drawing Machine photo-4
US$ 30,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Zhangjiagang City Wanyi Machine Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number LZ600
Voltage 380V
Power(W) 15kw each block
Dimension(L*W*H) 8500X1560X1500MM
Weight 6000KG
Certification CE or SGS or your needs
Warranty ONE YEAR
After-sales Service Provided Engineers available to service machinery overseas

Black annealing wire drawing machine line



  pay-off rack(material 5.5mm)→LZ7/600 straight line drawing machine →600 trunk type take-up machine(2.0mm) →annealing furnace →rotating pay-off rack→LZ6/400 straight line drawing machine(1.0--1.3mm)→anneal furnace→oil spraying(white oil)





LZ 7/600 straight line drawing machine + 600 trunk type drawing machine

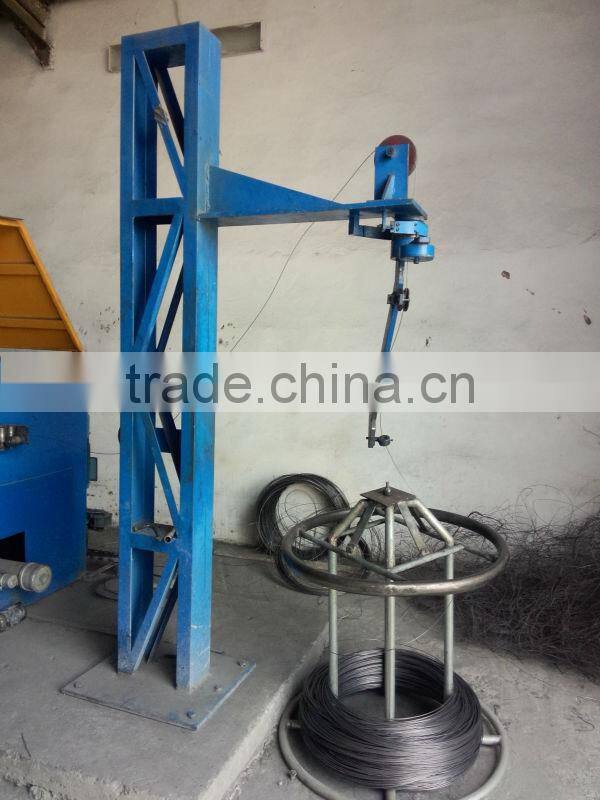

1.Equipment constituter (1) up-draft pay-off rack

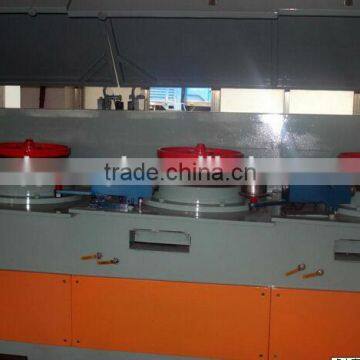

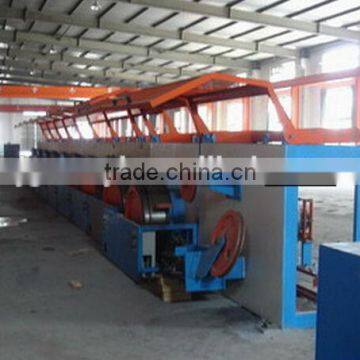

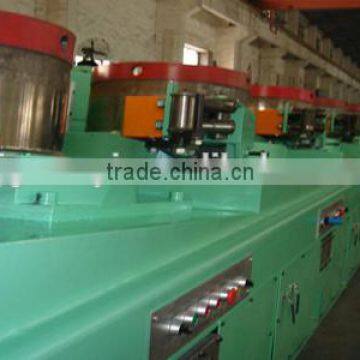

                    (2)LZ7/600 straight line drawing machine

                    (3)600 trunk type take up machine

                     (4 ) human machine interface display screen

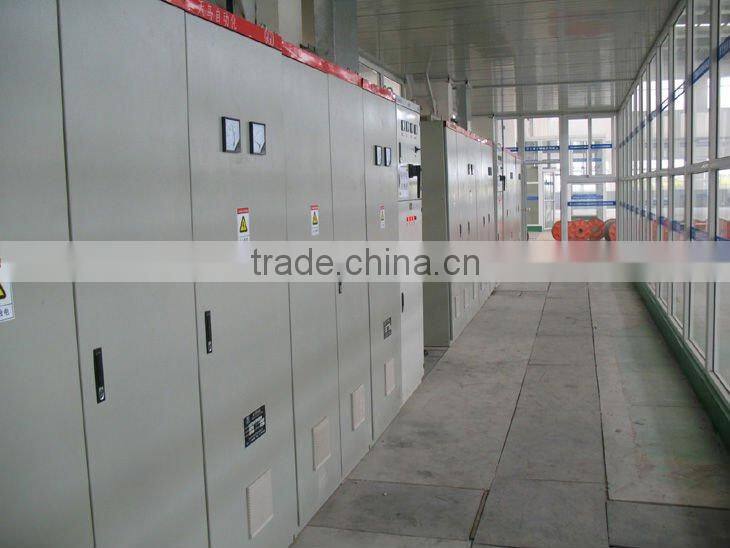

                     (5) Whole set of electrical appliance control cabinet

2. Work areas (1) input diameter 6.0 or 5.5 mm

              (2)input strength 500Mpa

              (3) input material black anneal wire

              (4) output diameter 2.0--2.4mm

3. Drawing speed(1) max 10m/s   (2) average8m/s with output 8.5t/d (10h per day)

4. Water- air pressure(1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa

5. Electric motor standard: (1)drawing machine: 22KW  AC motor

                    (2) wire coiling machine: 15KW  AC motor

staple wire drawing machinestaple wire drawing machinestaple wire drawing machinestaple wire drawing machine

                (staple wire drawing machinestaple wire drawing machinestaple wire drawing machinestaple wire drawing machine
