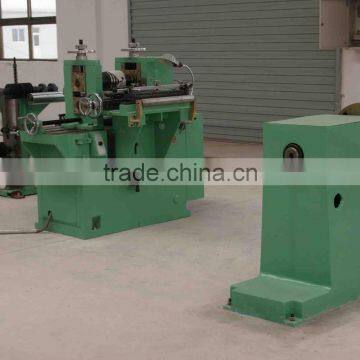

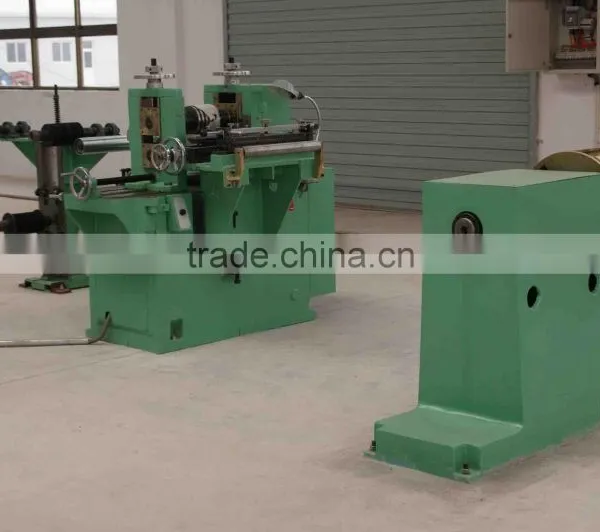

1. Shear material: Carbon steel belts and stainless steel belts
2. Specifications of raw material coils
(1) Outer diameter: Dia1200mm
(2) Inner diameter: 488mm~508mm
(3) Width: Max300mm
(4)Weight: 1,500kg
3. Material thickness
Carbon steel belt: 0.3mm~0.8mm
4. Parameters of sheared strips:
(1) Width: b≥5mm
Number of sheared strips: max 15
(2) Precision: width allowance of strips: ±0.05mm
Burr: ≤0.05mm
Side non-straightness tolerance: 1/1000mm
5. Shearing velocity: ≤60m/min
6. Inner diameter of coil winding: 350mm
7. Outer diameter of coil winding: ≤1000mm
8. Outer diameter of winding baffle disc: 1200mm
9. Weight: ≤7000kg
Items |
Unit |
LZ9-12/1200 |
LZ10/800 |
LZ9/700 |
LZ10/560 |
LZ10/400 |
Capstan diameter |
mm |
1200-900 |
800 |
700 |
560(600) |
400(450) |
Drawing dies |
time |
9-12 |
10 |
9 |
10 |
10 |
Max inlet diameter |
mm |
φ14-8 |
φ10-8 |
φ8-6.5 |
φ6.5-5.5 |
φ3.5-2.5 |
Min outlet diameter |
mm |
φ5-3 |
φ4-2.5 |
φ3-2.5 |
φ2-1.8 |
φ1.1-0.8 |
Drawing speed |
m/min |
300 |
360 |
480 |
720 |
840 |
Tensile strength |
Mpa(max) |
1300 |
1300 |
1300 |
1300 |
1300 |
Total compression rate |
% |
87.24-92.89 |
90.53-90.23 |
85.94-85.21 |
90.53-89.29 |
90.12 |
Average compression rate |
% |
20.45-19.58 |
21.00-20.75 |
19.58-19.13 |
21.00-20.02 |
20.50 |
Motor Power |
Kw |
110-90 |
90-55 |
75-55 |
37-22 |
15-7.5 |
