Help CenterFlux Core Strip Rewinding Machine/F.C.W Strip Winding Machine
Related Products
-
Professional Custom Flux Cored Wire Drawing MachineUS$ 20,000 - 65,000MOQ: 1 Set -
Advanced Stainless Steel Flux Cored Wire Drawing MachineUS$ 30,000 - 50,000MOQ: 1 Set
-
F.C.W.welding Wire Production Machine Line With High TechnicalUS$ 20,000 - 65,000MOQ: 1 Set
-
Self-shielded/hardfacing Flux Cored Welding Wire Forming MachineUS$ 20,000 - 65,000MOQ: 1 Set
-
Mild and Low-alloy Flux Cored Welding Wire Drawing Machine/production Machine LineUS$ 20,000 - 25,000MOQ: 1 Set
Specifications

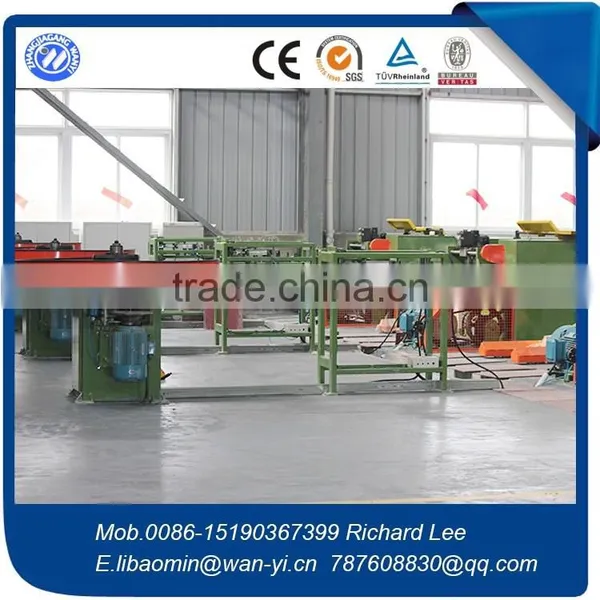

The strip winding machine is applied to producing flux cored wire line.
Strip Winding machine
Machine parameter
² Max strip winding speed: 200m/min
² Suitable Strip size: 0.3×12 ~ 0.9×18mm
² Bobbin size for strip winding: 800×600mm×Φ350mm(or depend on user’s requirement)
² Unit power: 15kw
² Max weight of each strip coil: 400kg(special requirement is available)
² Strip paying-off mode: Pay-off strip with pay-off dividing plate
² Paying-off control: Free pay-off system with control free passive traction
Power
Power: 380V, 60HZ, 3phrase
Motor
² AC Variable frequency motor SIEMENS
² Coiler: AC Variable frequency motor 5.5KW SIEMENS
² Dividing plate material: 65Mn steel, surface hardness HRC60, surface finish≤0.4Ra
Water pressure/air pressure
² Hydraulic pressure ≥0.2Mpa
² Air pressure ≥0.4Mpa
Driving form
² Tunable, pay-off rack with mechanical adjustable damping and pneumatic braking
² Energy from variable frequency motor is passed to reel by narrow V union through bridging device
Outline size: 1.25m×0.98m× 1.28m
Land area to occupy: 8.4m×2.2m
Weight: about 1.89t
Comprehensive production capacity: Max output is about 3.5t/shift of single machine, 10.5t/day and 3150t/y, the capacity of two sets is about 6300t/y
Main Technical Parameters |
|
|
|
||
Specifications |
No.of drafts |
Max.inlet wire(mm) |
duction(mm) |
Motor power(kw) |
Production speed(m/s) |
300 |
8~12 |
2.5 |
0.4 |
3~4.5 |
25 |
350 |
8~12 |
3.5 |
0.6 |
5.5~11 |
25 |
400 |
8~12 |
4.2 |
0.75 |
7.5~15 |
25 |
450 |
8~12 |
4.5 |
0.96 |
15~22 |
18 |
600 |
6~10 |
6.5 |
1.4 |
22~37 |
16 |
