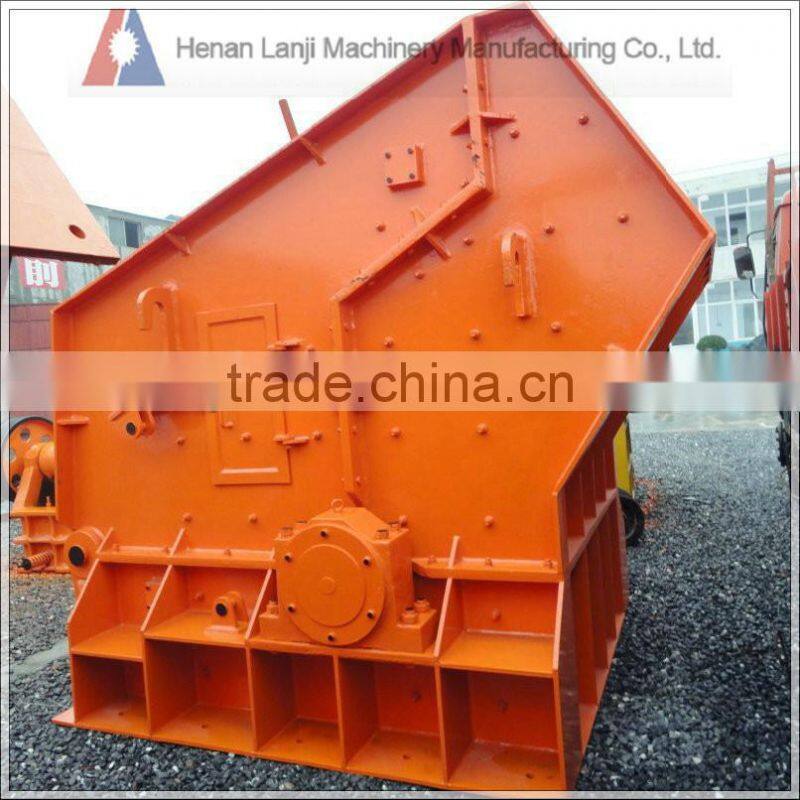

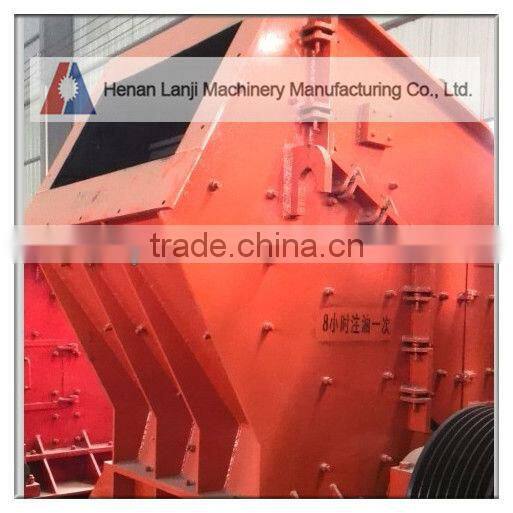

Rock Impact Crusher With Model PF 1214

 Impact crusher application:

Impact crusher is a new product that absorbs advanced technologies at home and abroad. Impact crusher is suitable for materials whose compressive strength is under 360Mpa, and particle size is under 500mm.The company impact crusher features easy maintenance, high crushing ratio and crushing efficiency etc. With end products in cubic shape, impact crushers are the ideal crusher for aggregates processing in high-type highway building, water conservancy and power construction.

Impact crusher can crush material like granite, basalt, bluestone, etc the longest side of which is less than 500mm, and anti-pressure strength is not more than 320Mpa. With excellent capacity and performance, the impact crusher is preferred to crush granite, limestone, rival gravel, etc. The impact is suitable for materials whose compressive strength is under 360Mpa and side length is under 500mm.

Impact Crusher Working Principle:

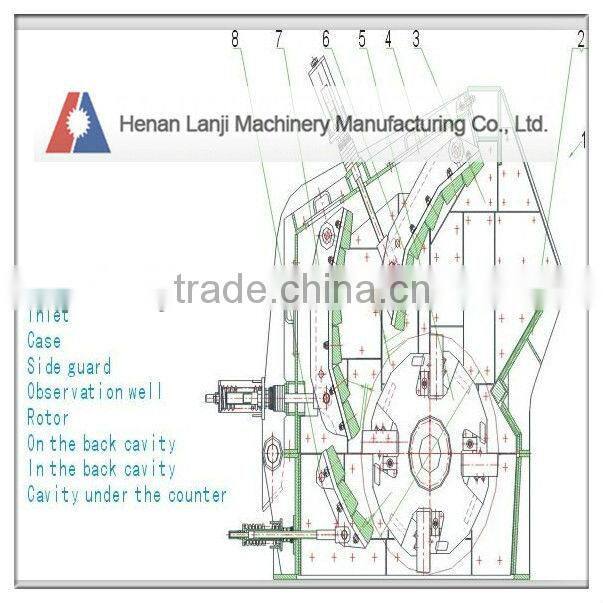

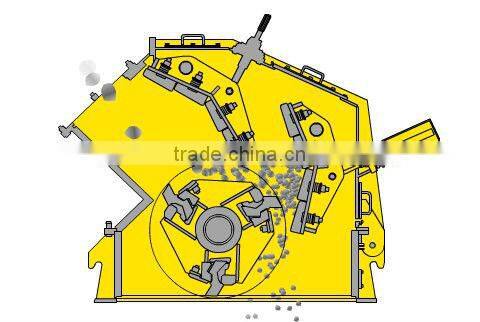

Impact crushers use impact energy to crush materials. Driven by the motor of the impact crusher, the rotor revolves at a high speed. Revolving blow bars in the rotor blow the materials. Then the materials will be thrown to the impact plates for secondary crushing. The materials im the impact crusher will be shot back to the blow bars again . This process repeats until the materials are crushed to the required size and discharged through the discharging opening at the bottom of the machine. Adjustinng the gap between the impact rack and rotor support of the impact crusher, the size and shape of the end products can be changed.

Impact Crusher Main Features

• The impact crusher is with unique simple structure, keyless connection.
• Impact Crusher is with high-chromium plating hammer and special impact liner plate.
• The impact crusher is capable of highly efficient hard rock crushing while saving energy.
• The final product of impact crusher is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.
• Easy maintenance, Reliable performance .

• Impact crusher technical parameter:

  Model	Specification (mm)	Feeding size(mm)	Max feed size(mm)	Capacity (t/h)	Motor power(kw)	Weight(kg)
  PF-0607	644*740	320*770	100	10-20	30	10216
  PF-0807	850*700	400*730	300	15-30	30-45	11138
  PF-1008	1000*800	400*830	300	30-50	37-55	12206
  PF-1010	1010*1050	400*1080	350	50-80	55-75	13138
  PF-1210	1250*1050	400*1080	350	70-120	110-132	15200
  PF-1212	1250*1250	400*1300	350	100-150	132-160	17025
  PF-1214	1250*1400	400*1430	400	130-180	160-200	19015
  PF-1315	1320*1500	860*1520	500	160-250	180-260	24600
  PF-1320	1320*2000	860*2030	500	300-350	300-375	29800
  PF-1520	1520*2000	980*2980	700	400-500	400-480	38600
