Low Price Cone Crusher From Lanji
US$ 5,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Cone Crusher
Application:
stone crushing
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Designed Stone Crushing Production LineUS$ 20,000 - 90,000MOQ: 1 Set -
2015 Professional Designed Stone Crushing Production Line With Long DurabilityUS$ 20,000 - 90,000MOQ: 1 Set
-
Silicasand/river Stone Production LineUS$ 20,000 - 90,000MOQ: 1 Set
-
Gypsum/stone/river Stone Crushing LineUS$ 20,000 - 90,000MOQ: 1 Set
-
Henan Professional Complete Stone Crushing Production LineUS$ 20,000 - 90,000MOQ: 1 Set
Type
Cone Crusher
Application
stone crushing
Motor Type
AC Motor
Power(W)
15-200 KW
Capacity(t/h)
10-200
Place of Origin
Henan, China
Brand Name
lanji
Model Number
PYB1200
Dimension(L*W*H)
2790X878X844
Weight
24
Certification
ISO9001
Warranty
1 year
After-sales Service Provided
Overseas service center available
Specifications
cone crusher1.Low price
2.The high quality
3.First-class design team

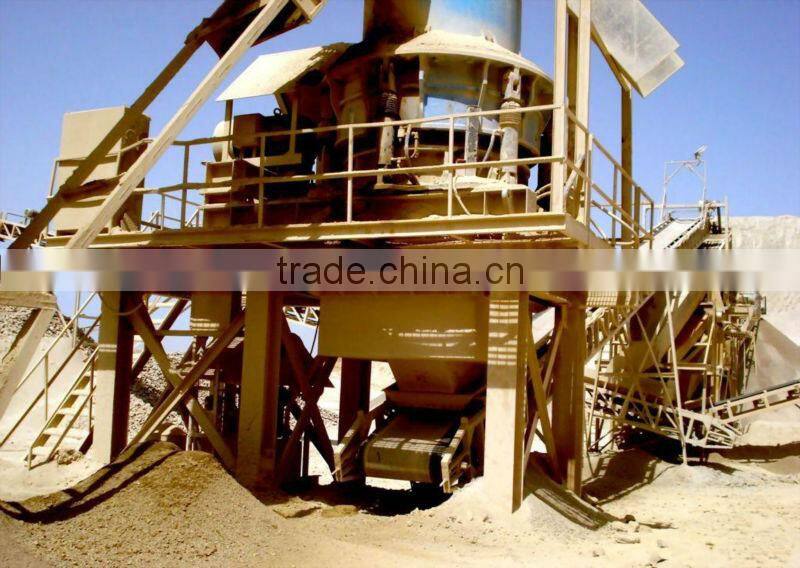

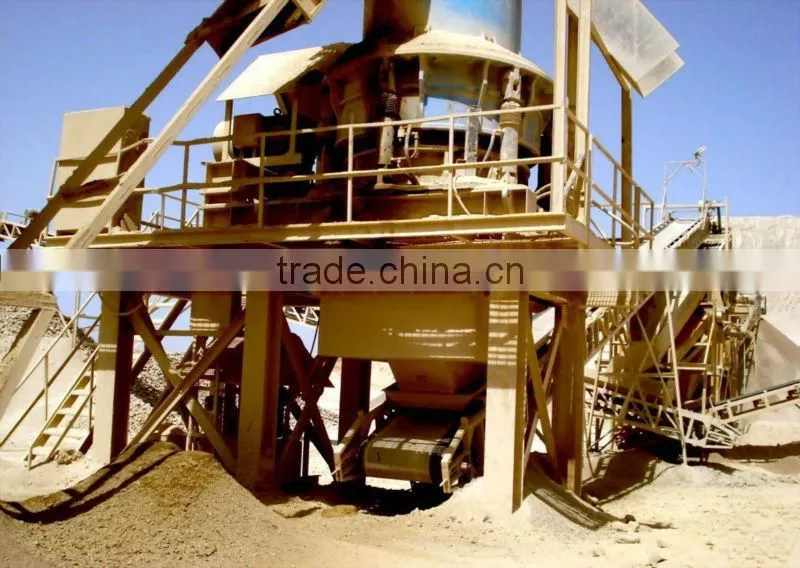

Low price Cone crusher from Lanji

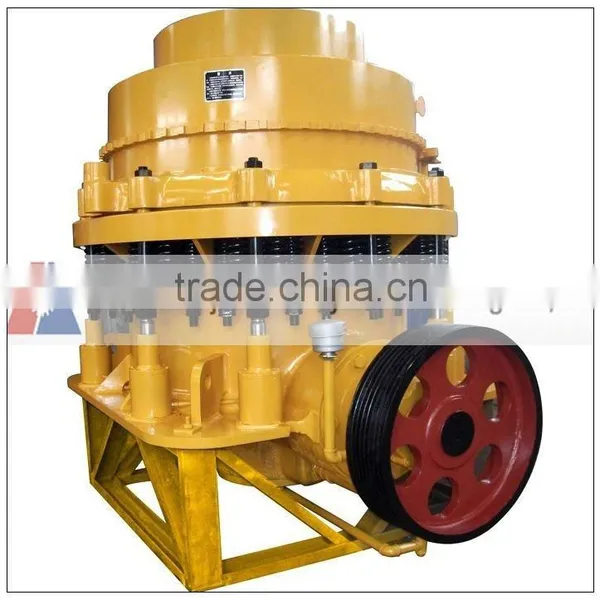

Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry. Cone crusher can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc.
This crushing equipment has compact structure and high productivity. It adopts bowl-shaped bearing which has high precision. Concentrated thin oil lubrication system is also used.
The size of the discharge opening can be adjusted by propelling cylinder. When the materials that can not be crushed enter into the crushing chamber, the spring safety device can protect the equipment.
This machine adopts grease seal to avoid mixing of water and oil. When sealing parts are worn, spring can help them recover sealing function.
1.Our cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2.The crushed materials are of equal size, thus reducing circulating load.
3.Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4.Cone crushers with different chambers are available, to meet our customers' requirements.
5.Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6.As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.
1.When cone crusher is working, motor drives the eccentric sleeve to rotate. The eccentric sleeve drives the transmission shaft and cone part to make swing movement. When they swing to the extent that the surface of the crushing wall is close to the roll mortar wall, the rocks and ores are pressed and crushed.
2.Joint between supporting sleeve and frame is compressed by spring. When metal block and other materials that can no be crushed fall into the crusher, spring will be out of sharp and discharge the objects.
3.When the materials that can not be crushed pass through the crushing chamber or the machine overloads, the spring safety system makes the cone discharging hole become larger. When objects are discharged from crushing chamber, discharging hole will automatically reset. Cone crusher resumes normal operations.
4.The surface of crushing chamber is covered with wear-resisting high manganese steel lining plate. Size of discharging hole can be adjusted hydraulically or manually.
2.The crushed materials are of equal size, thus reducing circulating load.
3.Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4.Cone crushers with different chambers are available, to meet our customers' requirements.
5.Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6.As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.
1.When cone crusher is working, motor drives the eccentric sleeve to rotate. The eccentric sleeve drives the transmission shaft and cone part to make swing movement. When they swing to the extent that the surface of the crushing wall is close to the roll mortar wall, the rocks and ores are pressed and crushed.
2.Joint between supporting sleeve and frame is compressed by spring. When metal block and other materials that can no be crushed fall into the crusher, spring will be out of sharp and discharge the objects.
3.When the materials that can not be crushed pass through the crushing chamber or the machine overloads, the spring safety system makes the cone discharging hole become larger. When objects are discharged from crushing chamber, discharging hole will automatically reset. Cone crusher resumes normal operations.
4.The surface of crushing chamber is covered with wear-resisting high manganese steel lining plate. Size of discharging hole can be adjusted hydraulically or manually.
