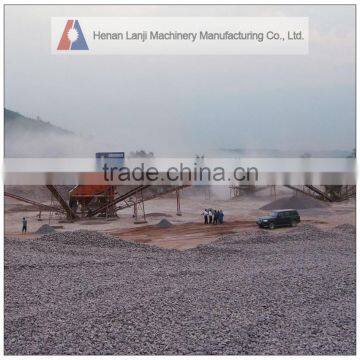

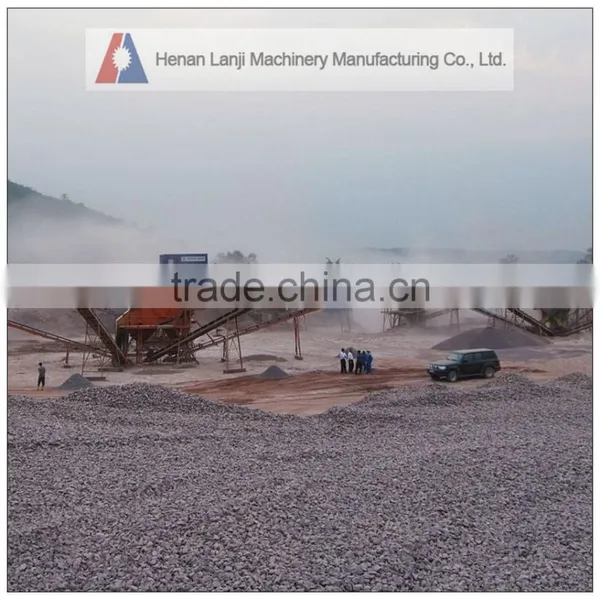

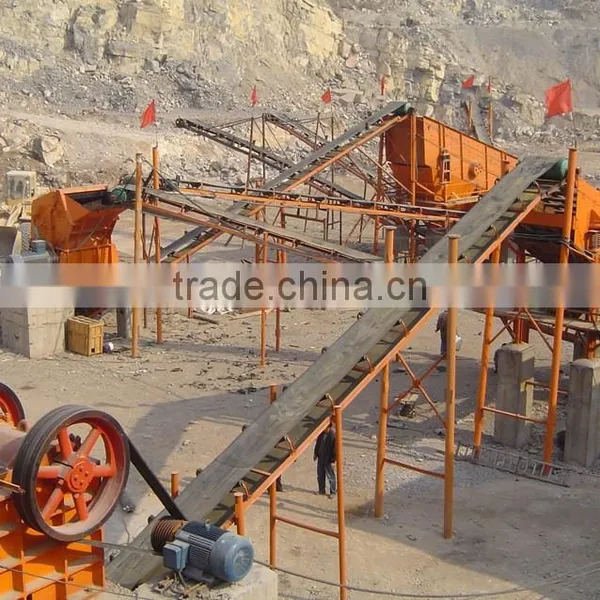

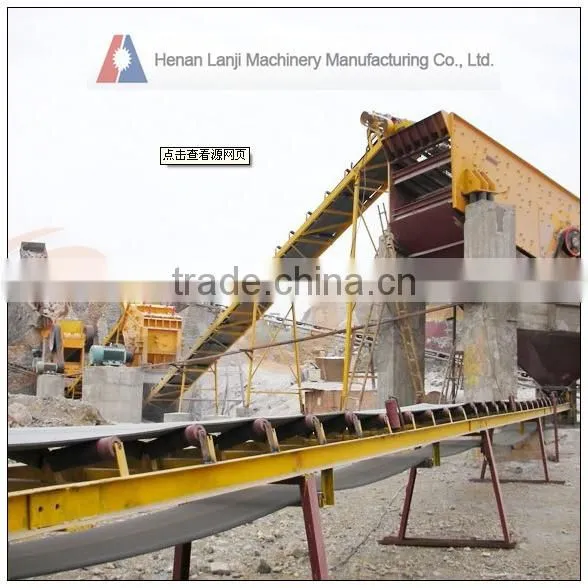

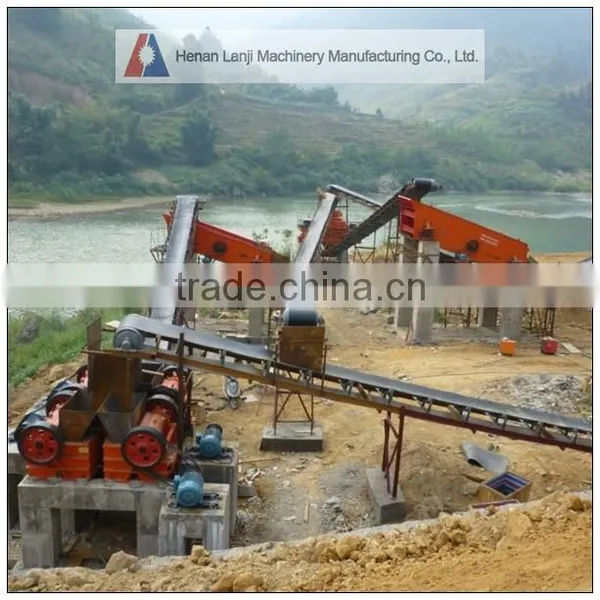

Reliable quality quarry stone crusher plant with capacity 10-300TPH

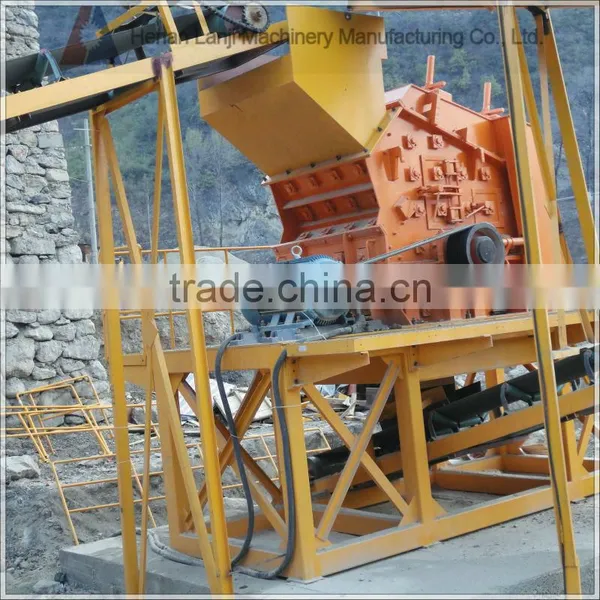

1. Impact crusher Description:
Impact crusher adopts the newest manufacturing technology and unique structure design, so the discharged product is with cubic and perfect shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, concrete aggregate, etc.
2. Impact crusher Working principle:
When the impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process wont stop till the material are crushed to the required size and then discharged from outlet.
3. Technical Data:
Model |
Specification |
Feeding size(mm) |
Max feed size(mm) |
Capacity |
Motor power(kw) |
Weight(kg) |
PF-0607 |
644*740 |
320*770 |
100 |
10-20 |
30 |
10216 |
PF-0807 |
850*700 |
400*730 |
300 |
15-30 |
30-45 |
11138 |
PF-1008 |
1000*800 |
400*830 |
300 |
30-50 |
37-55 |
12206 |
PF-1010 |
1010*1050 |
400*1080 |
350 |
50-80 |
55-75 |
13138 |
PF-1210 |
1250*1050 |
400*1080 |
350 |
70-120 |
110-132 |
15200 |
PF-1212 |
1250*1250 |
400*1300 |
350 |
100-150 |
132-160 |
17025 |
PF-1214 |
1250*1400 |
400*1430 |
400 |
130-180 |
160-200 |
19015 |
PF-1315 |
1320*1500 |
860*1520 |
500 |
160-250 |
180-260 |
24600 |
PF-1320 |
1320*2000 |
860*2030 |
500 |
300-350 |
300-375 |
29800 |
PF-1520 |
1520*2000 |
980*2980 |
700 |
400-500 |
400-480 |
38600 |
Small size can by packed by wooden case, medium size can ba packed by container and large size can be shipped in bulk.
(1) Design for production line flow and equipment layout for free according to the site condition.
(2) Supply the foundation drawing of equipment and drawing of parts made by buyer.
(3) Supply the technical parameters of peripheral equipment.
(4) During the operation, we can offer the technology service freely if the user needs to adjust the layout and application.
(5) During the operation, we only collect the cost if the user willing to upgrade the equipment when we have the advantagetechnology.
Thanks so much for you taking time to browse our quarry stoe Reliable quality quarry stone crusher plant with capacity 10-300TPH plant. Any further questions, please feel free to contact us and we are ready to so service for you!
