High efficiency mineral ore /quartz impact crusher machine
- 60 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, Jaw Crusher, stone production line | Application: | stone crushing |
Motor Type: | AC Motor | Power(W): | 5.5-160 kw | Capacity(t/h): | 1-800 t/h |
Place of Origin: | Henan, China | Brand Name: | Lanji | Model Number: | PE150*250 |
Dimension(L*W*H): | 922*745*933 | Weight: | depending on model | Certification: | ISO9001 |
Warranty: | one year including wearing parts | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High efficiency mineral ore /quartz impact crusher machine:
Impact Crusher General introdution:
Impact crusher is suitable for materials whose compressive strength is under 350Mpa, and particle size is less than 500mm. With end products in cubic shape, the impact crusher is widely used for sand and rock producing in the industry of roads, railways, reservoir, electricity power and building materials and so on.
Impact crusher Application:
Adopting the latest manufacturing technology and unique structure design, the PF series impact crusher can produce cubic products with very good grain shape without tension and crack. It can crush each kind of coarse, medium, fine cubic material (granite, limestone and concrete etc) with feeding size not more than 500mm and crushing strength not more than 350MPa and is widely applied to secondary and tertiary crushing of various ores and medium- hard materials in railway, highway, energy, cement, chemical industry construction etc.
Impact Crusher Working principle:

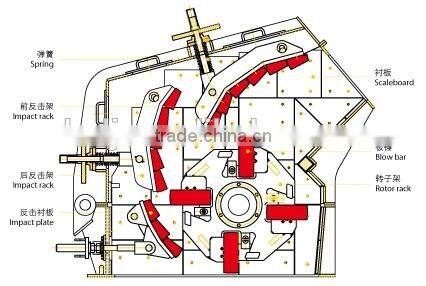

When the impact crushing machine works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact stone crusher and mineral impact crusher.
Impact crusher main technical parameters:
Model | Specification (mm) | Feed Size (mm) | Max. feeding side length(mm) | Capacity (t/h) | Power (kw) | Total Weight (t) | Dimensions (L*W*H) (mm) |
PF-1007 | Ø1000*700 | 400*730 | 300 | 30-70 | 45 | 12 | 2330*1660*2300 |
PF-1010 | Ø1000*1050 | 400*1080 | 350 | 50-90 | 55 | 15 | 2370*1700*2390 |
PF-1210 | Ø1250*1050 | 400*1080 | 350 | 70-130 | 110 | 17.7 | 2680*2160*2800 |
PF-1214 | Ø1250*1400 | 400*1430 | 350 | 100-180 | 132 | 22.4 | 2650*2460*2800 |
PF-1315 | Ø1320*1500 | 860*1520 | 500 | 130-250 | 220 | 27 | 3180*2720*2620 |
PF-1520 | Ø1500*2000 | 830*2040 | 700 | 300-550 | 440 | 50.6 | 3959*3564*3330 |
