aggregate crushing plant with reliable structure and highperformance for cobble,riverstone,mineral ore,etc

aggregate crushing plant  with reliable structure and highperformance for cobble,riverstone,mineral ore,etc    :

We provide a complete line of aggregate crushing plant ,the output is widely used in road, bridge, house, high building,railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.

Suitable material,Limestone , Calcite ,marble ,shale , sandstone,cobblestone, quartzite ,granite, basalt, fluorite, mineral ore,various of rock, etc .

Aggregate crushing plant supply:

1.Vibrating feeder, GZD series to meet user’s different processing capacity;

2.First crushing: Jaw crusher, or Impact crusher, or cone crusher to meet user’s choice.

3.Secondary crushing: fine jaw crusher, or impact crusher, or cone crusher(spring type, spring and hydraulic type, hydraulic type)

4.Vibrating screen, YK series, linear series.

5.Belt conveyor, stationary type, or mobile type sand stone production line

6.Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc.

7.Electric control cabinet sand stone production line

8.Diesel power generation set for choosing.

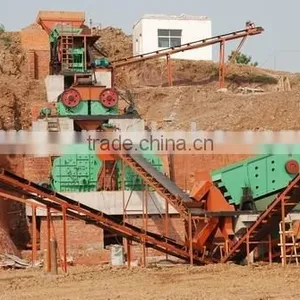

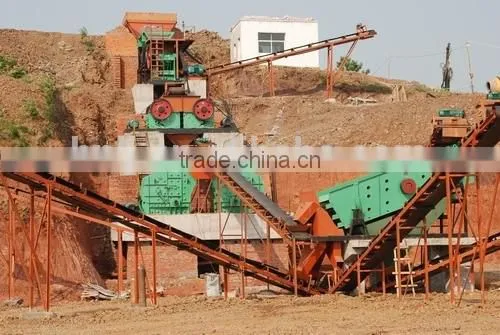

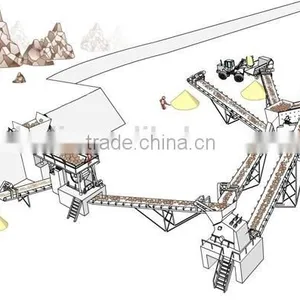

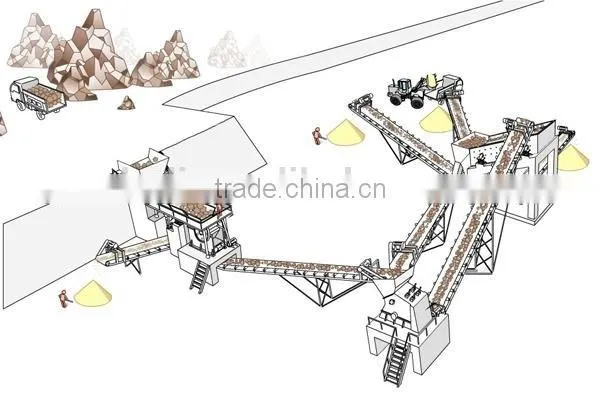

Aggregate crushing plant:

1. Big rocks are transported to the working site of stone production plant from quarry.

2. The rocks are transferred to primary crusher by vibrating feeder. Once there is a hopper prior to the vibrating feeder, the rocks are stored in the hopper firstly.

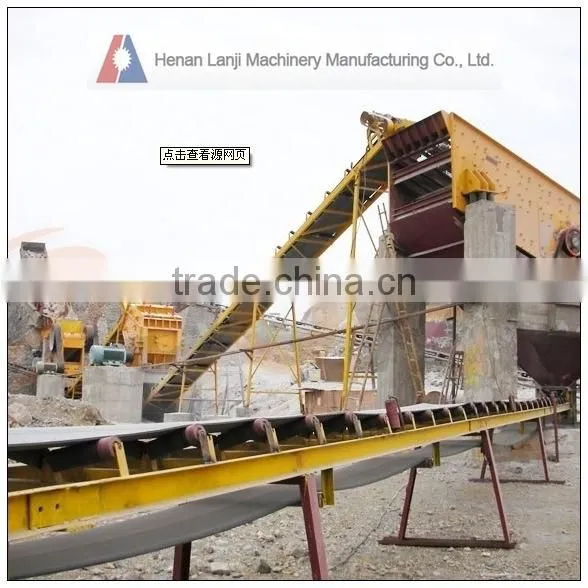

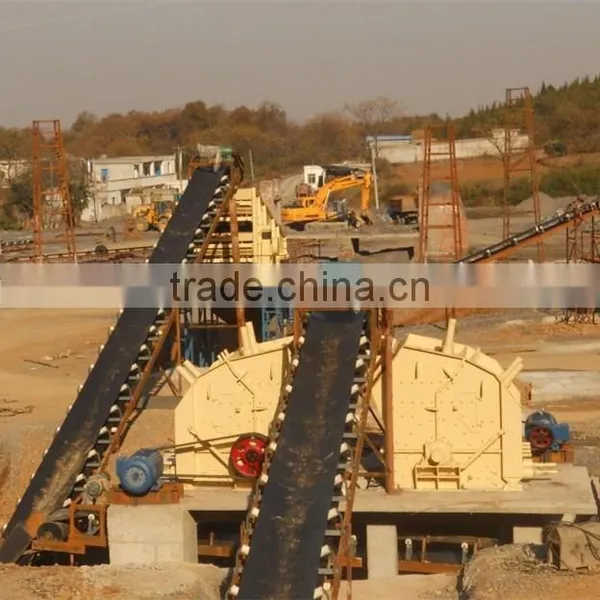

3. The crushed materials are transferred to Impact Crusher by Belt Conveyor for secondary crushing.

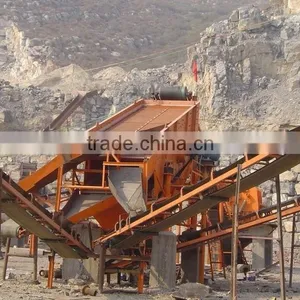

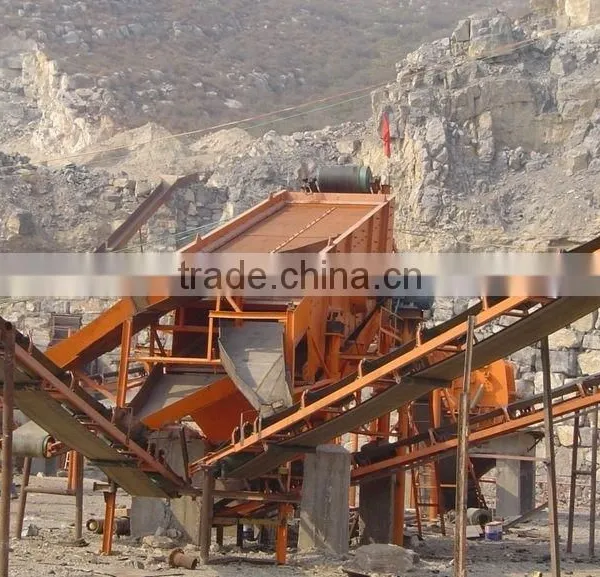

4. The materials are transferred to the vibrating screen, and screened into different sizes.

5. Those aggregate with suitable size will be transferred to the final product pile; while those with unsuitable size will be transferred to the Impact Crusher for re-crushing.

This forms a closed circuit manifold cycles. The sizes of final products will be graded and separated according to customers' requirements and application, and the deduster will be attached for the sake of environment protection.

Main advantages of aggregate crushing plant:

1. Customerized design

The production line is designed according to customer's requirement on the output size, types of output and capacity, as well as other factors such as material property, site conditions and purpose.

2. High efficiency and low cost

The arrangement of the machines in the production line can work efficiently and act for the maximum effect, which can ensure the efficiency and increase the output in unit time so that to lower the average cost of finished product (per ton).

3. Standard component

It is much convenien for replacement and maintenance of the machines. Shorten the shutdown time resulted from those maintenance.

4. Optimized production flow

The optimized production flow can ensure the capacity of the whole production line, the density of piling up and the shape of finished product, to satisfy the various purpose of product.

Aggregate crushing plant design ( It is for hard rock, such as granite, river stone, basalt, gold ore, iron ore etc.)

Equipment Configuration of hard stone production line:

vibrating feeder + PE series jaw crusher + /PY series cone crusher + Belt conveyor + YK series circular vibrating screen;

vibrating feeder + PE series jaw crusher + PF series impact crusher + VSI series vertical shaft impact crusher + Belt conveyor + YK series circular vibrating screen.

If the feeding size is smaller than 115mm, 150mm, 200mm, it can be crushed by the impact crusher or cone crusher directly, and avoid the primary stage crushing.

Aggregate crushing plant is the sandstone special equipment for the building,highway ,railway and other sandstone use industry.It is mainly composed by vibrating feeder,jaw crusher,impact crusher,vibrating screen,vertical shaft impact crusher,belt conveyor,etc. When design the stone production line,not only satisfy the crustomer’s different requirement,also notice the following factor:

1.Productivity

The productivity is one important technological parameter ,the productivity include two content: one is the qualified particle product productivity,another is the all products productivity,so for the actual project,every qualified particle product productivity is more when conifrm the equipment productivity,consider the actual requirements first.

2.Finished product quality requirement:

The finished product has particle ,product grading,particle shape,etc.in the different technology process, the finished product quality requirement is different,the product quality is related to the crusher and production process.

3.Raw material characteristic:

The raw materials hardness,grading,silt content,and the water content is important parameter,different raw material has different crushing and screening equipment,when the raw material hardness is bigger,select the jaw crusher,cone crusher as the primary crushing,when the raw material hardness is smaller,can select the impact crusher as the secondary crushing.
