Home > Products > Screen Plant > High efficiency vibrating sieving machine

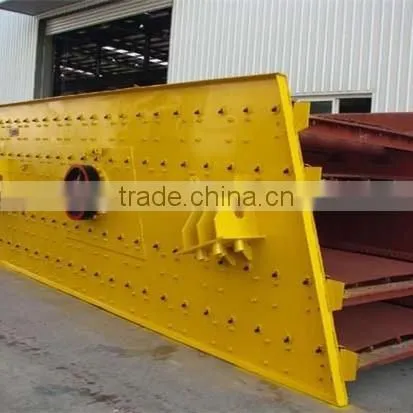

High efficiency vibrating sieving machine
- 100 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | Lanji | Model Number: | 2YK2460 |
Voltage: | 380v | Power(W): | 37kw | Dimension(L*W*H): | 7450*3230*1500 |
Weight: | 15600kg | Certification: | ISO9001 | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High efficiency vibrating sieving machine
INTRODUCTION
- Mining vibrating sieving machine is a new type vibrating screen . It is especially designed for quarry to separate stone.YZ,YK series are characterized by advanced structure,strong excited force,low noise,easy maintenance,firm and durable design,etc.
- Mining vibrating sieving machine is widely used for grading production in mines ,building materials ,transportation ,energy and chemical industry ,etc .
Advantages
- Because of strong vibration of sieve box, it reduces the phenomenon that materials block the sieve, and make the sieve high screening efficiency and productivity.
- Simple structure ,easily removable screen surface
- Low power consumption per ton of material when screening
Technical parameters of mining vibrating sieving machine
Model | Layers | Screen Size (M2) | Sieve Size (mm) | Max Feed Size(mm) |
(m3/h) | Frequency Power (r/min) | Double amplitude(mm) | Motor Power (kw) | Screen surface | Screen surface specification(MM) | Weight(kg) |
2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 2500 |
3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 2850 |
2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 3000 |
3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 3600 |
2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 3600 |
3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4200 |
2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 4890 |
3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5700 |
