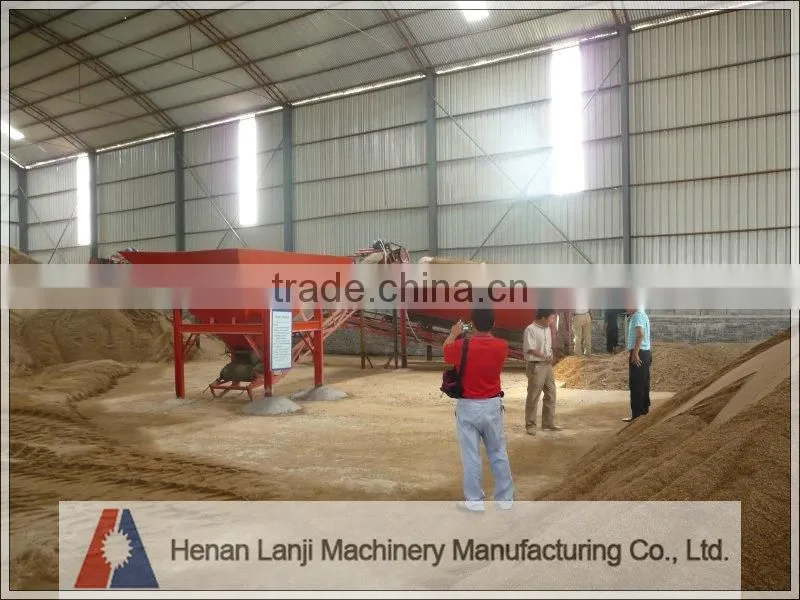

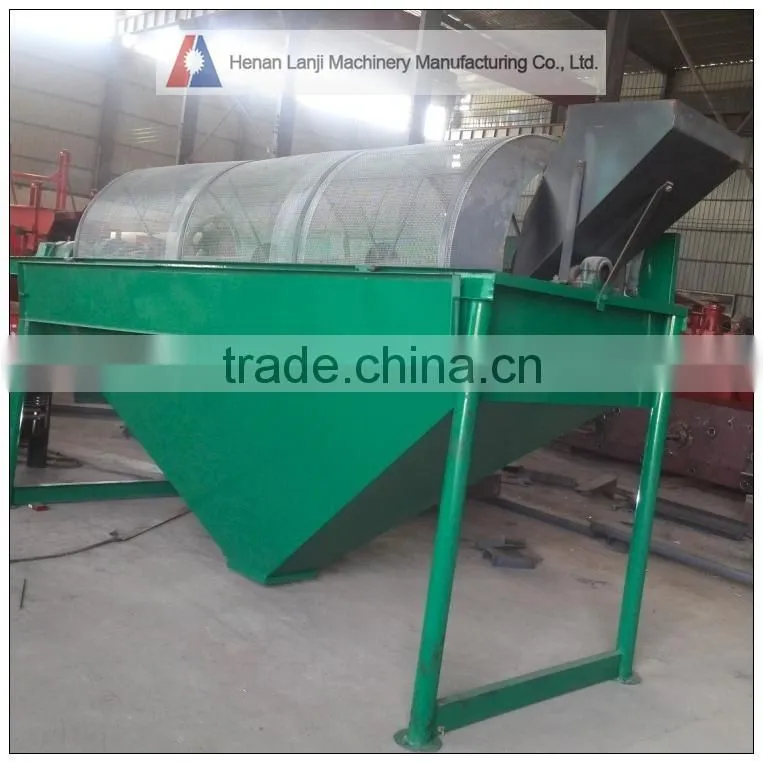

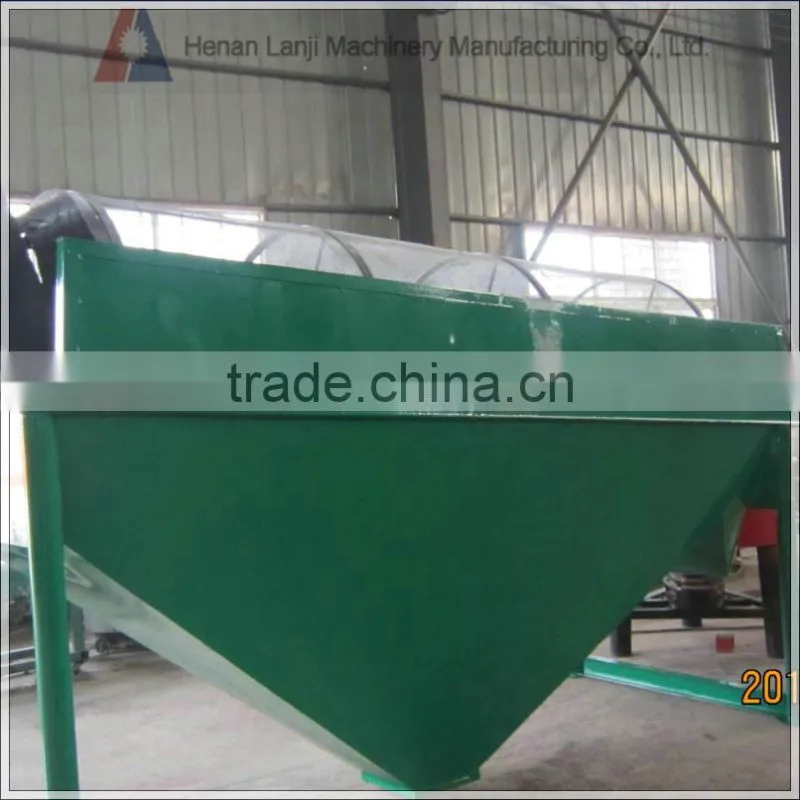

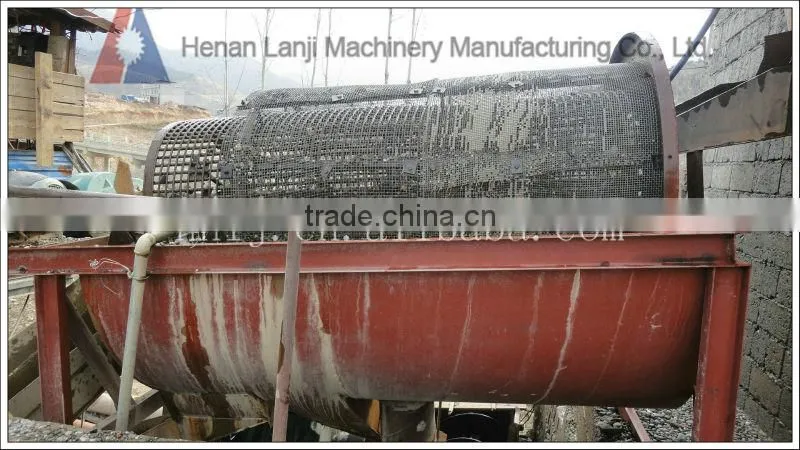

Alluvial gold ore trommel screening machine :
Gold trommel screen application:
Trommel screen is suitable to screen materials which are wet and easy blocking : sand gold ore,coal,coke,lime ,etc. largest screened sizeis 100mm,middle size is 10-50mm, fine size is below 3mm. Trommel screen is suitable for classifying powdery materials with outstanding screening effect. The screen mesh is 60-200; power is 0.75-3kw and output is 500-1500kg/h.

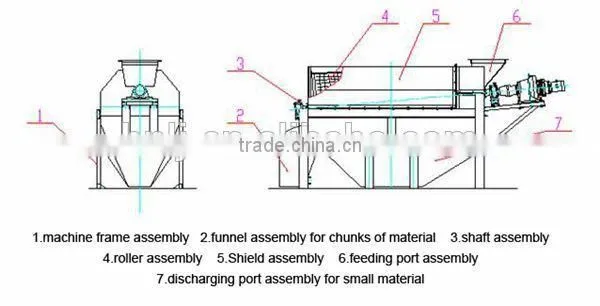

Gold trommel screen structure drawing:
Gold trommel screen main features:
1. Stable operation
2. High screening efficiency
3. Big output
4. Convenient installation
Gold trommel screen main features:
Model | Specification (m) | Slope | Rotary speed | Sieve pore(mm) | Max feeding size (mm) | Production capacity(m3/h) | Motor power (kw) | |
Sieve pore(2mm) | Sieve pore(20mm) | |||||||
GTS820 | Φ0.8X2 | 6° | 32 | 2-20 | Mesh size X2.5 | 7 | 30 | 3 |
GTS830 | Φ0.8X3 | 6° | 32 | 2-20 | Mesh size X2.5 | 8 | 50 | 3 |
GTS1030 | Φ1X3 | 6° | 25 | 2-20 | Mesh size X2.5 | 10 | 60 | 4 |
GTS1040 | Φ1X4 | 6° | 25 | 2-20 | Mesh size X2.5 | 11 | 80 | 4 |
GTS1230 | Φ1.2X3 | 6° | 20 | 2-20 | Mesh size X2.5 | 12 | 100 | 5.5 |
GTS1240 | Φ1.2X4 | 6° | 20 | 2-20 | Mesh size X2.5 | 14 | 120 | 5.5 |
GTS1250 | Φ1.2X5 | 6° | 20 | 2-20 | Mesh size X2.5 | 15 | 140 | 5.5 |
GTS1530 | Φ1.5X3 | 6° | 17 | 2-20 | Mesh size X2.5 | 16 | 120 | 5.5 |
GTS1540 | Φ1.5X4 | 6° | 17 | 2-20 | Mesh size X2.5 | 18 | 150 | 7.5 |
GTS1550 | Φ1.5X5 | 6° | 17 | 2-20 | Mesh size X2.5 | 20 | 180 | 11 |
GTS1560 | Φ1.5X5 | 6° | 17 | 2-20 | Mesh size X2.5 | 22 | 200 | 11 |
