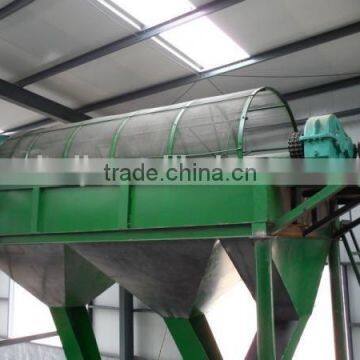

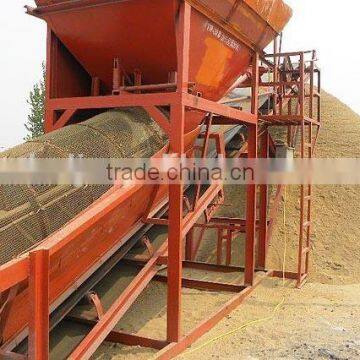

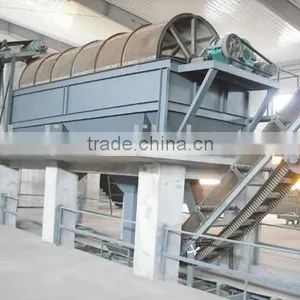

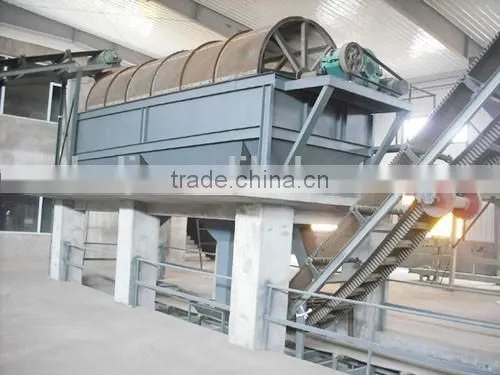

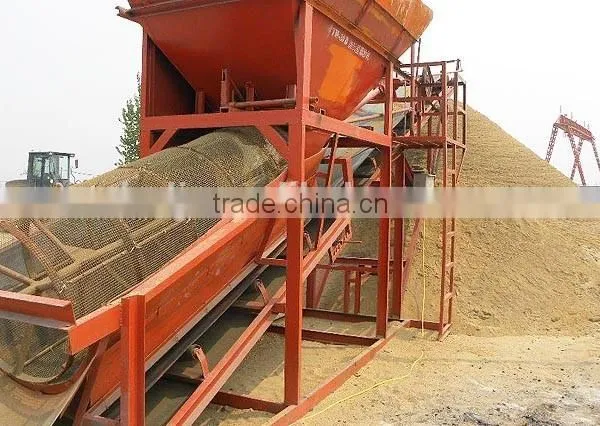

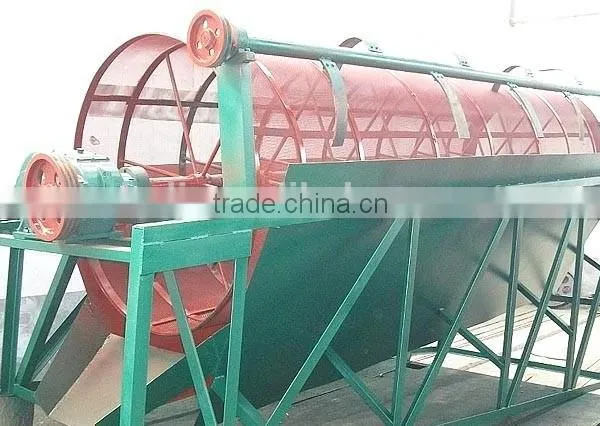

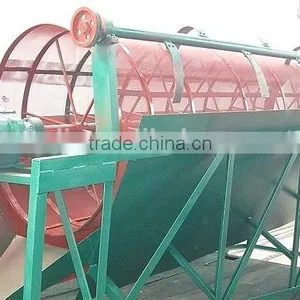

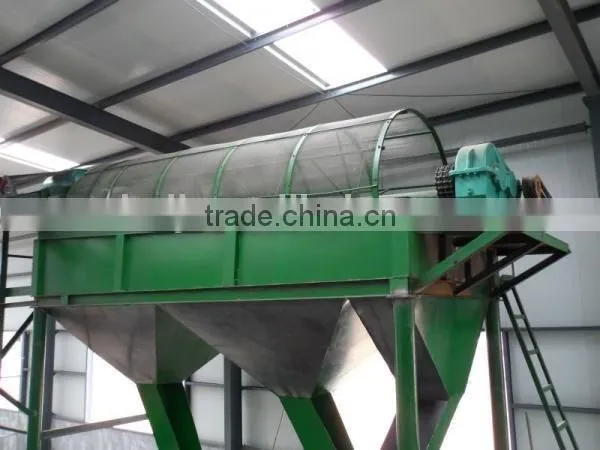

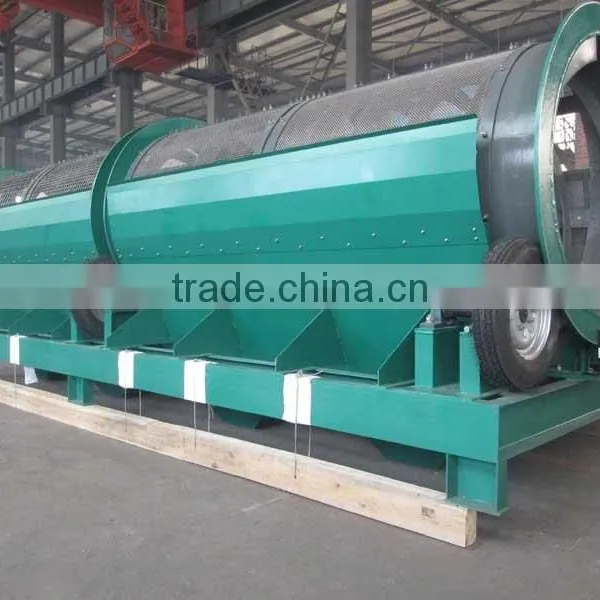

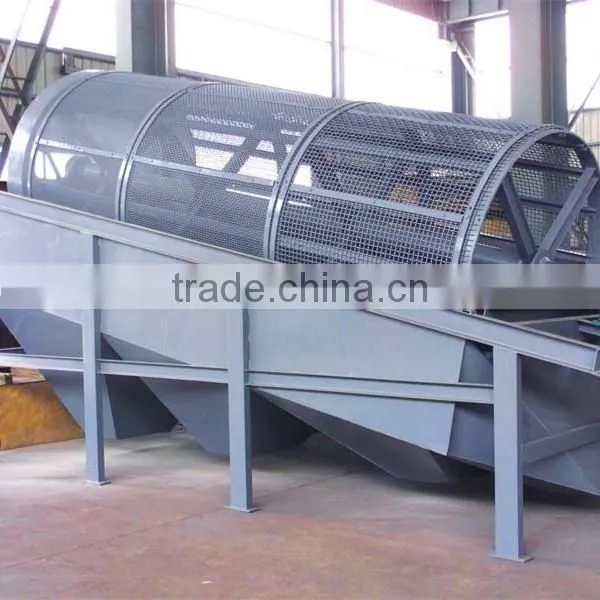

Alluvial gold ore trommel screen :
-Brief Introduction
1) Multi-functional
Roller or drum trommel screen is used for classification, filtering, sieving , cleaning and washing.
2) Main Features
Large capacity, smooth running, easy maintenance, longer service life and less blocking of the screen.
3) Applicable Industry
Quarry, coal, gold mine, chemical, metallurgy, construction, mineral selecting industry, etc.
Gold trommel screen application:
Gold Trommel screen is suitable to screen materials which are wet and easy blocking : sand gold ore,coal,coke,lime ,etc. largest screened sizeis 100mm,middle size is 10-50mm, fine size is below 3mm. Trommel screen is suitable for classifying powdery materials with outstanding screening effect. The screen mesh is 60-200; power is 0.75-3kw and output is 500-1500kg/h.

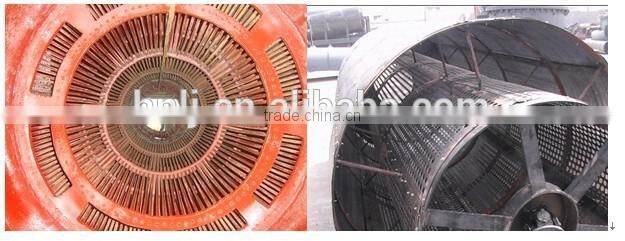

Gold trommel screen structure drawing:
Gold trommel screen main features:
1. Stable operation
2. High screening efficiency
3. Big output
4. Convenient installation
Gold trommel screen main features:
Model |
Specification (m) |
Slope |
Rotary speed |
Sieve pore(mm) |
Max feeding size (mm) |
Production capacity(m3/h) |
Motor power (kw) |
|
Sieve pore(2mm) |
Sieve pore(20mm) |
|||||||
GTS820 |
Φ0.8X2 |
6° |
32 |
2-20 |
Mesh size X2.5 |
7 |
30 |
3 |
GTS830 |
Φ0.8X3 |
6° |
32 |
2-20 |
Mesh size X2.5 |
8 |
50 |
3 |
GTS1030 |
Φ1X3 |
6° |
25 |
2-20 |
Mesh size X2.5 |
10 |
60 |
4 |
GTS1040 |
Φ1X4 |
6° |
25 |
2-20 |
Mesh size X2.5 |
11 |
80 |
4 |
GTS1230 |
Φ1.2X3 |
6° |
20 |
2-20 |
Mesh size X2.5 |
12 |
100 |
5.5 |
GTS1240 |
Φ1.2X4 |
6° |
20 |
2-20 |
Mesh size X2.5 |
14 |
120 |
5.5 |
GTS1250 |
Φ1.2X5 |
6° |
20 |
2-20 |
Mesh size X2.5 |
15 |
140 |
5.5 |
GTS1530 |
Φ1.5X3 |
6° |
17 |
2-20 |
Mesh size X2.5 |
16 |
120 |
5.5 |
GTS1540 |
Φ1.5X4 |
6° |
17 |
2-20 |
Mesh size X2.5 |
18 |
150 |
7.5 |
GTS1550 |
Φ1.5X5 |
6° |
17 |
2-20 |
Mesh size X2.5 |
20 |
180 |
11 |
GTS1560 |
Φ1.5X5 |
6° |
17 |
2-20 |
Mesh size X2.5 |
22 |
200 |
11 |
