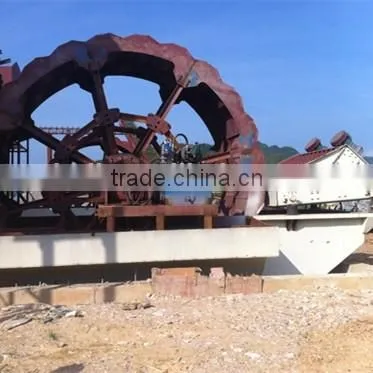

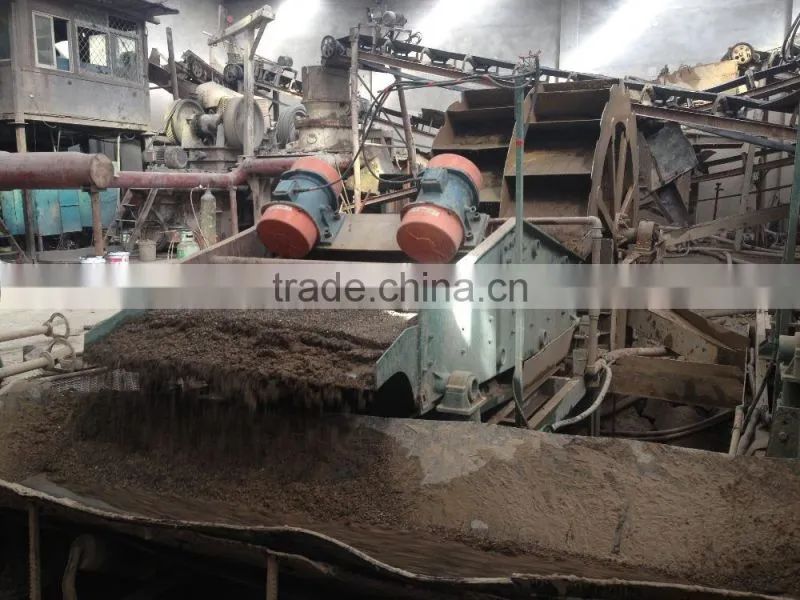

Help CenterSand Washing Plant With Hydrocyclone Machine
Related Products
-
Sand Washing and Dewatering Screen Unit With HydrocycloneUS$ 5,000 - 20,000MOQ: 1 Set -
Dewatering Screen With Hydrocyclone System for Sand Washing PlantUS$ 5,000 - 20,000MOQ: 1 Set
-
Beach Sand Spiral Sand Washer Machine/spiral Sand Washing Amchine With Nice PriceUS$ 8,000 - 100,000MOQ: 1 Set
-
Dewatering Screen With Hydrocyclone for Sand Washing&recovery PlantUS$ 5,000 - 20,000MOQ: 1 Set
-
Rotary Drum Screen for Sand Washing PlantUS$ 5,000 - 16,000MOQ: 1 Set

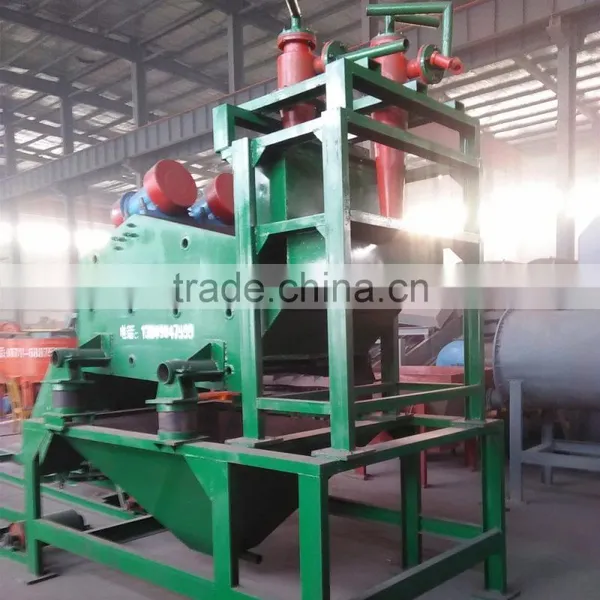

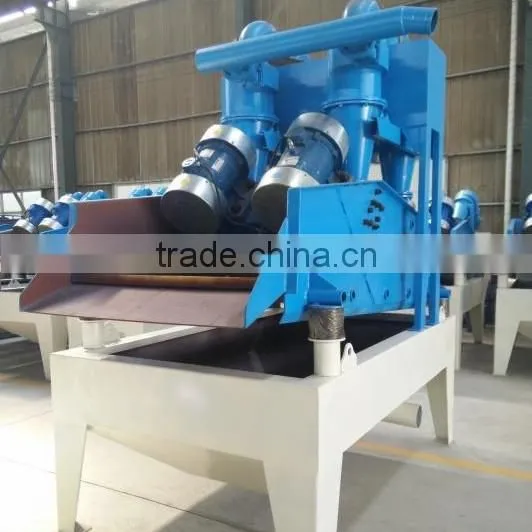

Dewatering screen:
High-frequency vibration and angle sifter design with large capacity per unit area. High-quality wear-resisting seive plate with good dehydrated effect and long working life. The level of moisture that can be obtained in the end product is between 10% and 15%, depending on its nature, particle size distribution and water content in the feed materials. Low noise and low consumption. Easy-maintenance.
Working principle of the dewatering screen:
First, feed the coal to the hydro cyclone through the pump, then the material flow in dewatering sieve, material on the sieve discharged and conveyed by the belt conveyor, the material get screening and dehydration.
Performance of the dewatering screen:
1)Stable structure and strong exciting force
2) High efficiency, little noise pollution
3) Handy maintenance and durability
4) Simple structure and easy to disassemble & replace
5) Less electricity power consumption
Dewatering screen main technical parameters:
Model |
Screen area(square meter) |
Power (kw) |
Production capacity (m³/h) |
Input size(mm) |
Weight (t) |
Overall dimensions(mm) |
TS0820 |
1.5 |
0.75×2 |
5-10 |
≤10 |
0.8 |
2300*1000*750 |
TS0920 |
1.8 |
1.1×2 |
10-20 |
≤10 |
1.2 |
2300*1200*750 |
TS1020 |
2 |
1.5×2 |
20-30 |
≤10 |
1.6 |
2300*1300*750 |
TS1225 |
3 |
2.2×2 |
50-80 |
≤10 |
2.1 |
2800*1500*800 |
TS1530 |
4.5 |
3×2 |
100-120 |
≤10 |
3.2 |
3300*1800*800 |
