2016 Professional design gold ore beneficiation equipment with low price

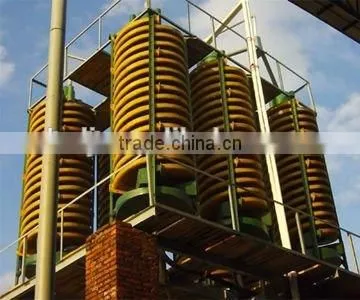

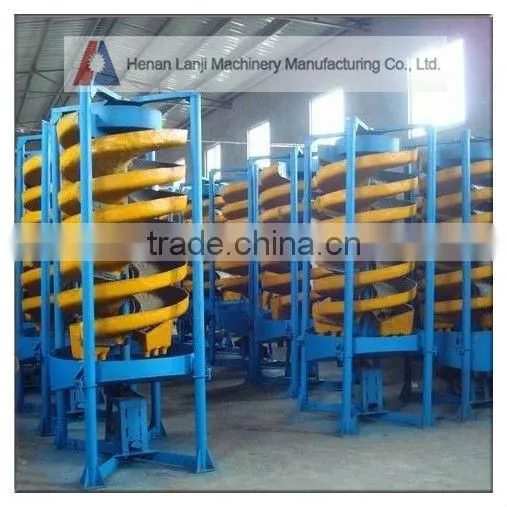

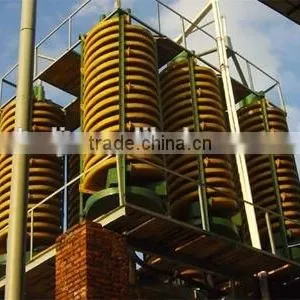

1.Spiral chute Application:
Spiral chute is applicable to material separation of size 0.3 - 0.02 mm, such as of Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin, Tantalum ore, Niobium mine and other non-ferrous metals, precious metals and non-metallic minerals, which with proportion differences.
Spiral chute is gravity concentrators and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium.
Spiral Chute is made up of feeder, feed chute, spiral flute, bracket, intercepting slot, and supporting frame, etc.
2. Spiral chute Feature:
1.Reasonable structure and small occupation area
2.High recovery, high efficiency, and precise separation,
3.Light in weight, rust and corrosion resistant;
4.Simple installation and Minimal maintenance requirements
5.Low operating cost and long operating life
6.Reliable running with minimal operator attention.
3. Spiral chute Technical Data:
| Specification | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
| Spiral Diameter (mm ) | 1500 | 1200 | 900 | 600 | 400 | |
| Spiral Pitch (mm ) | 720/540 | 900/720 /540 | 675/540 /405 | 450/360 /270 | 240/180 | |
| Ratio of Pitch To Diameter | 0.48/0.36 | 0.75/0.6 /0.45 | 0.75/0.6 /0.45 | 0.75/0.6 /0.45 | 0.6/0.45 | |
| Lateral Obliquity | 9° | 9° | 9° | 9° | 9° | |
| Starts | 4 | 4 | 4 | 3 | 2 | |
| Feeding Sizes (mm ) | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
| Feeding Density (%) | 30-60 | 25-35 | 25-55 | 25-55 | 25-55 | |
| Capacity (t/h ) | 6-8 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
| Dimension (mm ) | Length | 1600 | 1360 | 1060 | 700 | 460 |
| Width | 1600 | 1360 | 1060 | 700 | 460 | |
| Height | 5300 | 5230 | 4000 | 2600 | 1500 | |
| Weight (kg ) | 800 | 600 | 400 | 150 | 50 | |
Thanks so much for you taking time to browse our 2015 Professional design gold ore machine with low price. Any further questions, please feel free to contact us and we are ready to so service for you!
