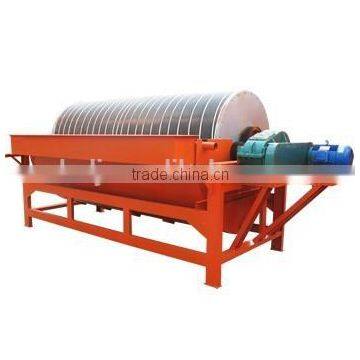

Permanent wet magnetic separator equipment CTB1050*2400
Permanent wet magnetic separator application:
This series of products is used in wet magnetic separation of materials with granularity below 3mm like magnetite, pyrrhotine, bake ore and washingtonite. It is also used for deironing materials like non-metal ores, coal and building materials. Average magnetic induction of barrel surface is 100-600mT. According to customers’ demands, it can provide magnetic separation with different magnetic induction like forward flow, semi counter flow and counter flow. The products have features, such as simple structure, high yield, convenient operation and easy maintenance.
Permanent wet magnetic separator main technical parameters:
Model |
Shell diameter(mm) |
Shell length(mm) |
Shell rotation speed(r/min) |
Feeding size(mm) |
Processing capacity(t/h) |
Power(kw) |
CTB6012 |
600 |
1200 |
<35 |
2-0 |
10-20 |
1.5 |
CTB6018 |
600 |
1800 |
<35 |
2-0 |
15-30 |
2.2 |
CTB7518 |
750 |
1800 |
<35 |
2-0 |
20-45 |
2.2 |
CTB9018 |
900 |
1800 |
<35 |
3-0 |
40-60 |
3 |
CTB9021 |
900 |
2100 |
<35 |
3-0 |
45-60 |
3 |
CTB9024 |
900 |
2400 |
<28 |
3-0 |
45-70 |
4 |
CTB1018 |
1050 |
1800 |
<20 |
3-0 |
50-75 |
5.5 |
CTB1021 |
1050 |
2100 |
<20 |
3-0 |
50-100 |
5.5 |
CTB1024 |
1050 |
2400 |
<20 |
3-0 |
60-120 |
5.5 |
CTB1218 |
1200 |
1800 |
<18 |
3-0 |
80-140 |
5.5 |
CTB1224 |
1200 |
2400 |
<18 |
3-0 |
85-180 |
7.5 |
CTB1230 |
1200 |
3000 |
<18 |
3-0 |
100-180 |
7.5 |
Permanent wet magnetic separator features:
1. short magnetic circuit
2.little magnetic flux leakage
3.high magnetic intensity
4.low energy consumption
5.fine beneficiating results
6.simple structure
7.easy to maintain.
We also offer single machine of above and have supplied complete set mechanical equipments for the clients from all of the world
Thanks so much for you taking time to browse our iron ore beneficiation production line. Any further questions, please feel free to contact us and we are ready to so service for you!
