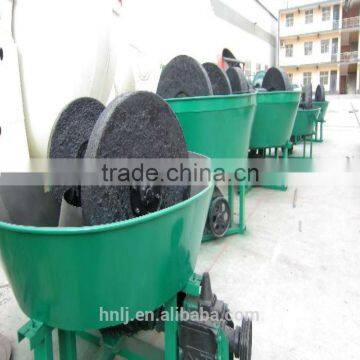

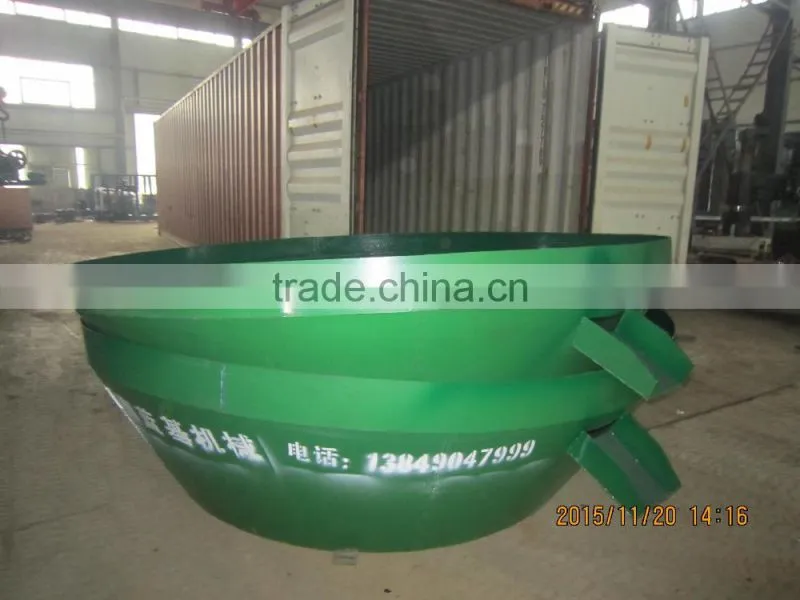

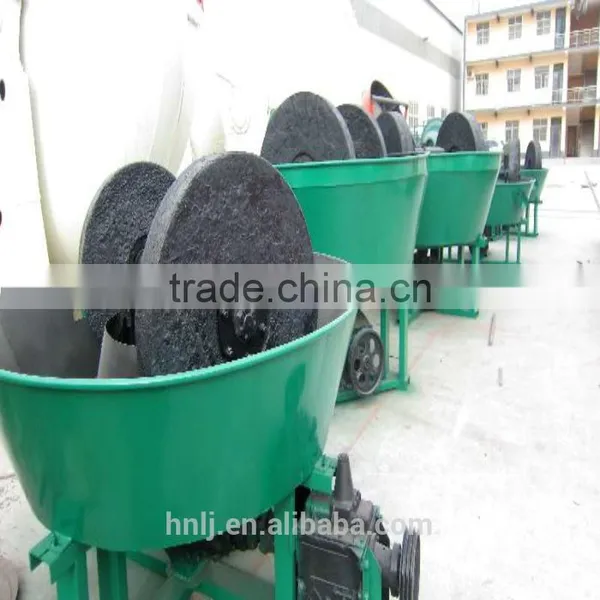

wet pan mill for grinding gold ore Dia1100mmA:
Introduction of the wet pan mill:
The machine mainly used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can be selected grind gold machine can be used. Characteristics: grind gold through the raw material mixing, rolling, crushing, rolling repeatedly reach moisture equilibrium ratio of uniform, low gas content, improve the forming rate and forming quality, grind the material through the machine molding Products with high density, good strength, no porosity ratio weight. Energy efficient, high volume of output, the product is used for iron ore process tailings recovery, not to slag the loss of effective resources can be fully utilized.
Features of the wet pan mill:
1.The wet grinding mill is a new mill, small investment, high yield, the production cost is low, good benefits.
2. Grind gold machine's easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.
3.The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.
4. The ores and water are evenly mixed, which makes the pulp density and other indexes stable.
5.After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink to the bottom of grinding base, being grinded continuously till they reach the required fineness.
6.The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over-grinding and uneven fineness, which helps create better condition for next working process.
Working principle of the wet pan mill:
1.Firstly the motor will transmit the motive power to reduction gears,under the drive of reduction gears it
passing through large vertical spindle,then the power cabient transfers to above whippletree.
2.The whiffletree pulls the two runner wheels rotation,runner wheels not only revoluting around
the large vertical spindle but also could retating by themselves.
3.After adding into grinding materials, the materials are under the extrusion of grinding roller weight to revoluting and rotating
with runner wheels,when twisting form huge friction force with grinding base. And after suffering
repeated extrusion, the materials can be crushed thoroughly.
Main technical parameter of the wet pan mill:
Model |
Specification |
Input size(mm) |
Rotate Speed (r/min) |
Powder(kw) |
Weight(t) |
1600A |
1600×400×200×500±20mm |
30mm |
20-22 |
25KW |
14.5 |
1500A |
1500×350×200×460±20mm |
20-22 |
22KW |
13.5 |
|
1500B |
1500×350×150×460±20mm |
20-22 |
22KW |
12.3 |
|
1500C |
1500×300×150×420±20mm |
20-22 |
22KW |
11.3 |
|
1400A |
1400×250×150×350±20mm |
16-18 |
18.5kw |
8.5 |
|
1400B |
1400×250×150×350±20mm |
21-23 |
18.5kw |
8.5 |
|
1350A |
1350×250×150×350±20mm |
16-18 |
18.5kw |
8 |
|
1350B |
1350×250×150×350±20mm |
21-23 |
18.5kw |
8 |
|
1300A |
1300×250×150×350±20mm |
16-18 |
15kw |
7.5 |
|
1300B |
1300×250×150×350±20mm |
21-23 |
15kw |
7.5 |
|
1200A |
1200×200×80×250±20mm |
17-19 |
7.5kw |
5.5 |
|
1200B |
1200×200×80×250±20mm |
23-25 |
7.5kw |
5.5 |
|
1100A |
1100×200×80×250±20mm |
17-19 |
7.5kw |
5 |
|
1100B |
1100×200×80×250±20mm |
23-25 |
7.5kw |
5 |
|
1000 |
1000×200×80×250±20mm |
13-15 |
5.5kw |
4.5 |
