China new type high efficiency motor vibrating feeder machine for sale
- 35 Set / Sets per Month
- shanghai or qingdao
- T/T L/C D/P D/A Credit Card PayPal
- ZSW850 Electromagnetic Mining Vibrating Grizzly Screen Feeder Price
- Hanging Vibrating Feeder Screw ZSW Series Vibration Feeder For Quarry Stone
- Coal Mining Industry Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
- Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Mining Selecting Vibratory Feeder Industrial For Sale
Product Details
Condition: | New | Application: | metallurgy,coal mine, construction materials etc | Power Type: | Electric |
Capacity(t/h): | 260-450 | Place of Origin: | Henan, China | Brand Name: | lanji |
Model Number: | GZD-1200*4500 | Power(W): | 15kw | Dimension(L*W*H): | 4450*2050*1550(mm) |
Weight: | 4.5t | Certification: | ISO | Warranty: | 1 year |
After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
motor vibrating feeder1.high efficiency
2.good performance
3.reliable operation
4.energy saving and strong durable
China new type high efficiency motor vibrating feeder machine for sale

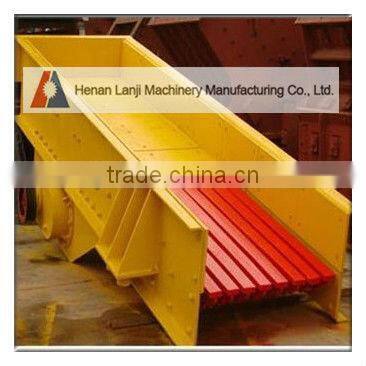

Vibrating feeder
Vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building materials, chemicals, etc..
Vibrating feeder working principle:
GZD series vibrating feeder consists of vibrating body, vibration exciter, spring pedestal, transmission device, etc. The vibration of vibrating feeder is caused by vibration exciter, which consists of two eccentric shafts (driving shaft and driven shaft) and gear. The motor drives the driving shaft through V belt, and the gear of driving shaft occludes the driven shaft and causes it to move. The driving and driven shafts move in opposite direction, and the vibrating body begins to vibrate, the materials flow constantly, and the aim of transmission is accomplished.
Technical data:
Model | Funnel size(mm) | Max feed size(mm) | Production capacity(T/H) | Power(kw) | Weight(t) | Overall dimensions(mm) |
GZD850*3000 | 850*3000 | 400 | 80-120 | 7.5 | 3895 | 3110*1800*1600 |
GZD960*3800 | 960*3800 | 500 | 120-210 | 11 | 3980 | 3850*1950*1630 |
GZD1100*4200 | 1100*4200 | 580 | 200-430 | 15 | 4170 | 4400*2050*1660 |
GZD1100*4900 | 1100*4900 | 580 | 280-500 | 15 | 4520 | 5200*2050*1700 |
GZD1300*4900 | 1300*4900 | 650 | 450-600 | 22 | 5200 | 5200*2350*1750 |
