Stable temperature gypsum rotary dryer
- 60 Set / Sets per Month
- Qingdao Shanghai
- T/T D/P D/A
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Lanji | Model Number: | 1800*12000 | Voltage: | 380v |
Power(W): | 18.5kw | Dimension(L*W*H): | all | Weight: | 22.83t |
Certification: | ISO9001 | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

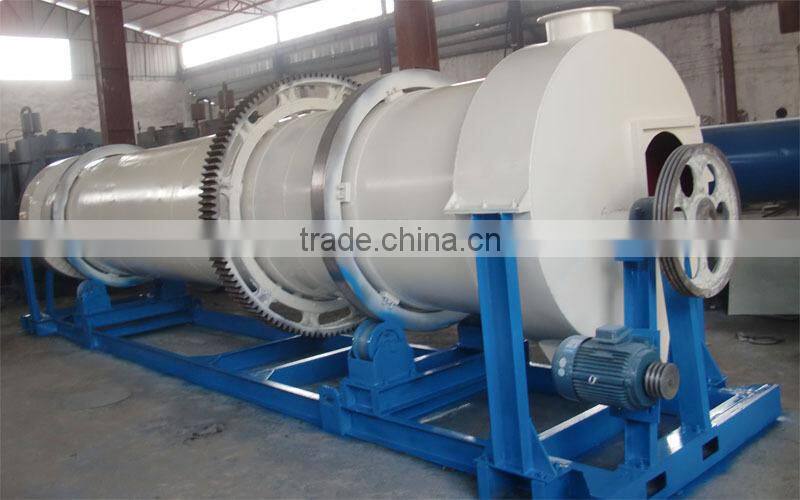

Stable temperature gypsum rotary dryer
1. Brief introduction of rotary Dryer
Rotary Dryer is widely used for drying slag limestone, coal powder, slag, clay, etc. Dryer can also be used in Carbon steel steam tube rotary dryer with best price building materials, metallurgy, chemical and cement industry. Dryer mainly consists of dryer body, raw material feeding plate, driving and supporting device, seal ring, etc. Dryer can be generally divided into four types, they are: rotary dryer, triple-drum dryer, indirect heat transfer dryer, vertical dryer. Dicferent kind of dryer has its own characters and advantages, the specific choice of a special dryer depends on differents elements.
2. rotary dryer main character
1. rotary dryer resistance overload ability strong, large quantity, fuel consumption less, dry cost is low;
2.adopt co-current drying method, smoke and wet materials by the same side into the dryer, can use obtained high temperature flue gas evaporation strength, dryer outlet temperature of low and high thermal efficiency,
3. According to different material properties change operation parameters, make the material in the dryer cylinder body can form a stable all broken fabrics act, qualitative heat more fully,
Technical Data:
Model (mm) | Inclination (%) | rotation speed (r/min) | input temperature | motor power (kw) | output(t/h) | weight(t) |
Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Φ2800×15000 | 3-5 | 1.5-5 | ≤800 | 40 | 20-35 | 72.5 |
Φ2800×18000 | 3-5 | 1.5-5 | ≤800 | 40 | 25-35 | 75 |
Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 28-40 | 80 |
Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-45 | 110 |
