clay dryingmachine working principle:
The lifting plates which are arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.

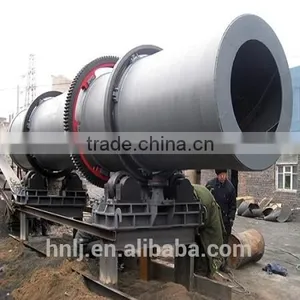

clay drying machine structure:
Rotary dryer is composed of 1.shell body2.front tyre3.rear tyre4.gears5.Thrust rollers 6.support rollers 7.Pinion gears 8.Dischargeing parts 9.Lifting blades 10.Speed reducer 11.Motor 12.Air-windflow 13.input and output device.And accoring to the customer’s requirements,we can match belt conveyor or bucket elevator,cyclone separate,draught fan,etc.
clay drying machine technical parameters:
Model (mm) |
Inclination (%) |
rotation speed (r/min) |
input temperature |
motor power (kw) |
output(t/h) |
weight(t) |
Φ1000×10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200×10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200×12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500×12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
Φ1800×12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
Φ2200×12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
Φ2200×18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
Φ2200×20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
Φ2400×20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
Φ2800×15000 |
3-5 |
1.5-5 |
≤800 |
40 |
20-35 |
72.5 |
Φ2800×18000 |
3-5 |
1.5-5 |
≤800 |
40 |
25-35 |
75 |
Φ3000×20000 |
3-5 |
1.5-5 |
≤800 |
55 |
28-40 |
80 |
Φ3000×25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-45 |
110 |

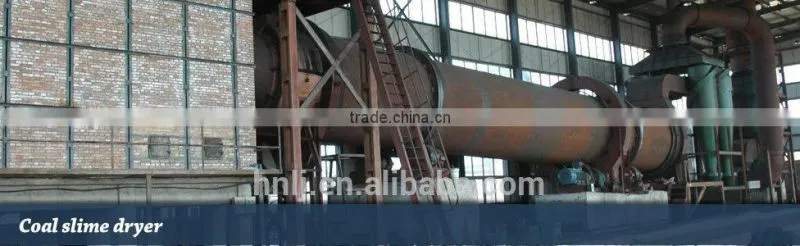

clay drying machine working plant:
Customer visiting:
