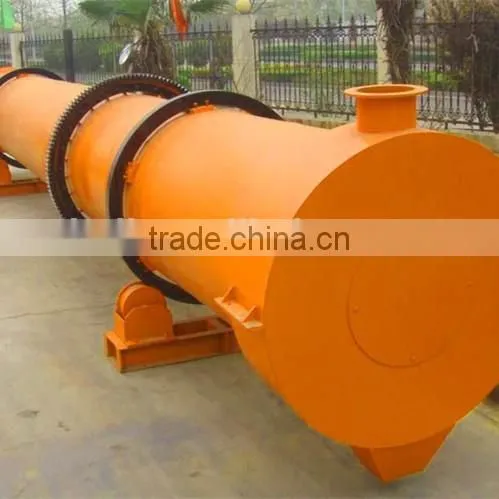

Rotary drum dryer for quartz :
Rotary Drum Dryer is also known as drum drying equipment or tumble dryer is the most common and widely a dryer equipment mining equipment.
Rotary dryer application Fields : Suitable for dry metal and non-metallic mineral magnetic, heavy, slime floating concentrate clay and cement industry and the coal industry
Rotary drum dryer main character
rotary dryer resistance overload ability strong, large quantity, fuel consumption less, dry cost is low;
adopt co-current drying method, smoke and wet materials by the same side into the dryer, can use obtained high temperature flue gas evaporation strength, dryer outlet temperature of low and high thermal efficiency,
According to different material properties change operation parameters, make the material in the dryer cylinder body can form a stable all broken fabrics act, qualitative heat more fully,
How The Rotary Dryer Works:
Consolidating, roasting and drying are achieved by passing the material through a rotating cylinder. Steam pipes are placed around the rotating cylinder and covered by the steam layer. The raw material is roasted and dried by directly contact with the steam layer or hot steam generated from the steam pipe. The surface of the material dried is perfectly smooth and neat, allowing the high quality dried material.
Rotary drum dryer main technical data:
Model (mm) | Inclination (%) | rotation speed (r/min) | input temperature | motor power (kw) | output(t/h) | weight(t) |
Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Φ2800×15000 | 3-5 | 1.5-5 | ≤800 | 40 | 20-35 | 72.5 |
Φ2800×18000 | 3-5 | 1.5-5 | ≤800 | 40 | 25-35 | 75 |
Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 28-40 | 80 |
Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-45 | 110 |
Rotary drum dryer flowchart:
