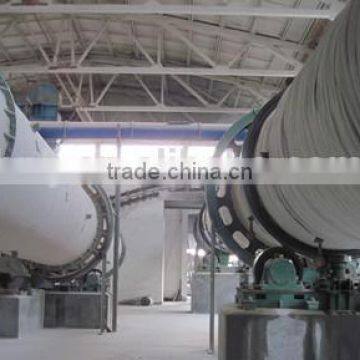

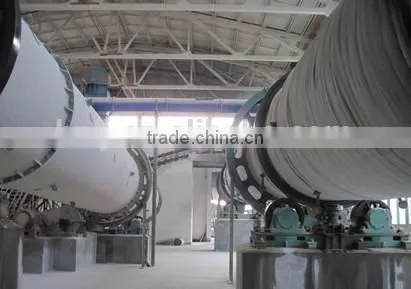

China Silica sand rotary drum dryer horizontal type:
The drier is used in metallurgy, mining, chemical plant, for drying metal concentrates, tail ore and grain. It is also conventional drying equipment in cement plant. This machine has a good applicability for material and can dry various materials.
It mainly consists of revolving part, raising stuff plate, driving device, seal ring and supporting device.
1. Brief introduction of the silica sand rotary Dryer
Rotary Dryer is widely used for drying slag limestone, coal powder, slag, clay, silica sand etc. Dryer can also be used in building materials, metallurgy, chemical and cement industry. Dryer mainly consists of dryer body, raw material feeding plate, driving and supporting device, seal ring, etc. Dryer can be generally divided into four types, they are: rotary dryer, triple-drum dryer, indirect heat transfer dryer, vertical dryer. Different kind of dryer has its own characters and advantages, the specific choice of a special dryer depends on differents elements.
2. silica sand rotary dryer main character
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .
4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .
5. The assorted combustion furnace is a type of energy-efficient and has the characteristics of smaller area ,easy regulation and equipped with greenhouse
3.silica sand rotary dryer main technical parameters:
Model (mm) |
Inclination (%) |
rotation speed (r/min) |
input temperature |
motor power (kw) |
output(t/h) |
weight(t) |
Φ1000×10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200×10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200×12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500×12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
Φ1800×12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
Φ2200×12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
Φ2200×18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
Φ2200×20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
Φ2400×20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
Φ2800×15000 |
3-5 |
1.5-5 |
≤800 |
40 |
20-35 |
72.5 |
Φ2800×18000 |
3-5 |
1.5-5 |
≤800 |
40 |
25-35 |
75 |
Φ3000×20000 |
3-5 |
1.5-5 |
≤800 |
55 |
28-40 |
80 |
Φ3000×25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-45 |
110 |
