Top quality quartz rotary dryer with nice price for sale
Sand rotary Dryer Description:
Drier is a cylinder, its main body is a little bit slantwise, and the rotate speed can be adjusted within bounds. Wet raw materials are sent into cylinder, the materials are well-distributed and dispersed after be turned over by shovelling plate, then the materials contact with the hot air fully, the drying is accerlated. Shoveling plate can be selected to meet different materials
Dand rotary Dryer Application:

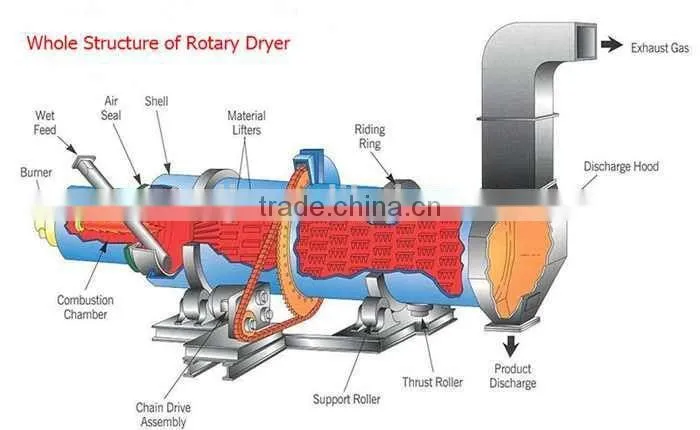

The Rotary dryer is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of limestone slag, coal powder, slag, clay stone and so on. This dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
Technical Data of sand rotary dryer:
Model (mm) |
Inclination (%) |
rotation speed (r/min) |
input temperature |
motor power (kw) |
output(t/h) |
weight(t) |
Φ1000×10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200×10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200×12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500×12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
Φ1800×12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
Φ2200×12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
Φ2200×18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
Φ2200×20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
Φ2400×20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
Φ2800×15000 |
3-5 |
1.5-5 |
≤800 |
40 |
20-35 |
72.5 |
Φ2800×18000 |
3-5 |
1.5-5 |
≤800 |
40 |
25-35 |
75 |
Φ3000×20000 |
3-5 |
1.5-5 |
≤800 |
55 |
28-40 |
80 |
Φ3000×25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-45 |
110 |
