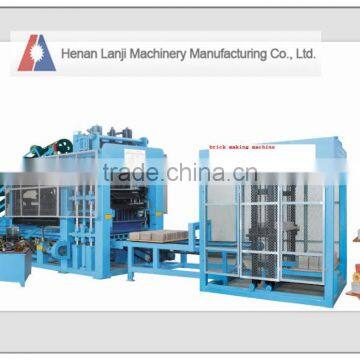

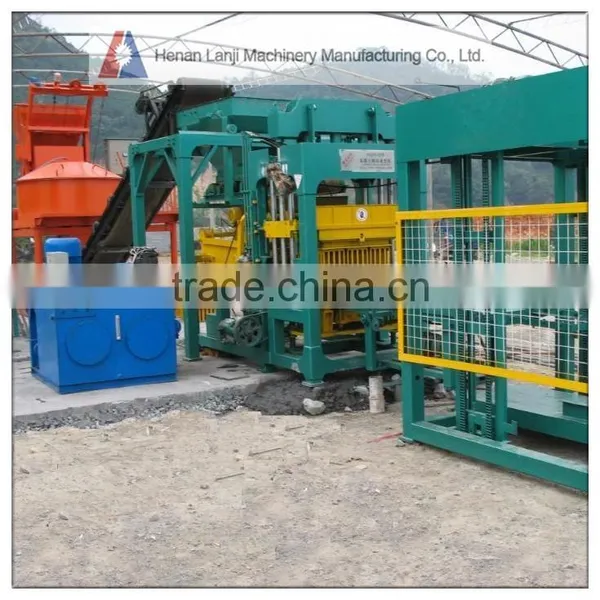

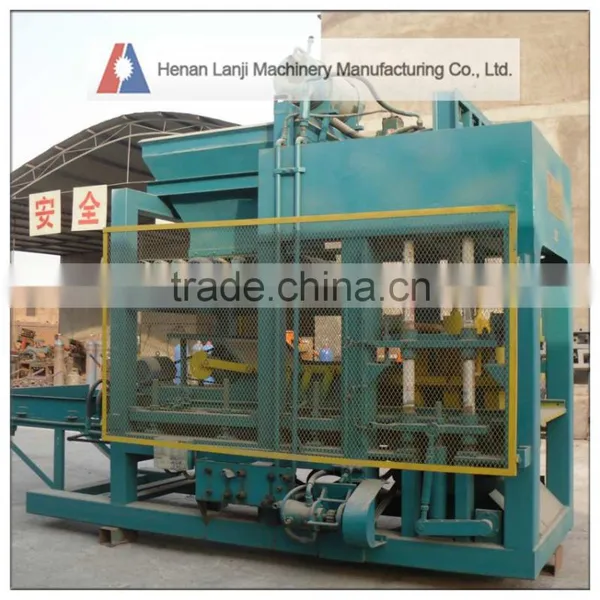

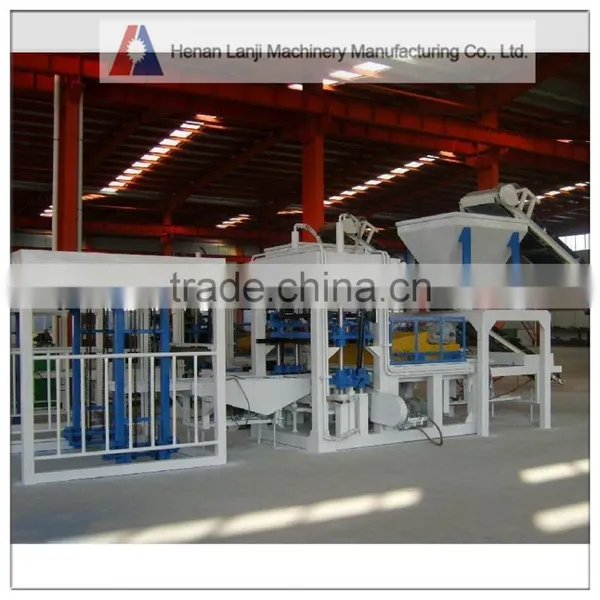

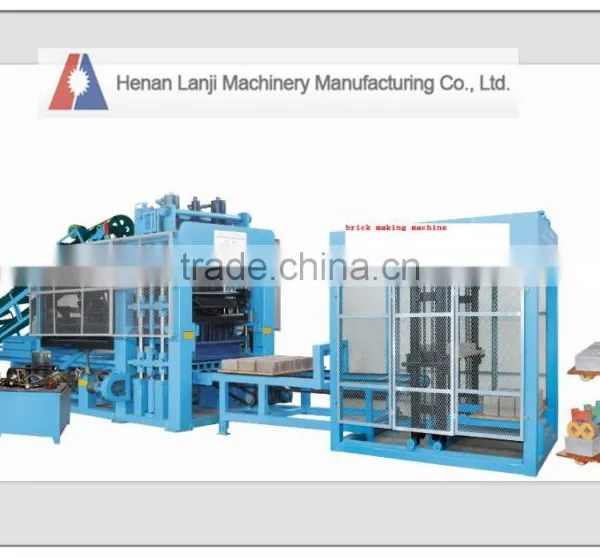

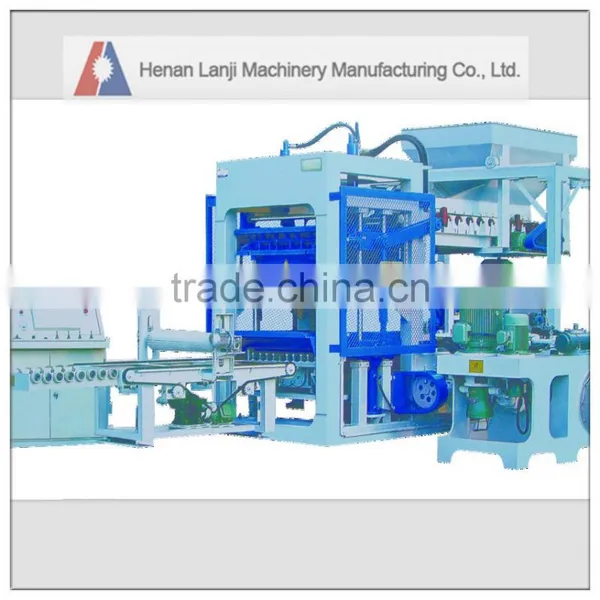

Top Quality Automatic Concrete Brick Machine From China

Top Quality Automatic Concrete Brick Machine From China thumbnail-1
Top Quality Automatic Concrete Brick Machine From China thumbnail-2
Top Quality Automatic Concrete Brick Machine From China thumbnail-3
Top Quality Automatic Concrete Brick Machine From China thumbnail-4
Top Quality Automatic Concrete Brick Machine From China thumbnail-5
Top Quality Automatic Concrete Brick Machine From China thumbnail-6
Top Quality Automatic Concrete Brick Machine From China photo-1
Top Quality Automatic Concrete Brick Machine From China photo-2
Top Quality Automatic Concrete Brick Machine From China photo-3
Top Quality Automatic Concrete Brick Machine From China photo-4
Top Quality Automatic Concrete Brick Machine From China photo-5
Top Quality Automatic Concrete Brick Machine From China photo-6
US$ 9,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Paving Block Making Machine, automatic concrete brick machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Paving Block Making Machine, automatic concrete brick machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 3600 pc /h
Place of Origin Henan, China
Brand Name Lanji
Model Number QT6-15
Voltage 220/380V
Power 29
Dimension(L*W*H) 3.5*1.8*2.3 M
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Top quality automatic concrete brick machine  from China


Application of QT 6-15 Automatic Block Making Machine:


1. This model is a multi-purpose machine. It can manufacture wall bricks, heat-insulating bricks, grass pavers, square pavers, slop protection pavers, road shoulder pavers, curbs, etc by simply changing the mould. When pressured, transform the excessive oil into vibration force. Computers control all directional vibration, frequency conversion, braking and cancellation of vibration energy consumption. Low frequency feeding, high frequency vibration and template suppressing vibration make the concrete fully liquefied and exhausted within two to three seconds. With the use of new technology, QT6-15 can produce 0.45 m2 blocks, 15pcs perforated bricks within 15 seconds, and QT8-15 model can produce 0.56 m2 blocks, 20pcs perforated bricks within 15s, notably raising working efficiency.

2. The model is designed with a device separating material storage and material distribution. Storage is photo-electrically controlled and material s is distributed as needed. Storage hopper is separated from vibration source to avoid premature liquefaction of some concrete due to the effect of aftershock Special arch device ensures rapid and even distribution of materials, a swinging distribution device is fixed in the hopper and the materials are evenly sent to the mould box.

3. The imported electric appliances, hydraulic elements and specially made oil box cooling system ensure fault-free operation of both controlling and hydraulic systems.

4. Use human-computer interface and Chinese menu. The parameter is adjustable any time in accordance with the change of products and materials.

Specifications of QT 6-15 Automatic Block Making Machine:

Forming cycle(s)

Pallet pattern(mm)

stalled capacity(kw)

Weight(t)

and forming machine dimension and size.(mm)

12-18

850×680×40

29

8.6

6670×2245×2780

Theoretical Output Table:



Product specification(mm)

block number each pallet

Block/hr

Block/8hr

Block

390×190×190

6

1440

11520

Multi hole brick

240×115×90

15

3600

28800

Standard brick

240×115×53

30

7200

57600

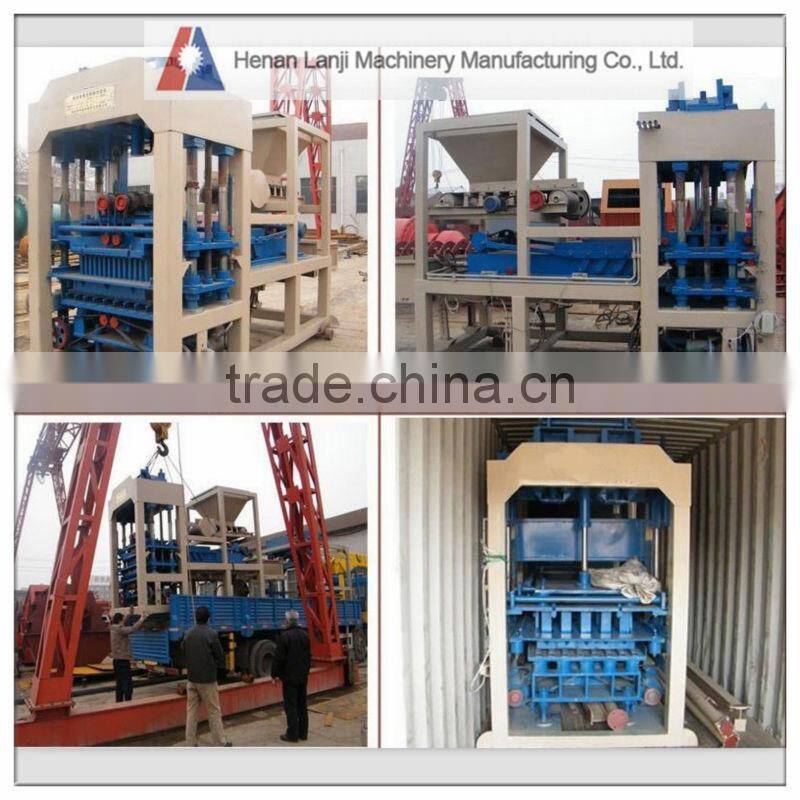

 Top quality automatic concrete brick machine from China

Top quality automatic concrete brick machine from China



Top quality automatic concrete brick machine from China



Thanks so much for you taking time to browse our automatic concrete brick machine. Any further questions, please feel free to contact us and we are ready to so service for you!



Fast contact ways:



1.      Mobile phone: 0086-13613714234



2.      Telephone: 0086-371-67833678



3.      Skype: gaoyan906820



4.      Contact name: Nancy Gao





Top quality automatic concrete brick machine from China
