Manufacturer direct selling concrete hollow block making machine for sales
Henan Lanji Machinery Manufacturing Co.Ltd. has specialized in Block making machine more than 20 years , with the best quality, design and the absolutely competitive price.

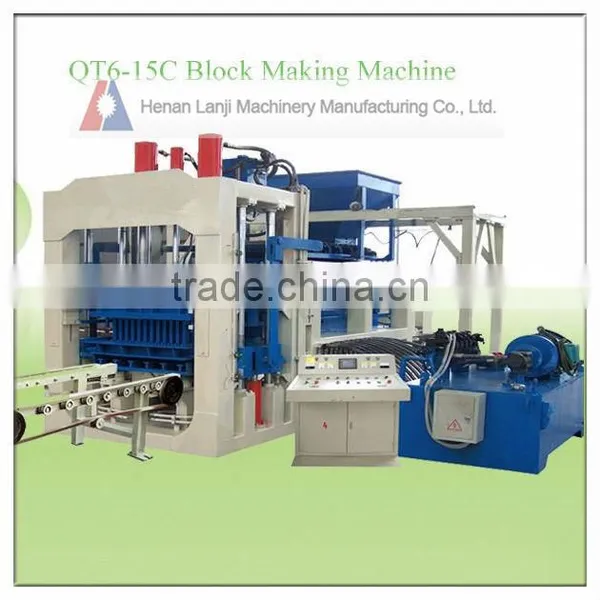

QT6-15 hollow brick making machine main component
1. Recycle material feeding system: Economize in material for different or same density products.
2. Reliability design of the The machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.
3. Mould frame are made of 55# Manganese steel, and tamper head is made of 16# manganese steel. After carburizing, the hardness can reach 60 degrees, lifespan can use over 100000 times. Standard brick mould can double-side use, lifespan can use over 120000 times.
4. Hydraulic parts and seals parts on hydraulic pressure system are from Japan or Taiwan, which protects pressure discharging or leakage.
5. Multi use; Strong performance; The many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.
QT6-15 hollow block making machine technical parmeter
Type |
Tech Data |
Type |
Tech Data |
Forming Cycle Compressed Earth Brick Block Making Machine |
15-20 seconds |
Usage Extension |
Wall Block/Paving Brick |
Pressure of Hydraulic Cylinder |
8 Mpa |
GW |
6200 KG |
Vibration Type |
Table Vibration |
Size |
5120×2000×2800 mm |
Power of Vibration Motor |
2×10 KW |
Production Capacity 400×200×200 mm |
6 pcs/pallet 1000~1200 pcs/hr |
Power of Forming Machine |
32 KW |
Production Capacity 200×100×60 mm |
21 pcs/pallet 3000~3100 pcs/hr |
Pallet Size |
880×680 MM |
Production Capacity 240×115×90 mm |
15 pcs/pallet 2700~3600 pcs/hr |
QT6-15 hollow concrete brick making machine capacity
Model of the Block Making Machine |
QT6-15 Block Making Machine |
||||
|
Block Size L*W*H mm |
Pcs/Mould |
Pcs/Hr |
M³/Hr |
Pcs/Day |
M³/Day |
240×115×90 |
15 |
2700-3600 |
6-9 |
21600-28800 |
48-72 |
390×190×190 |
6 |
1080-1440 |
15-20 |
8640-11520 |
120-160 |
400×100×200 |
10 |
1800-2400 |
14-19 |
14400-19200 |
112-152 |
400×200×200 |
6 |
1080-1440 |
17-23 |
8640-11520 |
136-184 |
|
Brick Size L*W*H mm |
Pcs/Mould |
Pcs/Hr |
m2/Hr |
Pcs/Day |
m2/Day |
200×100×60 |
21 |
3024-3780 |
60-75 |
24192-30240 |
484-605 |
225×112.5×60 |
15 |
2160-2700 |
55-68 |
17280-21600 |
437-547 |
Thanks so much for you taking time to browse ourconcrete hollow block making machine for sales. Any further questions, please feel free to contact us and we are ready to so service for you!
