Home > Products > Concrete block making machine > Automatic sand Brick Making Machine design
Automatic sand Brick Making Machine design
- 30 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Place of Origin: | Henan, China | Model Number: | QT6-15 | Voltage: | 220/380V |
Power: | 40kw | Dimension(L*W*H): | 3700*1620*2372mm | Certification: | ISO |
Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

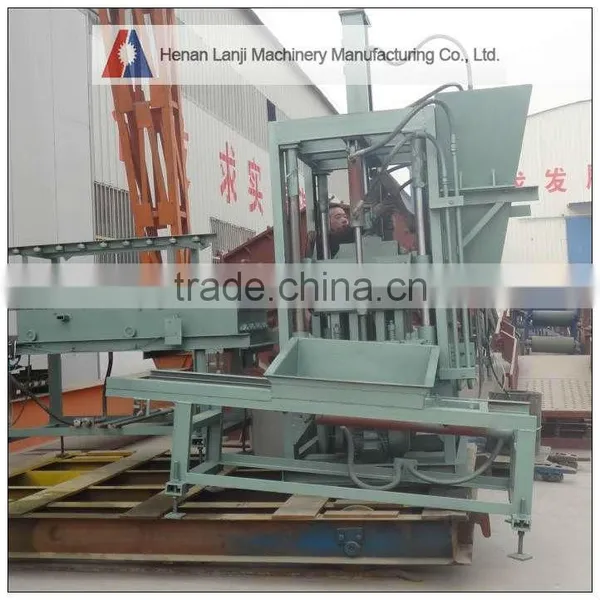

Automatic sand Brick Making Machine
1. Introduction of Automatic Concrete Brick Making Machine
1.Four-bar guidance ensure the accurate action of pressure head and mould.
2.The body of machine produced by casting of high precision ,intensity and special welding material, it features by high rigidity,good resistance to vibration and long service life.
3.Electrical system using PLC controller with data entry devices export control system,including security logic control and fault diagnosis system.
4.Vibrating table with press makes blocks. To-and-fro guiding feeder feeds the material. It is of short moulding cycle and high production efficiency. The brick is of high intensity and accurate dimension.
5.Using electromechanical integration technology, make sure the equipment running stably and low rate of waste.
6.By changing mould, this machine can produce every sort of blocks such as hollow block, kerbstone, pavior brick, grassed brick and slope block. It can produce color pavior blocks with special device.
2: Technical parameters and Production capacity of QT6-15
Power | 40.5KW | Weight | 9T |
Dimension | 3700*1620*2372mm | Pallet Size | 950×660×30mm |
Moulding Cycle | 15-25Seconds/cycle | Vibration Mode | Board Vibration |
Vibration Force |
80KN | Standard | JC/T920-2003 |
QT6-15 Productivity | |||
High | Brick | 34Pics/Mould | 65280Pics/shift(8hour) |
Hollow Block | 16Pics/Mould | 30720Pics/shift | |
Hollow Block | 6Pics/Mould | 11520pics/shift |
3:Related Informations:
1. Area: Workshop area: 600sq.m,all factory area 4000-6000sq.m, the bigger, the better.
2. Workers : 6-7.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. water consumption per day:8T/day
After sale services:
1.One year warranty for the critical component.
2.Provide installation and debugging.
3.After one year, we can help you to maintain the machine and the accessories are provided only on the cost rice.
4.We can help you train the operator and mechanic.
5.We can help you to design the production line, workshop and provide turn-key project.
Contact Us
- Henan Lanji Machinery Manufacturing Co., Ltd.
- Contact nameVictor Cheng
- Phone0086-371-67833678
- AddressWest 4th ring road and hua gong road crossroads. 50m westward. High-Tech Development Zone ,Zhengzhou, China Zhengzhou,Henan
