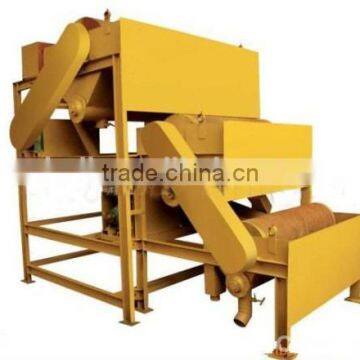

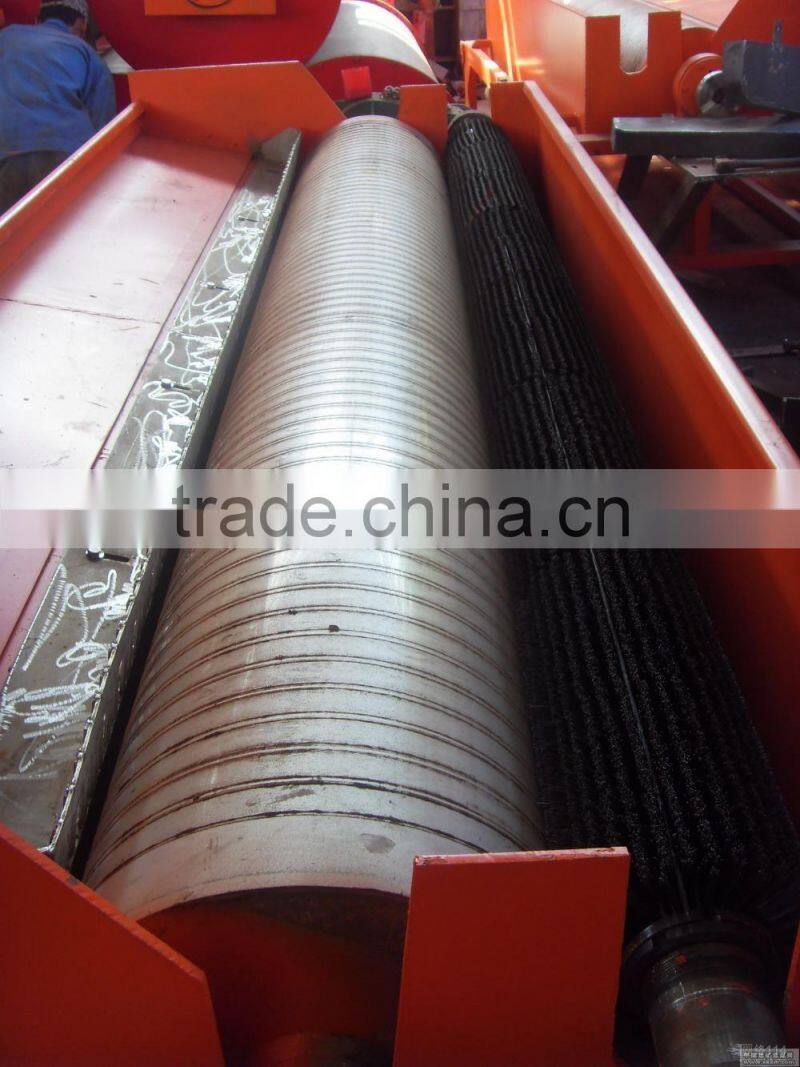

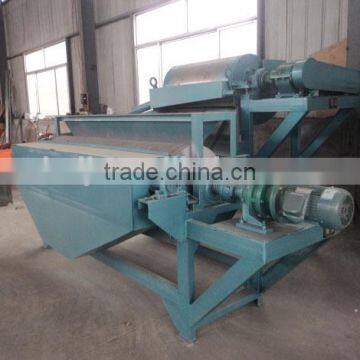

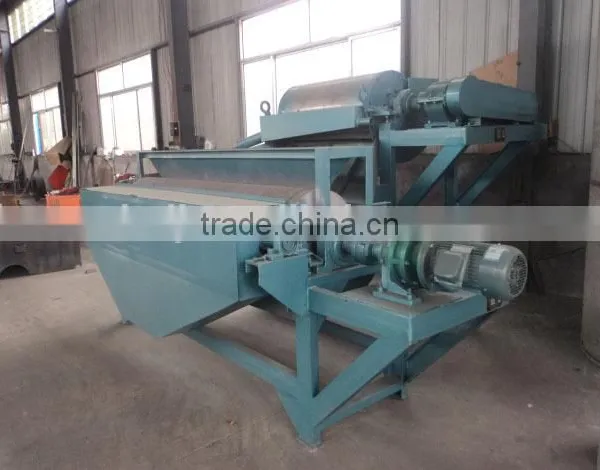

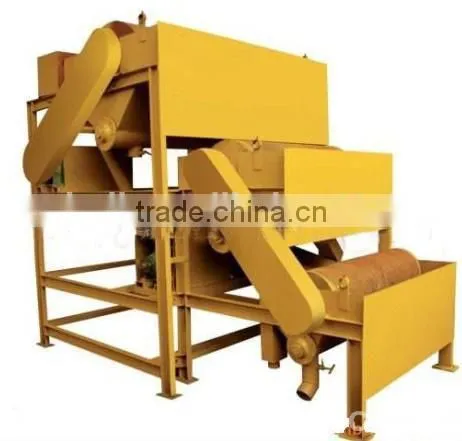

Silica sand high intensity dry &wet magnetic separator with 13000-15000Gauss:
Magnetic Separator is used to separate magnetite,hematite,limonite,pyrrhotite,ilmenite smaller than 3 mm in wet way.It is also used to separate iron in coal,nonmetallic ore,construction industry,etc.We can provide magnetic separators of forward flow,semi counter flow and counter flow types according to customers’ request.
The Advantages and Benefits of Magnetic Separator:
1) Short magnetic circuit,
2) little magnetic flux leakage
3) high magnetic intensity
4) low energy consumption
2. Working principle of magnetic separator
Slurry enters chute through ore tank firstly, and then separating zone by waterpower.Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged into concentrate box by water effectGangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
3. Features of magnetic separator
1).High magnetic intensity.
2).Low energy consumption.
3).Good beneficiating efficiency.
4).Simple structure and easy maintenance.
4. Main technical parameter
Specifications of magnetic roller(mm)(Diameter×length) | Magnetic field intensity (Gauss) | Feeding size | Processing capacity (t/h) | Power (Kw) | Weight (Kg) |
220×1500 | 13000-20000 | ≤20mm | 6-10 | 2.2 |
|
220×1800 | 8-12 | 3 |
| ||
380×1500 | 8-12 | 4 |
| ||
380×2000 | 11-16 | 5.5 |
| ||
500×2000 | 15-20 | 7.5 |
| ||
500×2500 | 20-30 | 11 |
