2015 Long using life automatic aac block machines with installation service
- 40 Set / Sets per Month
- Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Other, light weight concrete block, automatic aac block machines | Brick Raw Material: | Sand |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 30,000 to 200,000 cubic meters per year | Place of Origin: | Henan, China | Brand Name: | Lanji |
Model Number: | customization | Voltage: | 380V | Power: | 100-900 |
Dimension(L*W*H): | 50m*20m*30m | Certification: | ISO9001 | Warranty: | 1.5 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2015 Long using life automatic aac block machines with installation service

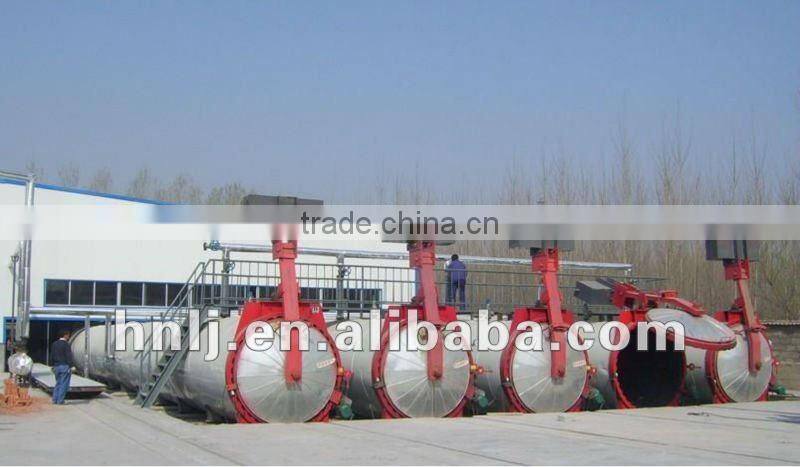

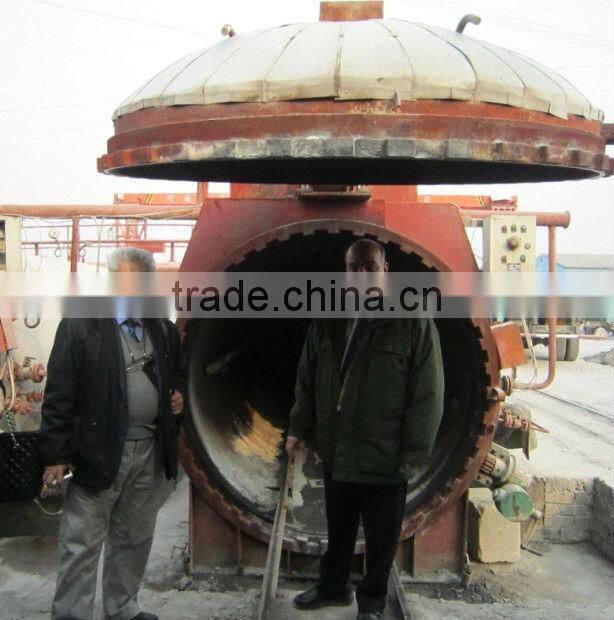

Autoclave aerated concrete block machine:
AAC Machine is horizontally set, the cover is made of a 16mnr steel plate, the flanges used in the cover and body of the machine is forged from a 16mn steel bar. Strict non-destructive Testing and heat treatment should be performed to the welding lines in the pressure sustaining parts according to relevant specifications.
Features:
1 Product weight is according to 600 kg/m3 to control.
2 Annual capacity 200,000M3.
3 Set raw material proportion: cement 6.5%, raw lime 23%, fly ash 68%, gypsum 3%, aluminum paste powder 350g/M3.
4 Water and material rate 0.631
5 One mould product 2.88M3
6 Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
7 Casting slurry temperature 38-42 degree
8 body quiet stop. Time is 1.5-2.5housr, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa
9 Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.
- Cement lime fly ash style aerated block raw material proportion
Specification:
name | unit | Cement lime fly ash |
flash | % | 65-70 |
cement | % | 6-15 |
lime | % | 18-25 |
gypsum | % | 3-5 |
Aluminum powder paste(600kg/m3) | 1/10000 | 8 |
Water & material rate |
| 0.60-0.65 |
Casting system | OC | 36-40 |
Aluminum mixing time | S | 30-40 |
11. Cement lime Sand style aerated block raw material proportion
Name | Unit | Cement Lime Sand |
Sand | % | 55-65 |
Cement | % | 10-20 |
Lime | % | 20-30 |
Gypsum | % | 2-3 |
Aluminum powder paste(600kg/m3) | 1/10000 | 8 |
Water & material rate |
| 0.65-0.75 |
Casting system | OC | 35-38 |
Aluminum mixing time | S | 30-40 |
Our factory is professional manufacturer of autoclaved aerated concrete (AAC) plants for more than 10 years, and we can supply complete set of autoclaved aerated concrete plant with capacity of 30 000m³, 100 000 m³, 150 000 m³, 200 000 m³, 250 000 m³, 300 000 m³annually, including plant design, equipments installation, technical support, personal training, etc, and also can design and manufacture as per clients' requirement and so on.
Raw materials: cement, lime, sand (or fly ash), gypsum, aluminum powder, water.
This whole line needs about 4-8 40 feet containers.
We can send engineers to guide installation and train workers till the machine can work normally.
1. Please tell us your main raw material: sand ? fly ash?
2. Please tell us the annual output you need which arranges from 20,000CBM/Y to 300,000 CBM/Y.
Thanks so much for you taking time to browse our automatic aac block machines . Any further questions, please feel free to contact us and we are ready to so service for you!
